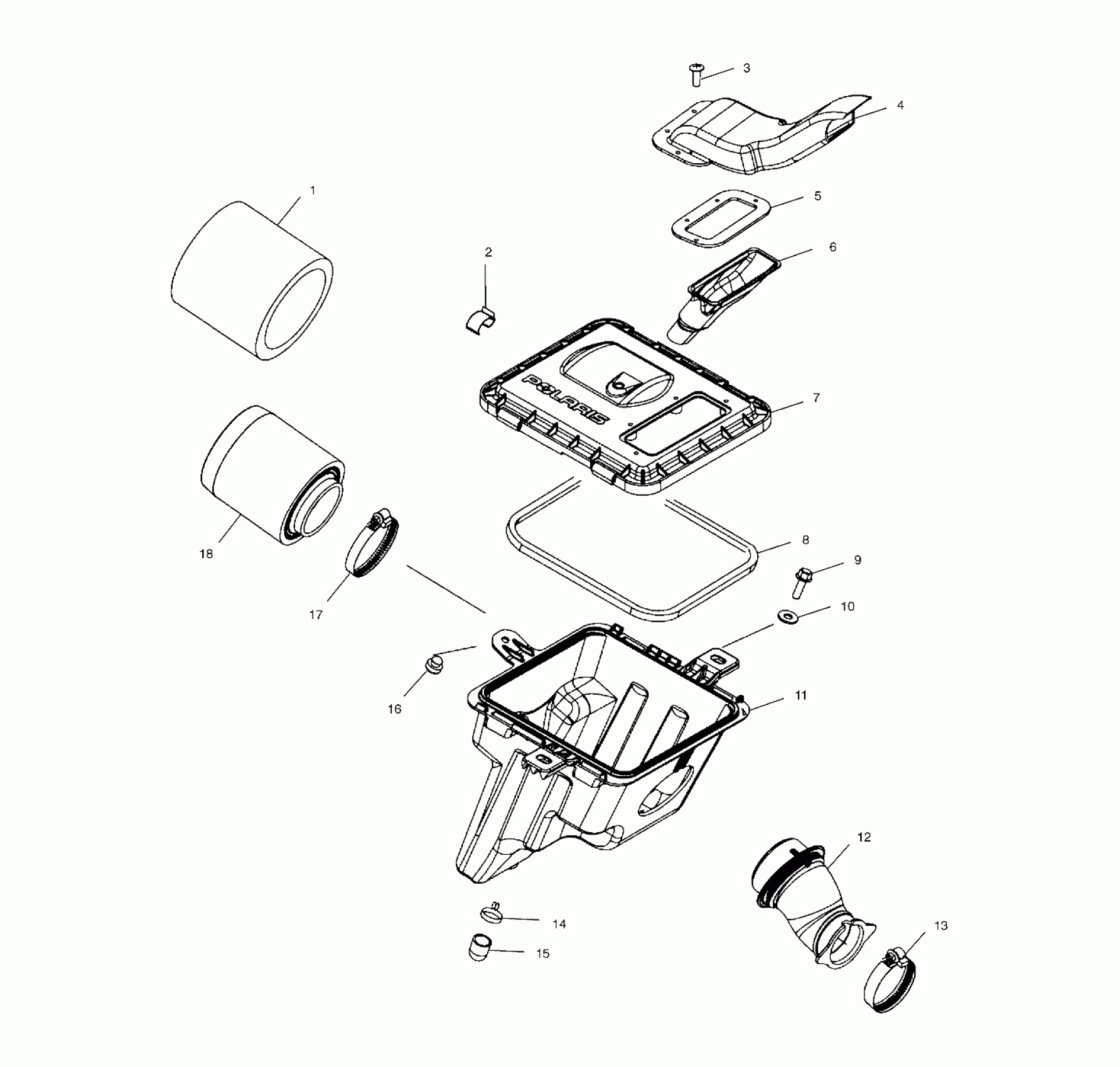

Polaris XPLORER 4X4 - A02CG25CA AIR BOX - A02CG25CA (4969856985A11) Diagram

#

Description
Price

1

Sleeve, Precleaner

5811660

$6.10

2

Clip, Airbox

7670117

$7.14

3

Screw

7517541

$4.76

4

Duct, Airbox Cover

5433052

Unavailable

5

Gasket, Intake

5411422

$6.59

6

Baffle, Air Inlet

5433740

Unavailable

7

Cover, Airbox

5433051

Unavailable

8

Seal, Cover

5811659

Unavailable

9

Screw

7515179

$2.38

10

Washer, Flat

7558301

$1.19

11

Airbox, Intake

5433050

Unavailable

12

Asm., Boot, Carb

1253389

Unavailable

13

Clamp

7080140

Unavailable

14

Clamp, Wire

7080865

Unavailable

15

Cap, Drain

5411765

Unavailable

16

Bumper, Rubber

5411766

Unavailable

17

CLAMP-BAND,NARROW 60-80MM

7080707

$3.17

18

Asm., Filter [Incl. 1]

1253355

$27.78
