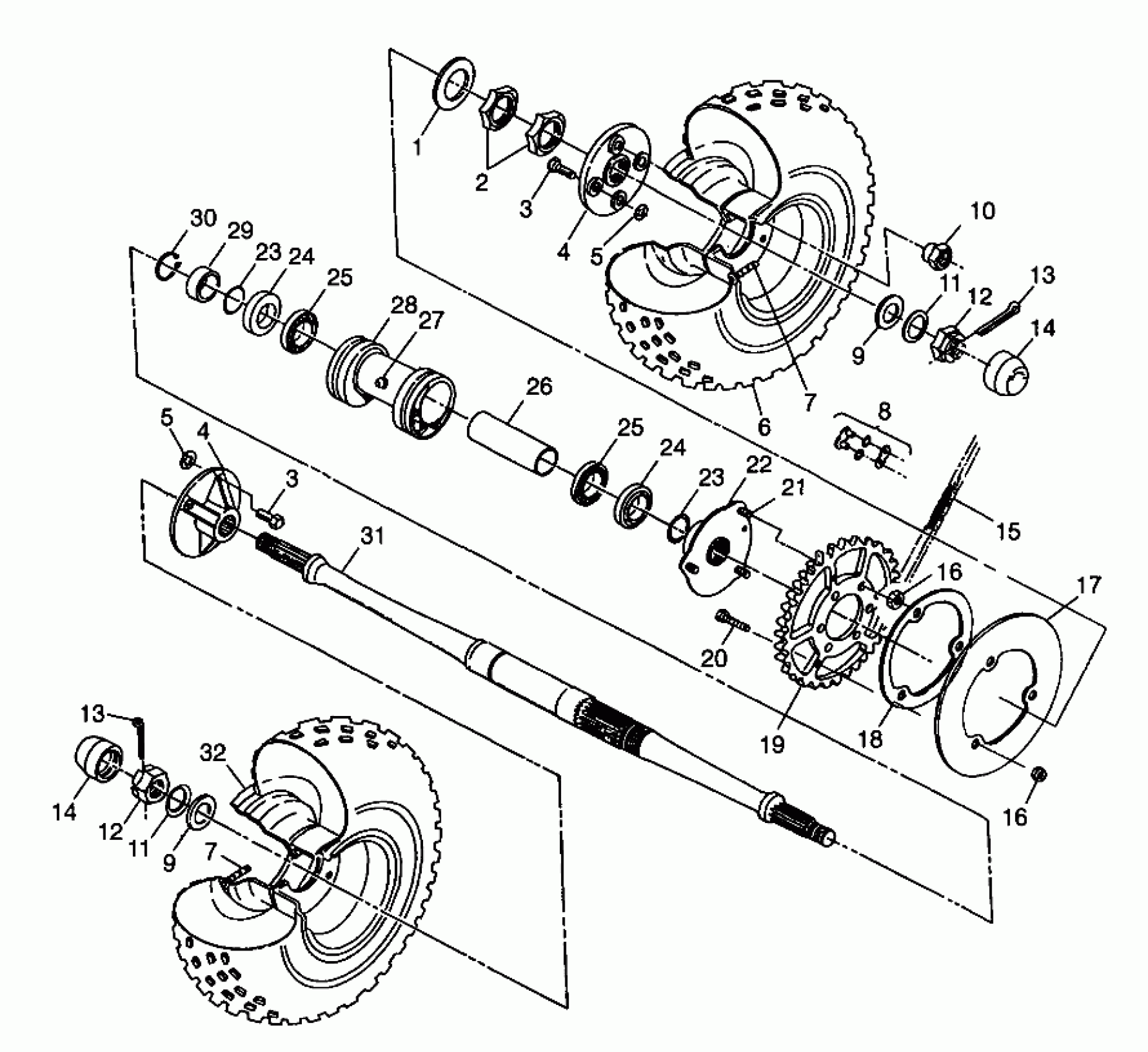

Polaris XPLORER 300 - W98CC28C REAR WHEEL DRIVE XPLORER 300 W98CC28C (4945264526C008) Diagram

#

Description
Price

1

WASHER(10)

7555764

Unavailable

2

Nut, Jam

5020468

Unavailable

3

BOLT, WHEEL(10)

7512673

$3.17

3

BOLT, WHEEL(10)

7512673

$3.17

4

KIT, MACH.HUB (Incl. 11)

2200341

$93.08

4

KIT, MACH.HUB (Incl. 11)

2200341

$93.08

5

PUSHNUT, BOLT(10)

7670081

$3.97

5

PUSHNUT, BOLT(10)

7670081

$3.97

6

TIRE,24X11-10,TITAN (24X11X10)

5411265

Unavailable

7

VALVE-RIM

1525017

$6.46

7

VALVE-RIM

1525017

$6.46

8

CONNECTOR LINK,CHAIN

3225026

$32.37

9

WASHER(10)

7555745

Unavailable

9

WASHER(10)

7555745

Unavailable

10

NUT, WHEEL(10)

7542714

$1.59

11

WASHER, CONE(10)

7555796

$7.94

11

WASHER, CONE(10)

7555796

$7.94

12

NUT, CASTLE(10)

7543005

Unavailable

12

NUT, CASTLE(10)

7543005

Unavailable

13

PIN, COTTER(10)

7661404

$4.76

13

PIN, COTTER(10)

7661404

$4.76

14

DUSTCOVER, HUB

5411164

$28.32

14

DUSTCOVER, HUB

5411164

$28.32

15

CHAIN,88P,(520 O-RING)

3224056-088

$145.70

16

NUT-LOCK(10)

7542439

$1.19

16

NUT-LOCK(10)

7542439

$1.19

17

GUARD,SPKT,42T

5211618-067

Unavailable

18

SPACER-SPROCKET GUARD

5630586

Unavailable

19

SPROCKET,40T,REAR

3222061

$204.99

20

BOLT(10)

7515540

$4.76

21

STUD(10)

7515513

$1.19

22

SPROCKET HUB ASM. (Incl. 21)

1520170

Unavailable

23

O RING, 1 5/16(10)

5410415

Unavailable

23

O RING, 1 5/16(10)

5410415

Unavailable

23

O RING, 1 5/16(10)

5410415

Unavailable

24

SEAL, REAR AXLE

3610013

Unavailable

24

SEAL, REAR AXLE

3610013

Unavailable

25

Bearing, Ball

3515501

$27.78

25

Bearing, Ball

3515501

$27.78

26

TUBE,BEARING SPACER

5010204

Unavailable

27

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

28

HOUSING, AXLE

5130663

Unavailable

29

SPACER,BEARING

5010206

Unavailable

30

RING, SNAP(10)

7710405

$4.76

31

AXLE, REAR

5020789

Unavailable

32

RIM-REAR, 8.5/10,SILVER

1520183-117

Unavailable
