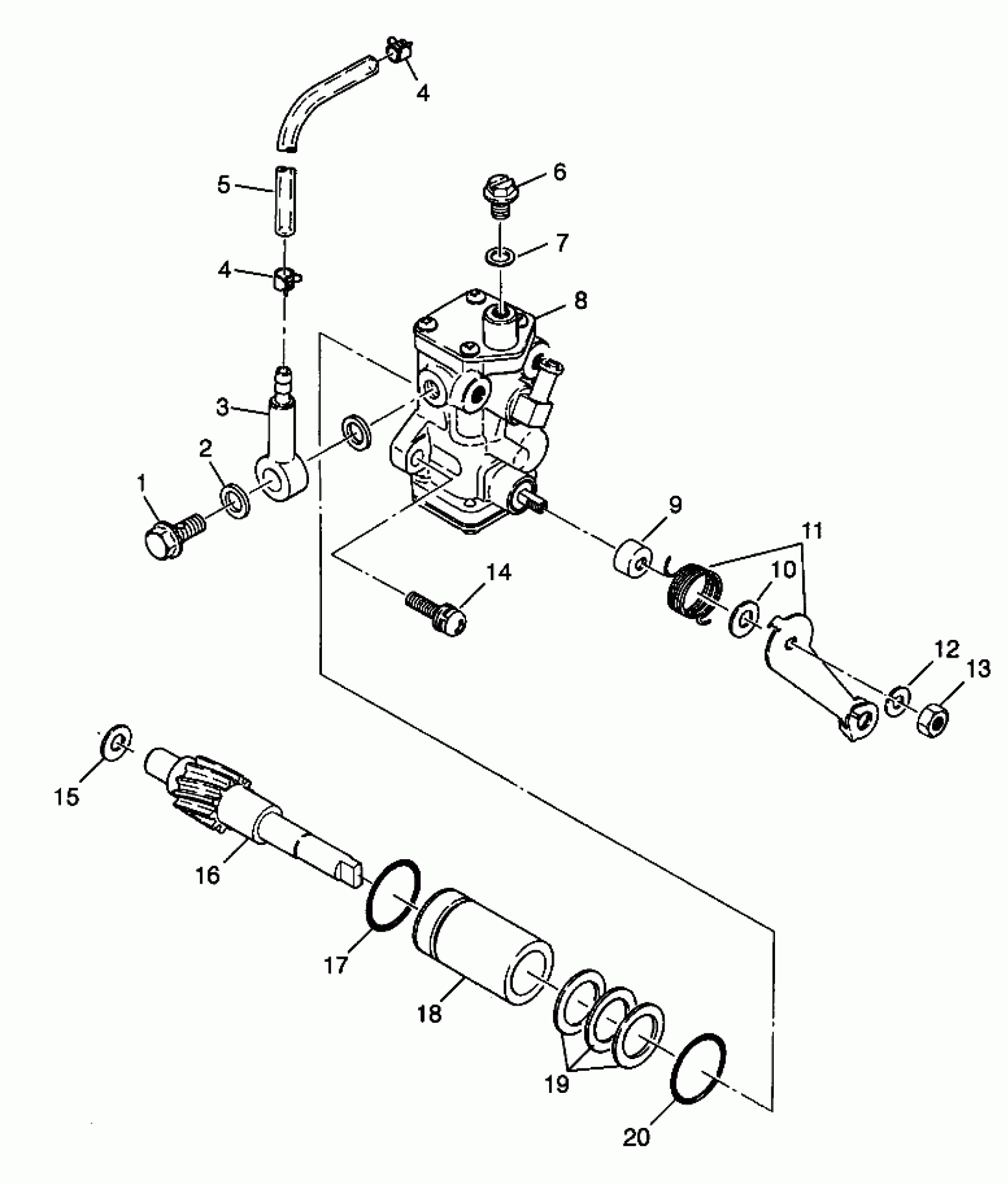

Polaris XPLORER 300 - W98CC28C OIL PUMP XPLORER 300 W98CC28C (4945264526D005) Diagram

#

Description
Price

1

BOLT

3084829

Unavailable

2

WASHER(10) Substituted by 7555998

3083138

Unavailable

3

VALVE,CHECK

3084828

Unavailable

4

CLAMP, HOSE

3240173

Unavailable

4

CLAMP, HOSE

3240173

Unavailable

5

PIPE #1,VINYL (170mm)

3084826

Unavailable

6

SCREW-AIR VENT

3083125

Unavailable

7

PACKING(10)

3083126

$4.03

8

PUMP ASM, OIL Substituted by 3085848 (Incl. 1-3, 6-13, 20)

3085620

Unavailable

9

Cap

3083758

$5.75

10

Collar, Camshaft

3083757

$4.39

11

LEVER,CONTROL

3085621

$34.79

11

SPRING & LEVER

3085622

Unavailable

12

WASHER-SPRING(10)

3083121

$299.99

13

NUT(10)

3083120

$3.19

14

SCREW&WASHER,(10)

3083783

$2.39

15

SPACER *

3083428

$1.59

16

Gear, Small

3083429

Unavailable

17

O RING

3083129

Unavailable

18

BUSHING(OIL PUMP)

3083353

$31.99

19

SPACER #3 (0.6mm)

3083673

Unavailable

19

SPACER #2 (0.3mm)

3083672

Unavailable

19

SPACER #1 (0.15mm)

3083671

Unavailable

20

O RING

3083127

Unavailable
