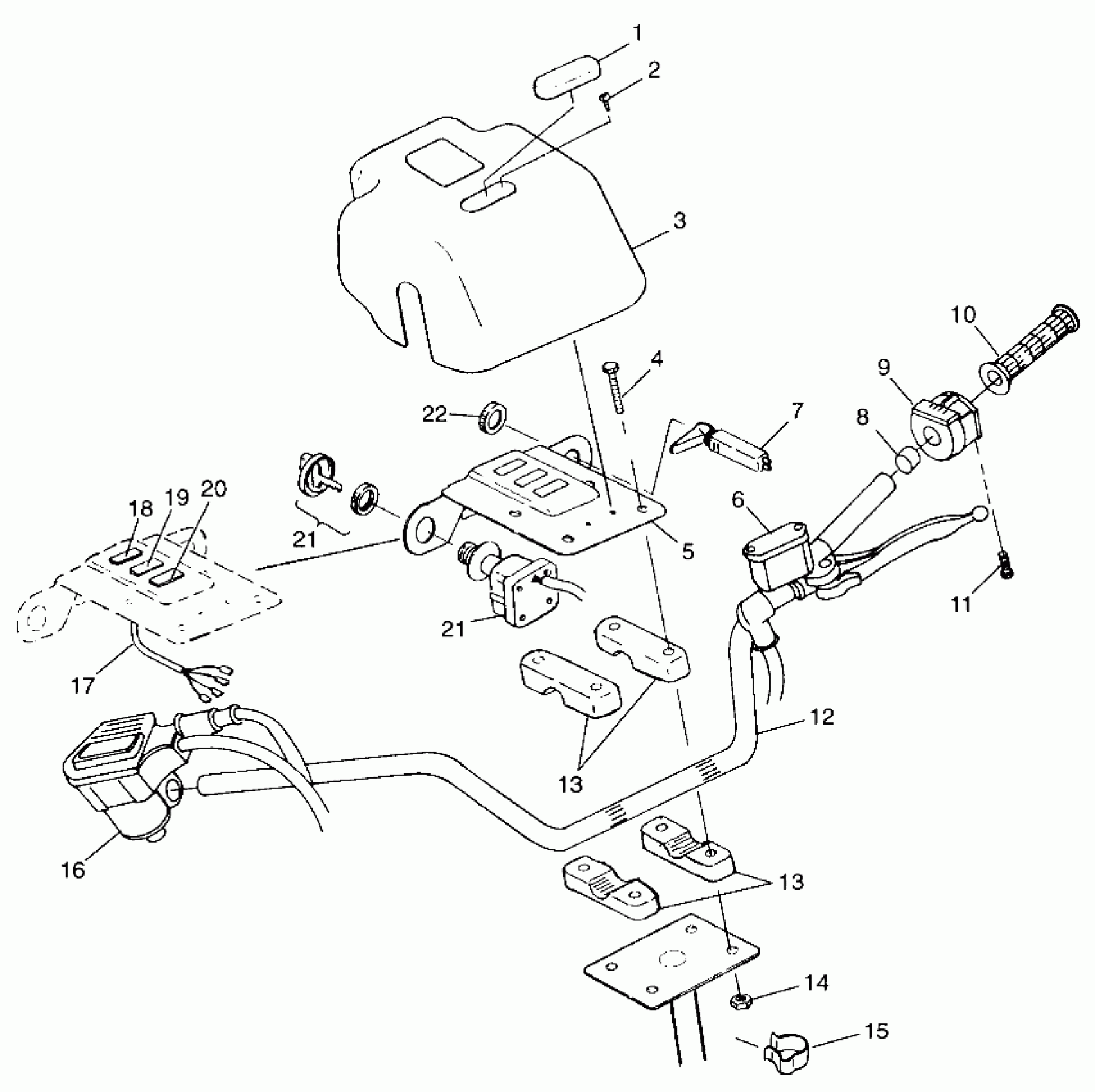

Polaris XPLORER 300 - W98CC28C HANDLEBAR XPLORER 300 W98CC28C (4945264526B011) Diagram

#

Description
Price

1

COVER-LOGO, BLK

5432247-070

Unavailable

2

SCREW,(10)

7512024

$4.79

3

PANEL,INST.,BLK

5432246-070

Unavailable

4

Screw

7517216

Unavailable

5

BRKT,INST.PANEL,BLK

5241397-067

$24.79

6

Asm., Master Cylinder (See Pg. A25 for Details)

-------

Unavailable

7

KIT-CHOKE CONTROL

2200188

$24.27

7

CABLE,CHOKE CONTROL

7080579

$97.13

8

Spacer

5433198

Unavailable

9

SWITCH,HI/LOW/OFF,LH,H'BAR

4110193

$184.99

10

GRIP, HANDLEBAR

5431030

$24.27

11

SCREW

2010055

Unavailable

12

HANDLEBAR,TUBE,BLK

5224715-067

Unavailable

13

BLOCK,H'BAR,(300)

5630629

$11.59

13

BLOCK,H'BAR,(300)

5630629

$11.59

14

NUT-LOCK(10)

7542122

$1.49

15

CLIP(10)

7080278

$2.63

16

Asm., Throttle Control (See Pg. A24, Ref. 5)

-------

Unavailable

17

HARNESS,CONTROL PANEL

2460553

Unavailable

18

INDIC"NEUT./REV."

4040054

$31.99

19

INDIC"LOW OIL&HI-BEAM."

4040052

$31.99

20

PLUG,INDIC.HOLE NOTE: Ignition Key may be ordered by using the four digit number on the key.

5430967

$5.65

21

COVER, KEY Substituted by 5433534

5431964

Unavailable

21

SWITCH, IGNITION (Incl. Key)

4110194

Unavailable

21

COVER, KEY Substituted by 5433534

5431964

Unavailable

21

SWITCH, IGNITION (Incl. Key)

4110194

Unavailable

22

Nut

7080229

$19.99
