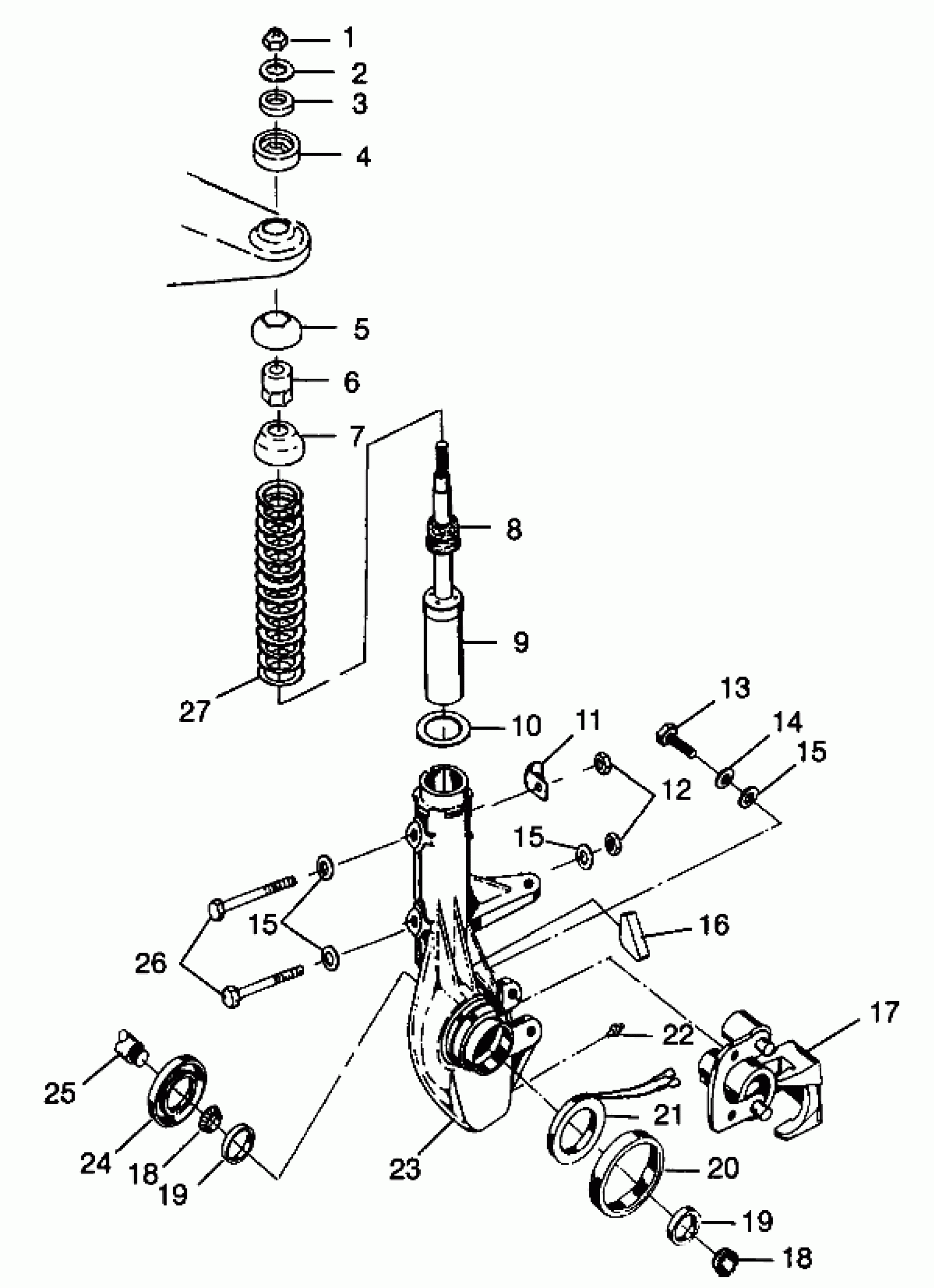

Polaris XPLORER 300 - W98CC28C FRONT STRUT XPLORER 300 W98CC28C (4945264526B006) Diagram

#

Description
Price

1

NUT,FLEX LOC(10)

7542507

$3.99

2

WASHER(10)

7555749

$1.49

3

SPACER-RUBBER

5810291

$3.99

4

PIVOT BALL, TOP Substituted by 5432872

5430806

Unavailable

5

PIVOT BALL,BOTTOM Substituted by 5432871

5430807

Unavailable

6

SPACER,THREADED

5130668

$27.99

7

RETAINER,SPRING,TOP

5220602

Unavailable

8

BUMPER,STRUT

5411468

Unavailable

9

STRUT,FR,STD,32MM Substituted by 2201460

7041755

$146.71

10

WASHER-2.06X2.62X.105-Y

5211115

$3.99

11

CLAMP,RUBBER-COATED,.562(10)

7080573

$7.19

12

NUT FLEX-LOC(10)

7542303

$6.39

13

SCREW, CAP(10)

7512365

$1.49

14

LOCK WASHER(10)

7552901

$1.49

15

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

15

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

15

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

16

RETAINER,WIRE,STRUT CAST

5810439

Unavailable

17

Asm., Front Brake Caliper (See Pg. NO TAG for Details)

-------

Unavailable

18

BEARING,TAPERED ROLLER

3554509

$23.99

18

BEARING,TAPERED ROLLER

3554509

$23.99

19

BRG,TAPER,ROLL CUP

3554507

$31.99

19

BRG,TAPER,ROLL CUP

3554507

$31.99

20

SLEEVE,STRUT HUB SEAL

5222193

$59.99

21

COIL,MAGNETIC,HVY. Substituted by 2201313

4170016

$121.41

22

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

23

HUBSTRUT ASM,LH,HVY. Substituted by 2200975 (Incl. 16, 19-22, 24)

2200609

Unavailable

23

HUBSTRUT ASM,RH,HVY. Substituted by 2200976 (Incl. 16, 19-22, 24)

2200610

Unavailable

24

SEAL, HUB STRUT

3610028

$31.99

25

Asm., Drive Shaft, Long (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

26

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

27

SPRING,COIL,FR,SHOCK,BLK.

7041375-067

$79.99
