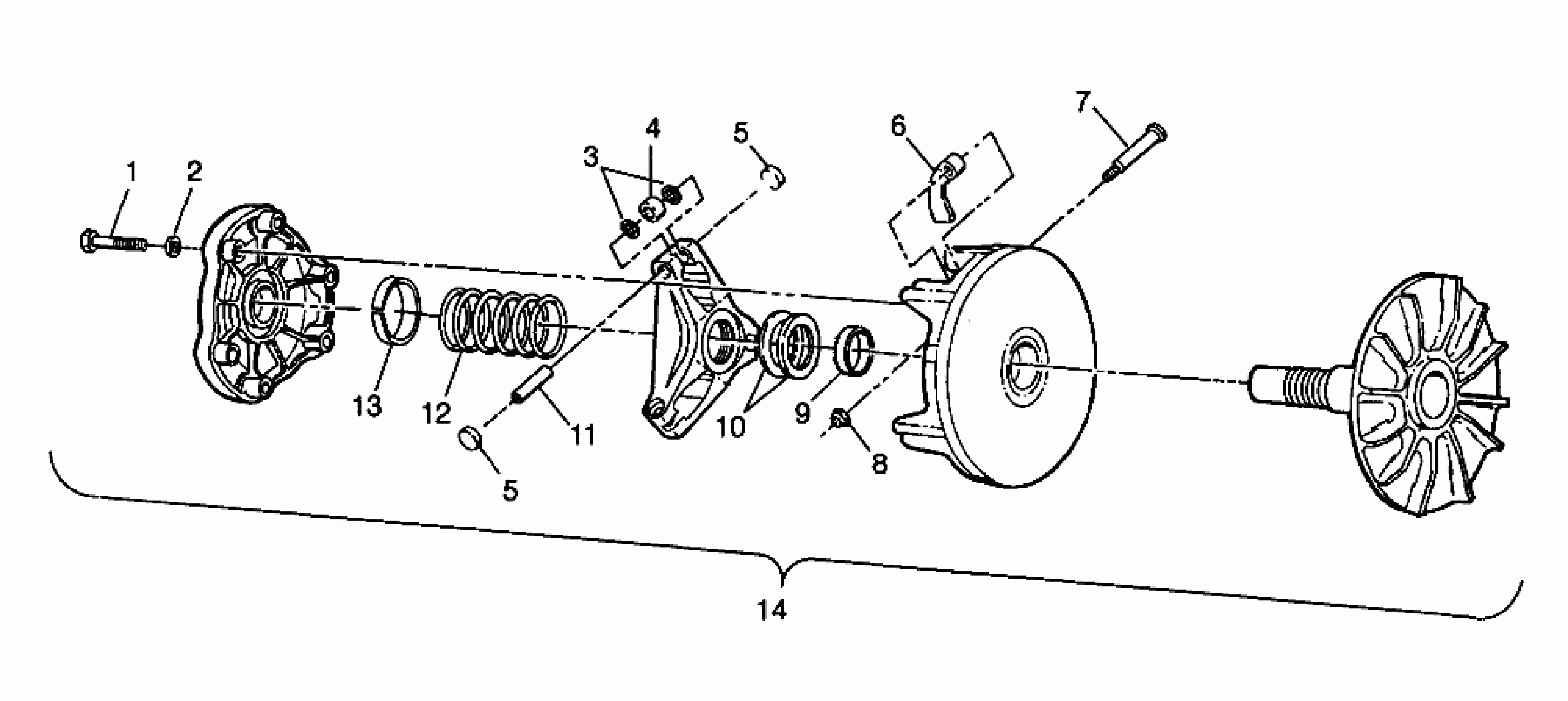

Polaris XPLORER 300 - W98CC28C DRIVE CLUTCH XPLORER 300 W98CC28C (4945264526C003) Diagram

#

Description
Price

1

BOLT(10) Substituted by 7512163

7512176

Unavailable

2

LOCK WASHER(10)

7552801

$1.59

3

WASHER,MULTILUBE

5430945

$1.59

4

ASM-ROLLER AND BUSHING

1321457

$40.46

5

BUTTON,CLUTCH

5431936

Unavailable

5

BUTTON,CLUTCH

5431936

Unavailable

6

WT,SHIFT, G(6) (G)

5630514

Unavailable

7

BOLT,SPECIAL(10)

7512266

$3.19

8

NUT FLEX LOC(10)

7541906

$3.19

9

BUSHING, DRIVEN

3576504

$23.99

10

SPACER(10) (.050)

5210754

Unavailable

10

SPACER(10) (.025)

5242981

Unavailable

10

SPACER(10) (.020)

5210752

Unavailable

10

SPACER(10) (.032)

5210753

Unavailable

11

PIN-ROLLER

5020422

$2.39

12

SPRING,CLUTCH

7041157

$47.99

13

BEARING, COVER,(10)

3576510

$9.59

14

CLUTCH,DRIVE(ATV-06) (Less 6, 12)

1321632

$697.13
