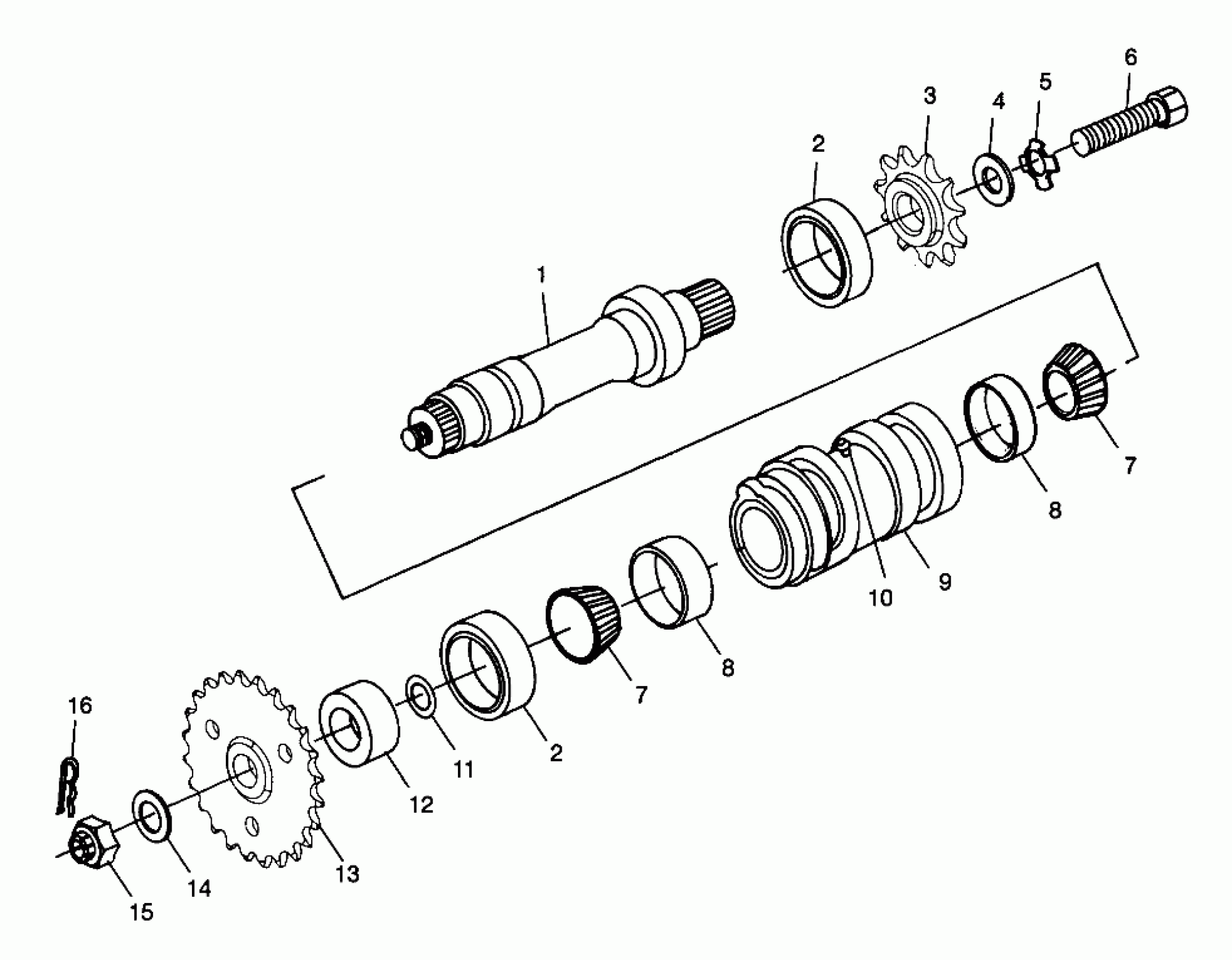

Polaris XPLORER 300 - W98CC28C CENTER TIGHTENER XPLORER 300 W98CC28C (4945264526C002) Diagram

#

Description
Price

-

TGT.ASM,CTR,SHORT,W/O SPKT. (Incl. 1, 2, 4-12, 14-16)

1380129

Unavailable

1

SHAFT,CTR.TIGHT,SHORT

5020935

$65.99

2

SEAL, TIGHTENER

3610017

$32.37

2

SEAL, TIGHTENER

3610017

$32.37

3

SPKT, 12T

3221044

$44.51

4

WASHER, FLAT(10)

7555815

$3.97

5

WASHER-LOCK(10)

7571611

Unavailable

6

SCREW(10)

7512492

$1.19

7

BRG,TAPER.ROLL.CONE

3554506

$31.75

7

BRG,TAPER.ROLL.CONE

3554506

$31.75

8

BRG,TAPER,ROLL CUP

3554507

$31.75

8

BRG,TAPER,ROLL CUP

3554507

$31.75

9

ECC.ASM,CTR,W/BRNG CUP

1380136

Unavailable

10

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

11

O RING

5410463

Unavailable

12

SPACER.CTR.TIGHTENER,TPR

5010444

Unavailable

13

SPROCKET, 22T Substituted by 3222042

3222044

Unavailable

14

WASHER, THRUST(10)

7555788

Unavailable

15

NUT, SLOTTED(10)

7542810

$3.17

16

COTTER PIN(10)

7661401

$0.79
