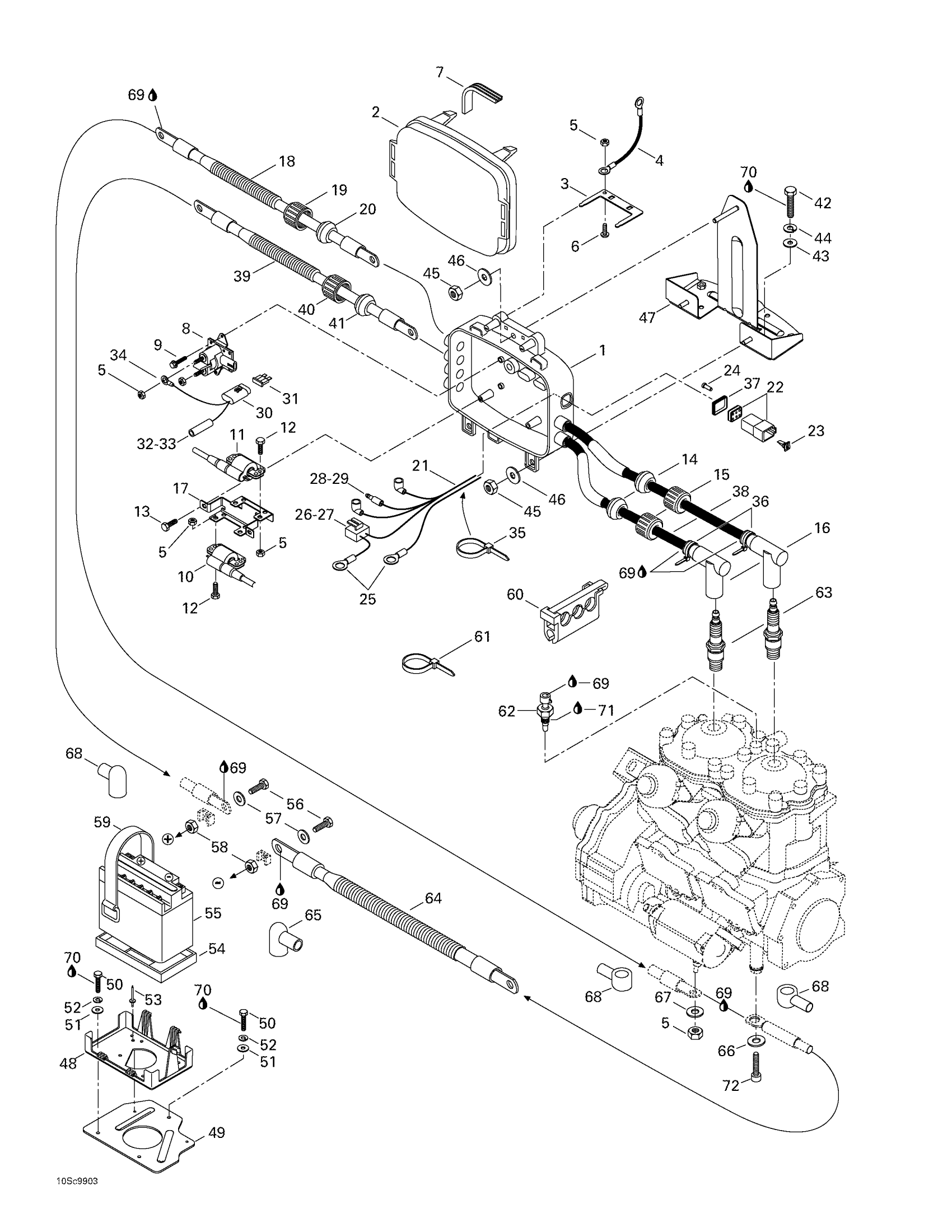

Sea-doo XP Limited, 5868/5869, 1999 Electrical Box And Battery Diagram

#

Description
Price

1

ELECTRIC BOX BASE - Call your local BRP dealership

278001425

Unavailable

2

ELECTRIC BOX COVER - Call your local BRP dealership

278001433

Unavailable

3

Ground Plate

278000732

Unavailable

4

Ground Wire

278001501

Unavailable

5

Hex. Elastic Stop Nut M6

232561600

$1.15

6

Socket Screw Button Head M6 X 10 | DS 650

250000436

$2.11

7

GASKET - Call your local BRP dealership

278001173

Unavailable

8

Starter Relay

278003012

$42.49

9

Hex. Flange Screw M6 X 10

210261040

$1.48

10

IGNITION COIL (MAG) - Call your local BRP dealership

278001476

Unavailable

11

COIL-IGNITION - Call your local BRP dealership

278001414

Unavailable

12

Hex. Forming Screw M6 X 20

207162060

$1.29

13

Hex. Screw M6 X 16

209561640

Unavailable

14

Grommet

278000682

Unavailable

15

Electric Wire Cap

278000100

Unavailable

16

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

17

Ignition Coil Support

278001421

Unavailable

18

Battery Positive Cable, Red | Includes 40,41,68,72,73

278001281

Unavailable

19

Electric Wire Cap

278000100

Unavailable

20

GROMMET - Call your local BRP dealership

278000098

Unavailable

21

Electric Box Harness | Includes 24 - 31.

278001422

Unavailable

22

Male Terminal Housing, 6 Circuits

710001539

$19.99

23

Female Lock, 6 Circuits

278000735

$3.19

24

Male Terminal

278000631

$4.39

25

Ring Terminal

278000300

Unavailable

26

Male Connector, 2 Circuits

278001113

$16.86

27

Female Terminal

278001114

$3.19

28

Male Terminal

278000230

$4.39

29

Insulated Sheath

278001007

$3.58

30

Fuse Harness (15 Amperes) | Includes 59 - 63.

278001212

Unavailable

31

Fuse, 15 Amperes

278000343

$3.28

32

Female Terminal | DS 650 X

278001009

$3.19

33

Insulated Sheath

278001007

$3.58

34

Ring Terminal

278000300

Unavailable

35

Tie Wrap 94 mm | 4X4

293750001

$1.03

36

Tie Wrap 142 mm

293750002

$1.25

37

Gasket

293200030

Unavailable

38

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

39

Starter Positive Cable, Red | Includes 34,35,75,89,90

278001091

Unavailable

40

Electric Wire Cap

278000100

Unavailable

41

GROMMET - Call your local BRP dealership

278000098

Unavailable

42

Hex. Screw 10-14 X 7/8”

211000023

$3.59

43

Flat Washer 5 mm, Stainless

234052600

$0.77

44

Helical Lock Washer M5

234151601

$1.15

45

Hex. Elastic Stop Nut M6

232561600

$1.15

46

Flat Washer M6, Stainless

234062600

$0.77

47

Box Support

278001418

Unavailable

48

Battery Support

278001233

Unavailable

49

Support Plate

292000614

Unavailable

50

Hex. Screw 10-14 X 7/8”

211000023

$3.59

51

Flat Washer 5 mm, Stainless

234052600

$0.77

52

Helical Lock Washer M5

234151601

$1.15

53

Avdel Rivet 3/16"

293150037

$0.56

54

Battery Lower Pad

278001234

Unavailable

55

Battery 19A | Includes 5 to 8

278001756

$153.36

56

Hex. Screw M6 X 16

207161644

$0.74

57

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

58

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

59

Retainer Strap

293850097

$11.64

60

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

61

Tie Wrap 368 mm

293750008

$1.04

62

Temperature Sensor

278002895

$39.99

63

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.23

64

Battery Ground Cable, Black | Includes 65,72,73

278001490

Unavailable

65

Wire Cap (Black)

278001491

Unavailable

66

Flat Washer 10 mm, Stainless

234001600

$1.15

67

Stainless Flat Washer M6

234061600

$0.33

68

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

69

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

70

Loctite 271, 10 ml

293800005

$26.99

71

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

72

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02
