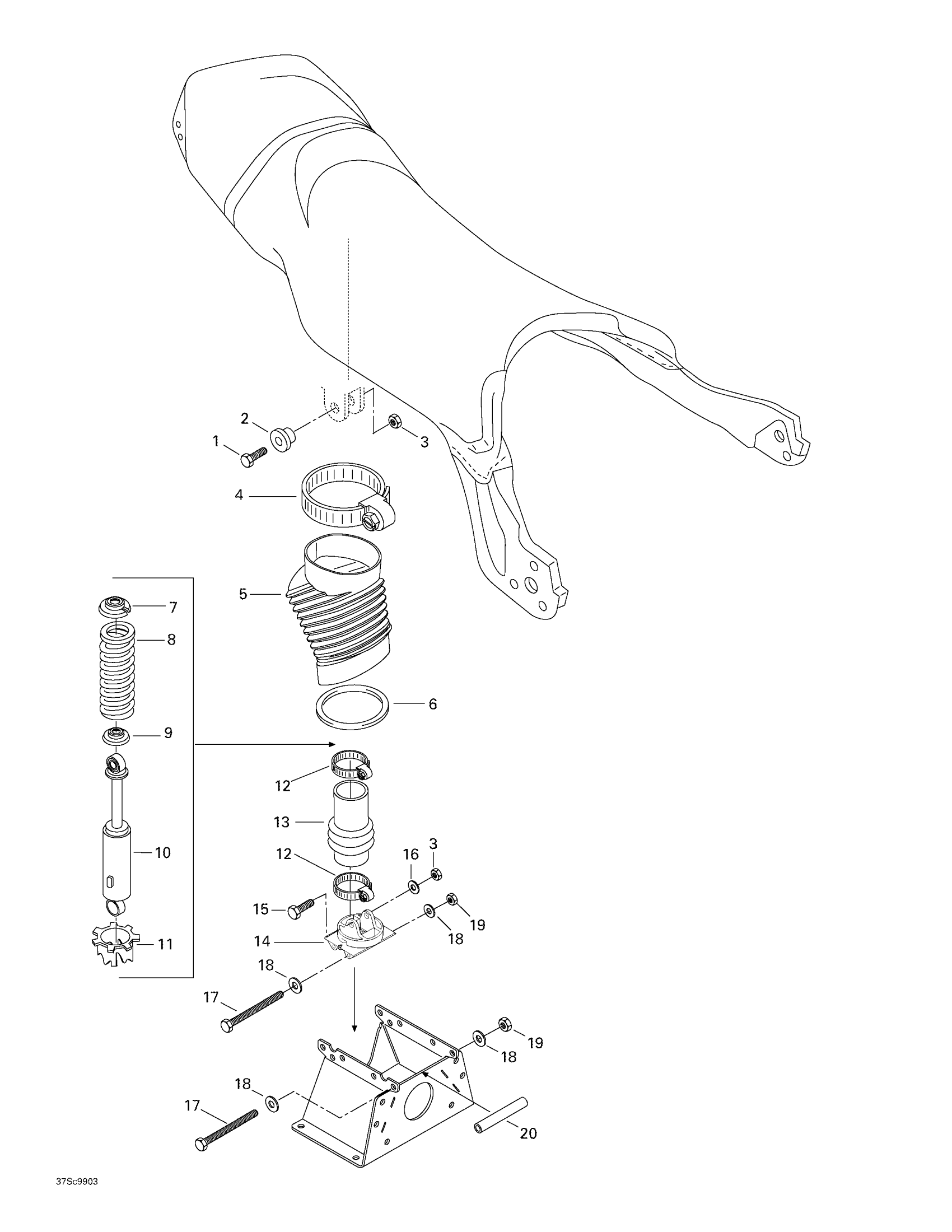

Sea-doo XP Limited, 5868/5869, 1999 Seat Suspension Diagram

#

Description
Price

1

HEX. SCREW M10 X 70 - Call your local BRP dealership

207007060

Unavailable

2

Spacer 12 mm

269000427

Unavailable

3

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

4

Tridon Clamp

293650054

$7.51

5

Outer Bellow

291001016

Unavailable

6

Retainer Ring

293000012

Unavailable

7

Spring Stopper

706200881

$10.30

8

Spring

291001245

Unavailable

9

GUIDE_SPRING - Call your local BRP dealership

503165100

$1.91

10

Shock

291001244

Unavailable

11

ADJUSTER RING - Call your local BRP dealership

291001088

$11.45

12

TRIDON GEAR CLAMP - Call your local BRP dealership

293650006

$4.12

13

Shock Bellow

291001247

Unavailable

14

Lower Shock Support

291001201

Unavailable

15

Hex. Screw M10 X 60

207006060

Unavailable

16

Flat Washer 10 mm, Stainless

234001600

$0.91

17

HEX. SCREW M6 X 120 - Call your local BRP dealership

230062060

$8.06

18

Flat Washer M6, Stainless

234062600

$0.64

19

Hex. Elastic Stop Nut M6

232561600

$0.92

20

SPACER - Call your local BRP dealership

291000757

$16.12
