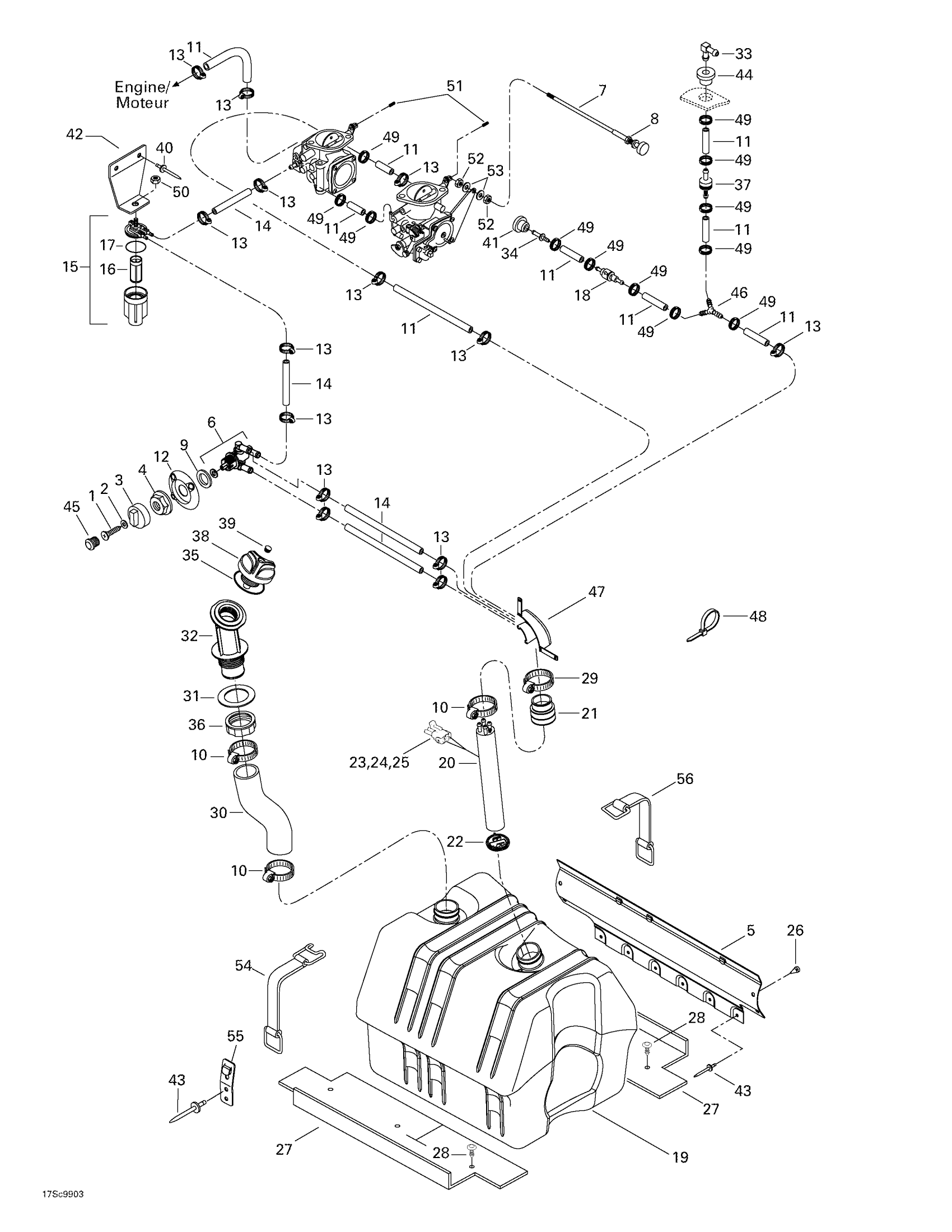

Sea-doo XP Limited, 5868/5869, 1999 Fuel System Diagram

#

Description
Price

1

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

2

Flat Washer 4 mm

234040600

$0.55

3

FUEL VALVE KNOB - Call your local BRP dealership

275500299

Unavailable

4

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

5

Heat Shield

292000444

Unavailable

6

Fuel Valve

275500400

Unavailable

7

CHOKE CABLE - Call your local BRP dealership | Includes 7 - 8.

270000341

Unavailable

8

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

9

GASKET - Call your local BRP dealership

293250004

Unavailable

10

Tridon Clamp

293650023

$13.49

11

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

12

Fuel Valve Plate

275500285

Unavailable

13

Tridon Gear Clamp

293650170

$1.99

14

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

15

FUEL FILTER ASS'Y - Call your local BRP dealership | Includes 30 - 32.

275500358

Unavailable

16

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

17

O-Ring

275500090

$8.79

18

Check Valve

275500505

$31.99

19

Fuel Tank

275500364

Unavailable

20

Baffle Pick-Up | Includes 20 - 25.

275500369

Unavailable

21

Tube Adapter

275500111

Unavailable

22

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

23

Wire Seal

278000218

$4.39

24

Male Connector, 2 Circuits

278000220

$15.49

25

Female Terminal

278000223

$3.19

26

Rubber Stopper

293830064

Unavailable

27

Rubber Pad

293830056

Unavailable

28

Black, Dart

293730006

$0.99

29

Tridon Clamp

293650035

$7.29

30

Filler Neck Hose

275500338

Unavailable

31

Gasket

293250029

$14.82

32

FUEL FILLER NECK - Call your local BRP dealership

275500229

Unavailable

33

Elbow Male Connector

414580600

$4.23

34

Straight Fitting

293710039

$7.59

35

Gasket

293250017

Unavailable

36

Filler Neck Nut, Fuel

211100012

$14.22

37

Check Valve

275500398

$10.99

38

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

39

Black, Snap Cap

293000034

$9.39

40

Avdel Rivet 3/16"

293150037

$0.56

41

Grommet

293720029

$1.59

42

Fuel Filter Support

275500228

Unavailable

43

Avdel Rivet 3/16"

293150037

$0.56

44

Grommet

709200285

$9.69

45

Black, Cap

275500241

$3.49

46

Y-Fitting

293710059

$9.69

47

Fuel Hose Guide

275500395

Unavailable

48

Tie-Rap 180 mm

414115200

$0.11

49

Oetiker Clamp

293650042

$3.09

50

Hex. Elastic Stop Nut M6

232561600

$1.15

51

Socket Set Screw M4 x 6

206540660

Unavailable

52

Hex. Nut M6

232160600

$1.15

53

Stainless Flat Washer M6

234061600

$0.33

54

FUEL TANK STRAP - Call your local BRP dealership | Includes 10 to 12

293850037

Unavailable

55

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

56

Fuel Tank Strap

293850036

$18.99
