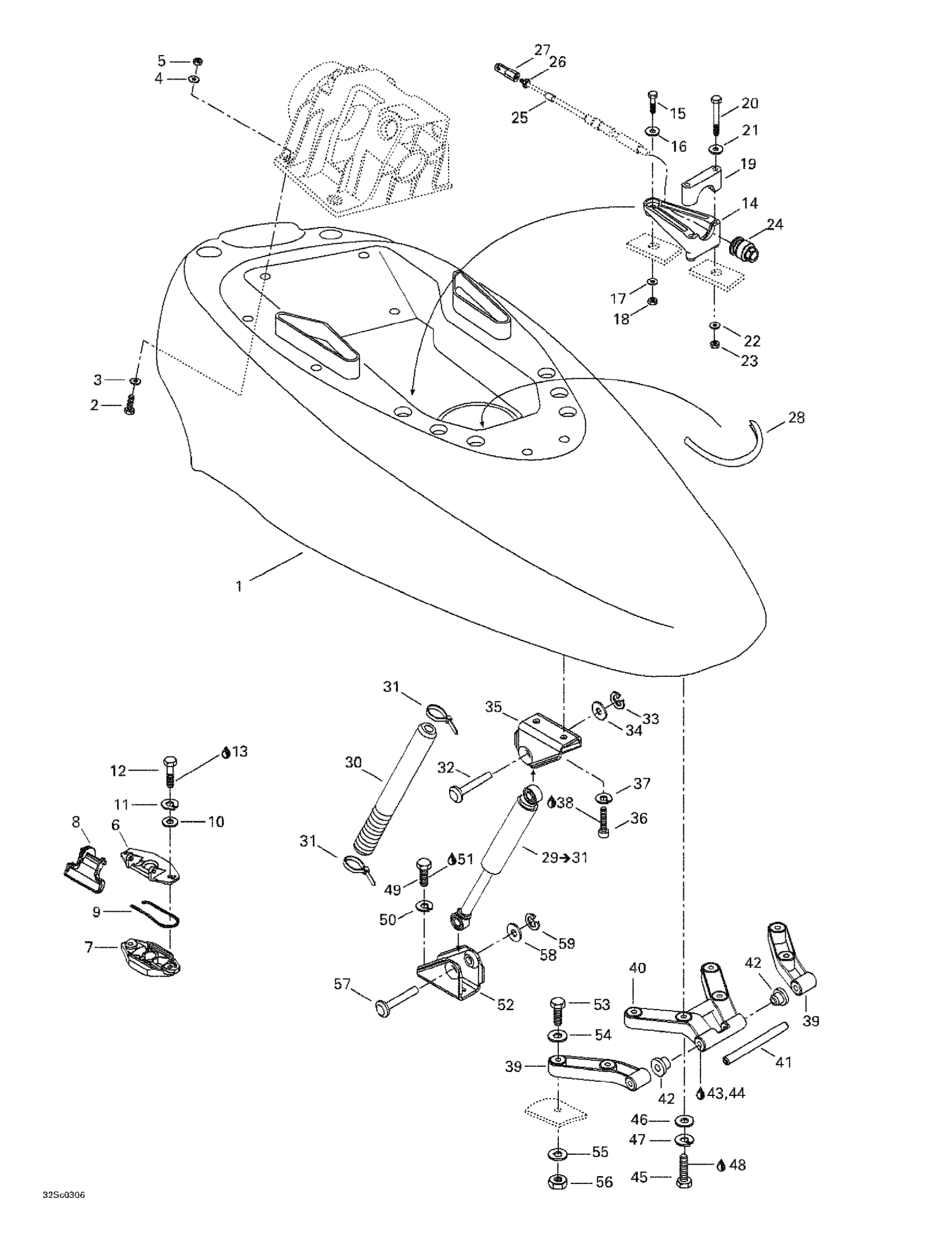

Sea-doo XP DI, 6130/6131, 2003 Engine Cover Diagram

#

Description
Price

1

Engine Cover

269700078

Unavailable

2

Hex. Screw M8 X 35

207083560

$1.40

3

Flat Washer M8.5 x 18

293050001

$1.48

4

Flat Washer M8.5 x 18

293050001

$1.48

5

Hex. Elastic Nut M8

232581600

$1.43

6

Latch Ass'y

269700109

$23.10

7

Latch Ass'y

269700109

$23.10

8

Latch Ass'y

269700109

$23.10

9

Latch Spring

269700017

$8.34

10

Stainless Flat Washer M6

234061600

$0.28

11

Lock Washer Helical M6

234161601

$1.06

12

Hex. Screw M6 X 25

207162560

$1.40

13

Loctite 243, 10 ml

293800060

$21.49

14

Cable Support

277001026

Unavailable

15

Hex. Screw M6 X 35

207063560

$2.12

16

Stainless Flat Washer M6

234061600

$0.28

17

Flat Washer M6, Stainless

234062600

$0.73

18

Hex. Elastic Stop Nut M6

232561600

$1.06

19

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

20

Hex. Screw M6 X 70

207067060

$5.30

21

Stainless Flat Washer M6

234061600

$0.28

22

Flat Washer M6, Stainless

234062600

$0.73

23

Hex. Elastic Stop Nut M6

232561600

$1.06

24

Ajustment Knob

277000782

$18.63

25

Terminal Wiper

277000441

Unavailable

26

Hex. Nut 1/4"-28

211100056

$0.64

27

Ball Joint

277001180

$32.06

28

Was 271000110 Protection Trim

219704353

$14.58

29

GAS SHOCK ASSY - Call your local BRP dealership | Includes 29 to 31

269500363

Unavailable

30

Bellow

291001022

Unavailable

31

Tie Wrap 94 mm | 4X4

293750001

$0.96

32

PIN - Call your local BRP dealership

211400019

Unavailable

33

CIRCLIP - Call your local BRP dealership

293370008

Unavailable

34

Stainless, Flat Washer 8 mm

234081600

$0.52

35

Shock Support

291001013

Unavailable

36

Socket Screw M6 X 16

205061660

$1.43

37

Lock Washer Helical M6

234161601

$1.06

38

Loctite 243, 10 ml

293800060

$21.49

39

RH HINGE - Call your local BRP dealership

269700022111

Unavailable

LH HINGE - Call your local BRP dealership

269700023111

Unavailable

40

Cover Hinge

269700043

Unavailable

41

AXLE - Call your local BRP dealership

269700024

Unavailable

42

CUSHION - Call your local BRP dealership

293350016

Unavailable

43

Sealant Loctite 648

219703000

$41.01

44

Was 293800041 Loctite Primer 7649

219704458

$41.99

45

Hex. Screw M6 X 25

207162560

$1.40

46

Stainless Flat Washer M6

234061600

$0.28

47

Lock Washer Helical M6

234161601

$1.06

48

Loctite 243, 10 ml

293800060

$21.49

49

Hex. Screw M6 X 25

207162560

$1.40

50

Lock Washer Helical M6

234161601

$1.06

51

Loctite 243, 10 ml

293800060

$21.49

52

Shock Support

291001013

Unavailable

53

Hex. Screw M6 X 35

207063560

$2.12

54

Stainless Flat Washer M6

234061600

$0.28

55

Flat Washer M6, Stainless

234062600

$0.73

56

Hex. Elastic Stop Nut M6

232561600

$1.06

57

SHORT PIN - Call your local BRP dealership

211400006

Unavailable

58

Stainless, Flat Washer 8 mm

234081600

$0.52

59

CIRCLIP - Call your local BRP dealership

293370008

Unavailable
