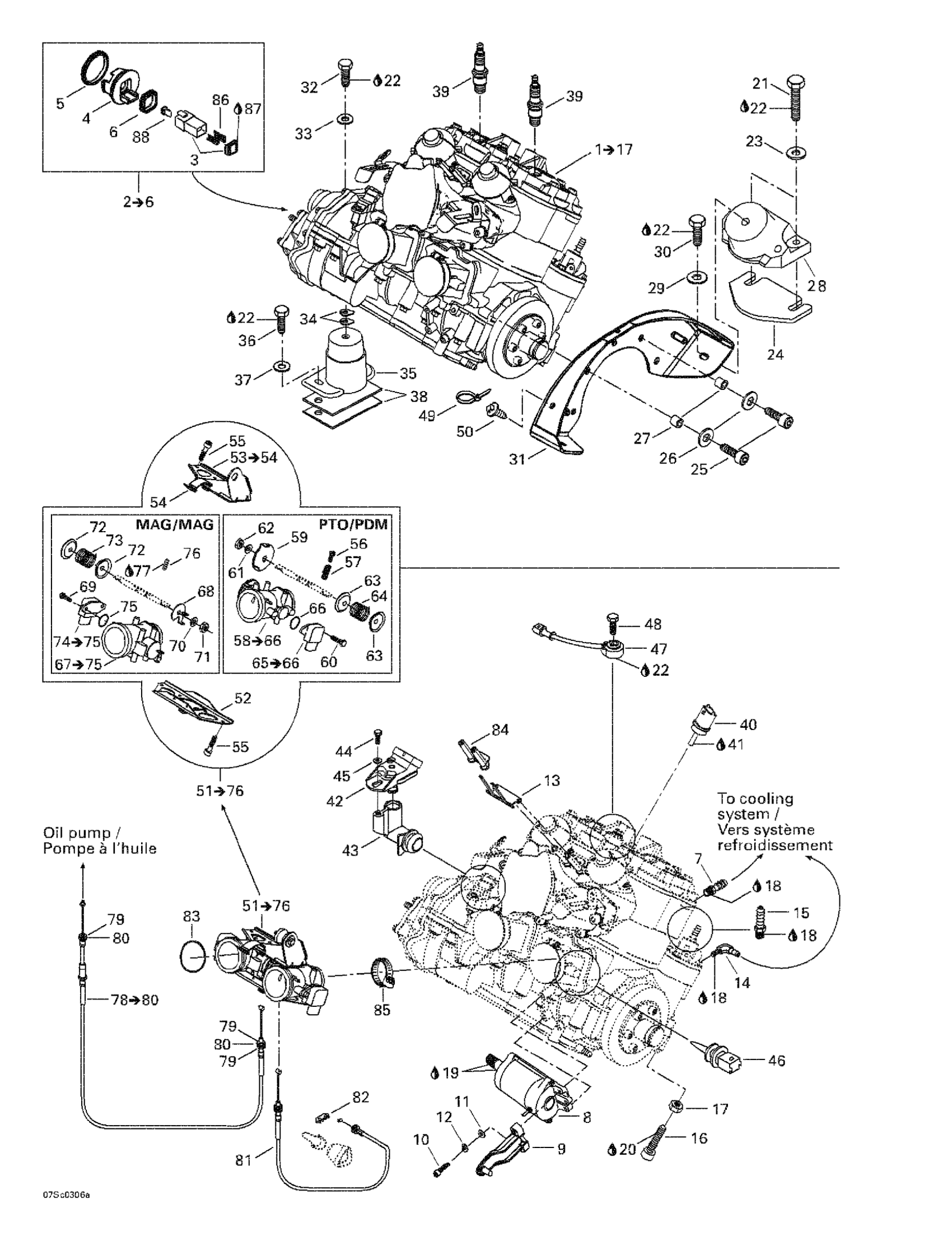

Sea-doo XP DI, 6130/6131, 2003 Engine Support Diagram

#

Description
Price

1

Rotax Engine 947-Di | Includes 1 - 17.

270000573

Unavailable

2

Adaptor Ass'y | Includes 3 to 7

707000031

Unavailable

3

Male Terminal Housing, 6 Circuits

710001539

$15.57

4

Adaptor

270000138

Unavailable

5

Gasket

293300033

Unavailable

6

Gasket

293200055`

Unavailable

7

MALE CONNECTOR - Call your local BRP dealership

293710066

Unavailable

8

Starter Ass'y, Black

278001937

$232.02

9

Silencer Support

273000123

Unavailable

10

Socket Head Screw M6 X 35

205063560

$1.85

11

Stainless Flat Washer M6

234061600

$0.25

12

Lock Washer Helical M6

234161601

$0.92

13

GROUND PLATE - Call your local BRP dealership

278001662

Unavailable

14

Elbow Fitting

293700016

Unavailable

15

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

16

Socket Screw M10 X 30

205003060

Unavailable

17

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

18

Was 293800013 Loctite 56765

219704454

$65.35

19

Synthetic Grease, 400 G

293550010

Unavailable

20

Loctite 271, 10 ml

293800005

$20.77

21

Hex. Screw M8 X 40

207184060

$1.85

22

Loctite 243, 10 ml

293800060

$20.77

23

Stainless, Flat Washer 8 mm

234081600

$0.46

24

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

25

Socket Head Screw M8 X 25, Scotch Grip

205582560

$1.73

26

Stainless, Flat Washer 8 mm

234081600

$0.46

27

BUSHING - Call your local BRP dealership

270000453

Unavailable

28

Rubber Mount, Black

270000421

Unavailable

29

Flat Washer 8 mm, Stainless

234082600

$1.98

30

Hex. Screw M8 X 16

207181660

Unavailable

31

Engine Support, Black

270000515

Unavailable

32

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

33

Flat Washer 8 mm, Stainless

234082600

$1.98

34

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

35

Rubber Mount, Black

270000430

Unavailable

36

Hex. Screw M8 X 40

207184060

$1.85

37

Stainless, Flat Washer 8 mm

234081600

$0.46

38

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

39

Spark Plug NGK Zfr4f-11

278001650

$4.60

40

Temperature Sensor

278002895

$31.82

41

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

42

Pressure Sensor

270600040

$157.92

43

VALVE ADAPTOR - Call your local BRP dealership

270600019

Unavailable

44

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

45

Flat Washer | XT

211200035

$0.46

46

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

47

Noise Sensor

270000484

$65.62

48

Hex. Screw M8 X 30

207183060

$1.30

49

Tie-Rap 180 mm

414115200

$0.09

50

Mount Dart

293730040

$0.86

51

Throttle Body | Includes 1 to 26

270600058

Unavailable

52

LOWER SUPPORT - Call your local BRP dealership

270600069

Unavailable

53

Support Ass'y | Includes 3 to 4

270600070

Unavailable

54

LATCH BRACKET - Call your local BRP dealership

270600073

Unavailable

55

Socket Head Screw M5 X 10

205051060

$1.54

56

ADJUSTER SCREW - Call your local BRP dealership

270600074

Unavailable

57

Spring

270600075

Unavailable

58

PRIMARY THROTTLE BODY - Call your local BRP dealership | Includes 8 to 16

270600076

Unavailable

59

Throttle Lever Ass'y

270600077

Unavailable

60

POTENTIOMETER SCREW M4 - Call your local BRP dealership

270600078

Unavailable

61

Lock Washer Helical M6

234161601

$0.92

62

Hex. Nut M6

232061600

$0.91

63

GUIDE SPRING - Call your local BRP dealership

270600079

Unavailable

64

Spring

270600080

Unavailable

65

Position Sensor

420866120

$77.97

66

O-Ring

270000544

$4.60

67

SECONDARY THROTTLE BODY - Call your local BRP dealership | Includes 17 to 26

270600081

Unavailable

68

Pick-Up Lever

270600082

Unavailable

69

POTENTIOMETER SCREW M4 - Call your local BRP dealership

270600078

Unavailable

70

Lock Washer Helical M6

234161601

$0.92

71

Hex. Nut M6

232061600

$0.91

72

GUIDE SPRING - Call your local BRP dealership

270600079

Unavailable

73

Spring

270600083

Unavailable

74

Position Sensor

420866120

$77.97

75

O-Ring

270000544

$4.60

76

IDLE SCREW - Call your local BRP dealership

270600084

Unavailable

77

Cover, Loctite Ultra Grey

270600085

Unavailable

78

Injection Cable | Includes 28 to 30

270000546

$55.35

79

Hex. Nut M6

232160600

$1.08

80

Stainless Flat Washer M6

234061600

$0.25

81

THROTTLE CABLE - Call your local BRP dealership

277001197

Unavailable

82

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

83

O-Ring

293250065

Unavailable

84

INSULATOR - Call your local BRP dealership

278001512

Unavailable

85

Norma Clamp

293650079

$8.89

86

Male Terminal

278000631

$4.12

87

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

88

Female Lock, 6 Circuits

278000735

$3.02
