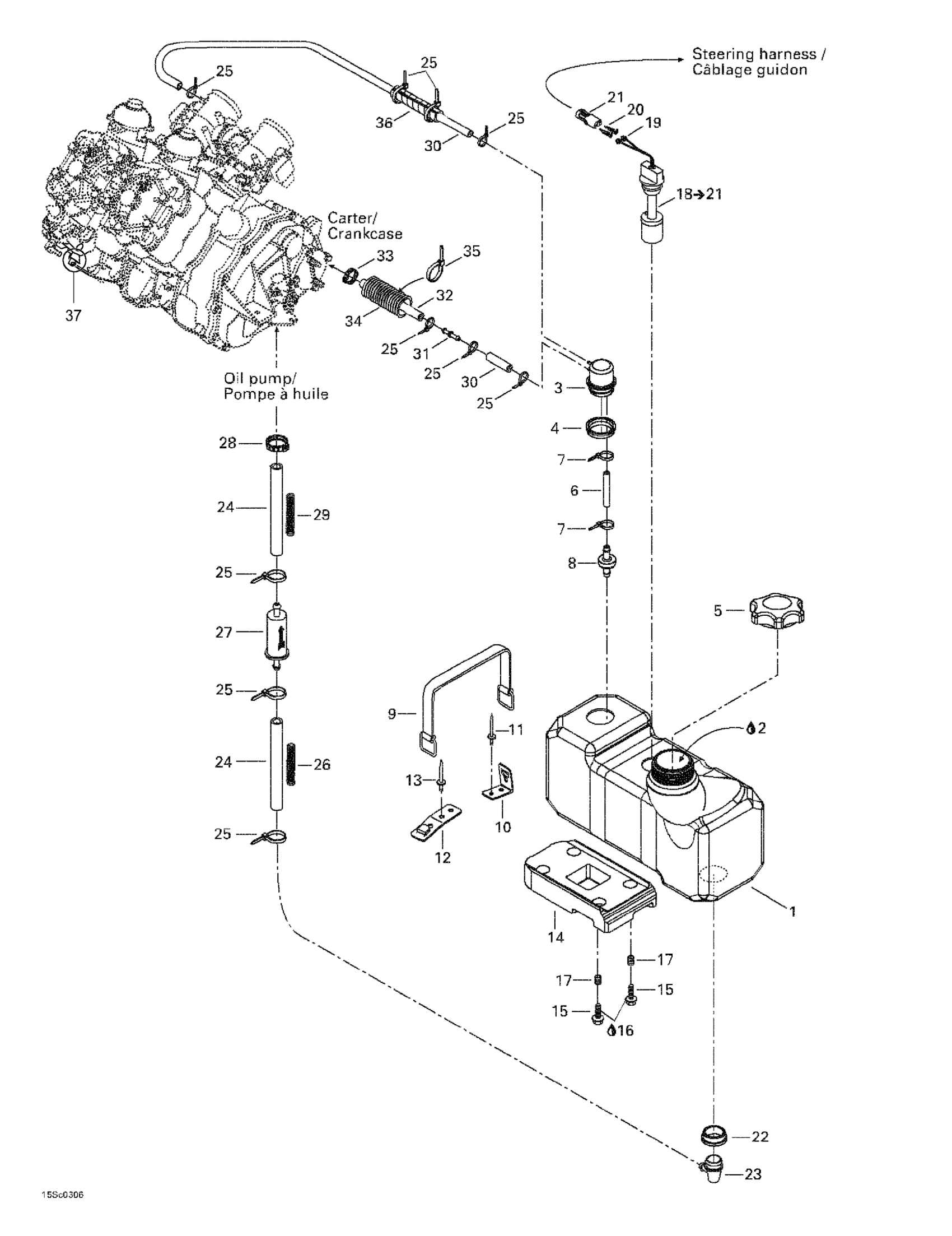

Sea-doo XP DI, 6130/6131, 2003 Oil Injection System Diagram

#

Description
Price

1

OIL TANK - Call your local BRP dealership

275000255

Unavailable

2

OIL 2T 12X1 SYNTH - Call your local BRP dealership This part replaces 293600045.

293600132

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

3

SEPARETOR - Call your local BRP dealership

275000252

Unavailable

4

GROMMET - Call your local BRP dealership

293720072

Unavailable

5

Fuel Tank Cap

513033025

$22.36

6

Was 420660574 Pressure Hose 280 mm

219704352

$202.21

7

Tie Wrap 94 mm | 4X4

293750001

$0.96

8

Check Valve

275500398

$9.84

9

Retainer Strap

293850097

$10.63

10

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

11

Avdel Rivet 3/16"

293150037

$0.54

12

Strap Clip

293850030

$10.30

13

Avdel Rivet 3/16"

293150037

$0.54

14

Foam Pad

292000629

Unavailable

15

Hex. Screw 10-14 X 7/8”

211000023

$3.34

16

Loctite 271, 10 ml

293800005

$23.85

17

Sleeve

292000528

Unavailable

18

OIL SENSOR - Call your local BRP dealership | Includes 18 to 22

278001515

Unavailable

19

Wire Seal

278000218

$4.00

20

Male Terminal | XT Models

278000222

$2.93

21

Female Housing, 2 Circuits

278000217

$8.72

22

Grommet

293720008

$12.52

23

Elbow Fitting 90°

293710070

Unavailable

24

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

25

Tie Wrap 94 mm | 4X4

293750001

$0.96

26

Spring

270000377

Unavailable

27

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

28

Oetiker Clamp

293650042

$1.61

29

Spring

270000594

Unavailable

30

Was 420660574 Pressure Hose 280 mm

219704352

$202.21

31

STRAIGHT FITTING - Call your local BRP dealership

275500444

Unavailable

32

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

33

Clamp

293650105

$4.22

34

Tubing 25 MM 1000MM Long

219704402

$14.57

35

Tie Wrap 142 mm

293750002

$1.01

36

Tubing 10 MM 1000MM Long

219704407

$2.52

37

Elbow Fitting 90°

420924652

Unavailable
