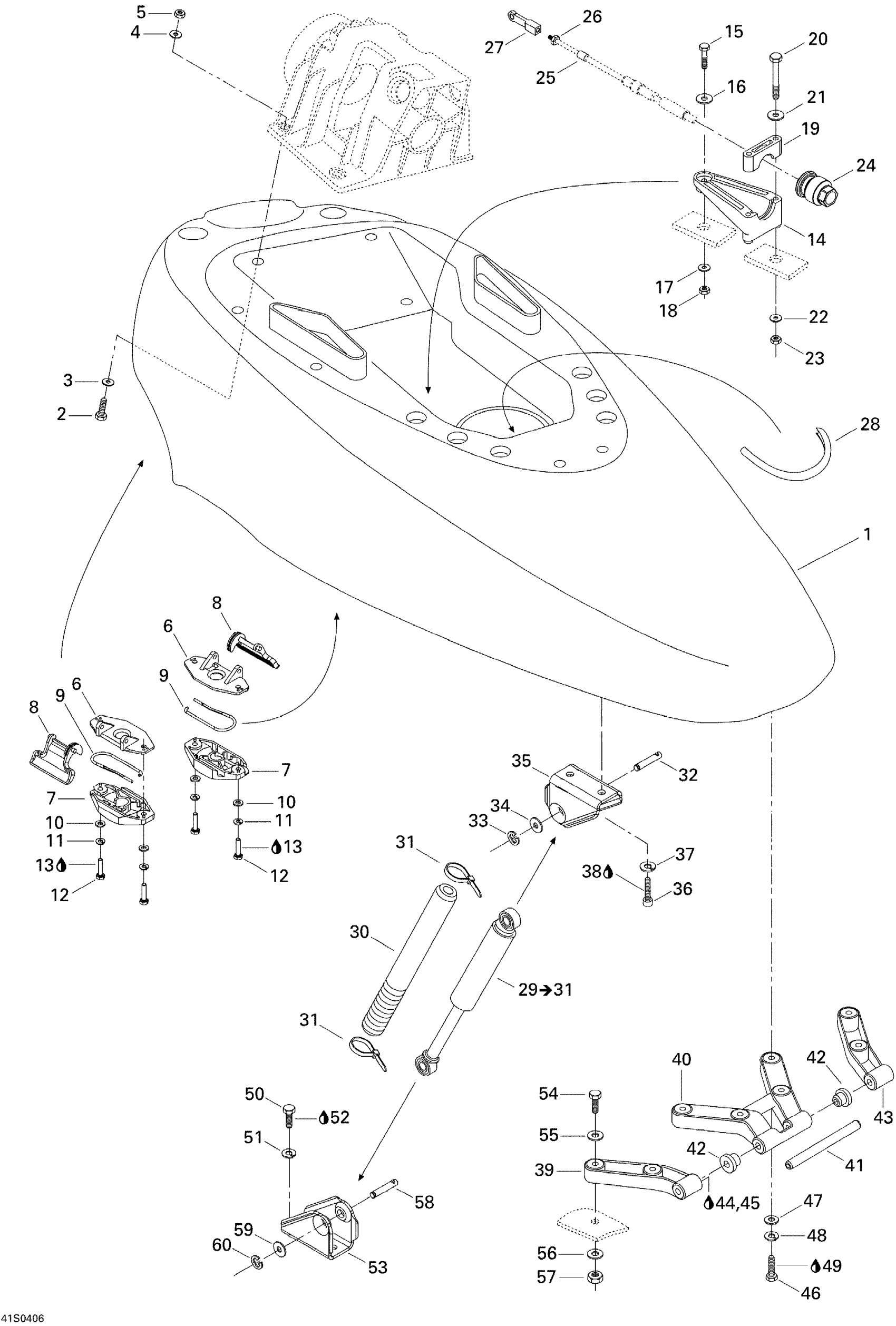

Sea-doo XP DI, 2004 Engine Cover Diagram

#

Description
Price

1

Engine Cover

269700078

Unavailable

2

Hex. Screw M8 X 35

207083560

Unavailable

3

Flat Washer M8.5 x 18

293050001

Unavailable

4

Flat Washer M8.5 x 18

293050001

Unavailable

5

Hex. Elastic Nut M8

232581600

Unavailable

6

Latch Ass'y

269700109

Unavailable

7

Latch Ass'y

269700109

Unavailable

8

Latch Ass'y

269700109

Unavailable

9

Latch Spring

269700017

Unavailable

10

Stainless Flat Washer M6

234061600

Unavailable

11

Lock Washer Helical M6

234161601

Unavailable

12

Hex. Screw M6 X 25

207162560

Unavailable

13

Loctite 243, 10 ml

293800060

Unavailable

14

Cable Support

277001026

Unavailable

15

Hex. Screw M6 X 35

207063560

Unavailable

16

Stainless Flat Washer M6

234061600

Unavailable

17

Flat Washer M6, Stainless

234062600

Unavailable

18

Hex. Elastic Stop Nut M6

232561600

Unavailable

19

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

20

Hex. Screw M6 X 70

207067060

Unavailable

21

Stainless Flat Washer M6

234061600

Unavailable

22

Flat Washer M6, Stainless

234062600

Unavailable

23

Hex. Elastic Stop Nut M6

232561600

Unavailable

24

Ajustment Knob

277000782

Unavailable

25

Terminal Wiper

277000441

Unavailable

26

Hex. Nut 1/4"-28

211100056

Unavailable

27

Ball Joint

277001180

Unavailable

28

Was 271000110 Protection Trim

219704353

Unavailable

29

GAS SHOCK ASSY - Call your local BRP dealership | Includes 29 to 31

269500363

Unavailable

30

Bellow

291001022

Unavailable

31

Tie Wrap 94 mm | 4X4

293750001

Unavailable

32

PIN - Call your local BRP dealership

211400019

Unavailable

33

CIRCLIP - Call your local BRP dealership

293370008

Unavailable

34

Stainless, Flat Washer 8 mm

234081600

Unavailable

35

Shock Support

291001013

Unavailable

36

Socket Screw M6 X 16

205061660

Unavailable

37

Lock Washer Helical M6

234161601

Unavailable

38

Loctite 243, 10 ml

293800060

Unavailable

39

RH HINGE - Call your local BRP dealership

269700022111

Unavailable

40

Cover Hinge

269700043

Unavailable

41

AXLE - Call your local BRP dealership

269700024

Unavailable

42

CUSHION - Call your local BRP dealership

293350016

Unavailable

43

LH HINGE - Call your local BRP dealership

269700023111

Unavailable

44

Sealant Loctite 648

219703000

Unavailable

45

Was 293800041 Loctite Primer 7649

219704458

Unavailable

46

Hex. Screw M6 X 25

207162560

Unavailable

47

Stainless Flat Washer M6

234061600

Unavailable

48

Lock Washer Helical M6

234161601

Unavailable

49

Loctite 243, 10 ml

293800060

Unavailable

50

Hex. Screw M6 X 25

207162560

Unavailable

51

Lock Washer Helical M6

234161601

Unavailable

52

Loctite 243, 10 ml

293800060

Unavailable

53

Shock Support

291001013

Unavailable

54

Hex. Screw M6 X 35

207063560

Unavailable

55

Stainless Flat Washer M6

234061600

Unavailable

56

Flat Washer M6, Stainless

234062600

Unavailable

57

Hex. Elastic Stop Nut M6

232561600

Unavailable

58

SHORT PIN - Call your local BRP dealership

211400006

Unavailable

59

Stainless, Flat Washer 8 mm

234081600

Unavailable

60

CIRCLIP - Call your local BRP dealership

293370008

Unavailable
