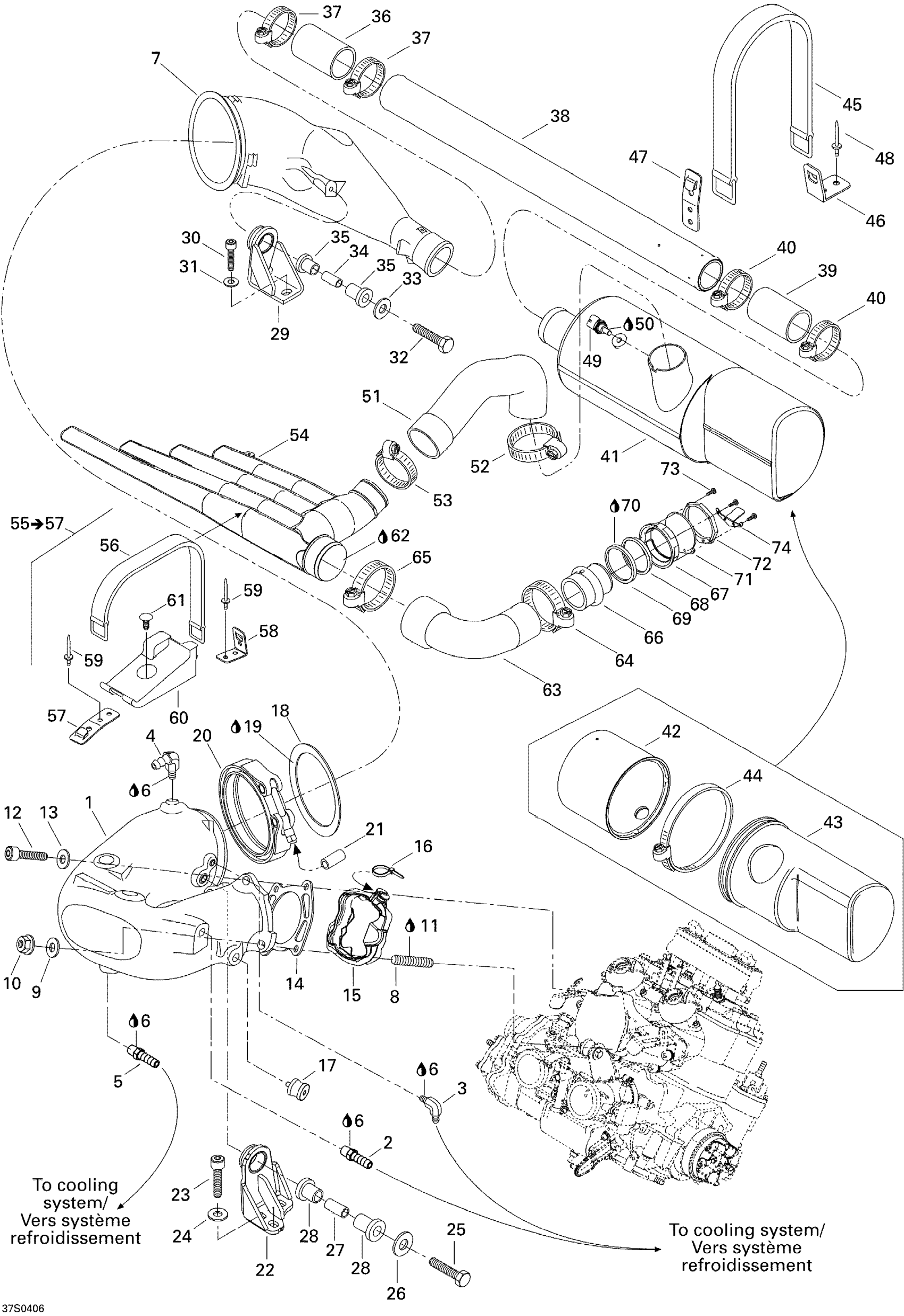

Sea-doo XP DI, 2004 Exhaust Diagram

#

Description
Price

1

Pipe Head, Black

274001107

Unavailable

2

Male Connector

293710037

Unavailable

3

Elbow Fitting 90°

293710048

Unavailable

4

Elbow Fitting

293700016

Unavailable

5

Male Connector | With Catalyst

293710021

Unavailable

6

Was 293800013 Loctite 56765

219704454

Unavailable

7

EXHAUST CONE, BLACK - Call your local BRP dealership

274001108

Unavailable

8

STUD M10 X 5.1 X 55, SCOTCH GRIP - Call your local BRP dealership

250300008

Unavailable

9

Flat Washer

211200051

Unavailable

10

Hex. Flange Nut M10

233101600

Unavailable

11

Loctite 243, 10 ml

293800060

Unavailable

12

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

13

Flat Washer

211200051

Unavailable

14

EXHAUST GASKET - Call your local BRP dealership

420931990

Unavailable

15

PICK UP ENVELOPE - Call your local BRP dealership

274000862

Unavailable

16

Tie Wrap 142 mm

293750002

Unavailable

17

Rubber Isolator

707000949

Unavailable

18

SEALING RING - Call your local BRP dealership

274000511

Unavailable

19

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

20

EXHAUST CLAMP - Call your local BRP dealership

274000510

Unavailable

21

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

22

Pipe Support, Black

274001109

Unavailable

23

SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

244083060

Unavailable

24

FLAT WASHER M8.4 - Call your local BRP dealership

250200012

Unavailable

25

HEX. SCREW M10 X 40, SCOTCH GRIP - Call your local BRP dealership

245004060

Unavailable

26

Flat Washer 10 mm, Stainless

234002600

Unavailable

27

BUSHING - Call your local BRP dealership

274000861

Unavailable

28

RUBBER BUSHING - Call your local BRP dealership

293830065

Unavailable

29

PIPE SUPPORT, BLACK - Call your local BRP dealership

274001110

Unavailable

30

SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

244083060

Unavailable

31

FLAT WASHER M8.4 - Call your local BRP dealership

250200012

Unavailable

32

Hex. Screw M10 X 40, Scotch Grip

244004060

Unavailable

33

Flat Washer 10 mm, Stainless

234002600

Unavailable

34

BUSHING - Call your local BRP dealership

274000861

Unavailable

35

RUBBER BUSHING - Call your local BRP dealership

293830065

Unavailable

36

Exhaust Hose

274000896

Unavailable

37

Tridon Clamp

293650064

Unavailable

38

Expension Tube, Black

274001111

Unavailable

39

Exhaust Hose

274000896

Unavailable

40

Tridon Clamp

293650064

Unavailable

41

Muffler

274001053

Unavailable

42

Front Muffler Cover

274000811

Unavailable

43

Rear Muffler Cover

274000812

Unavailable

44

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

45

Fuel Tank Strap

293850036

Unavailable

46

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

47

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

48

Avdel Rivet 3/16"

293150037

Unavailable

49

Temperature Sensor

278002895

Unavailable

50

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

51

EXHAUST HOSE - Call your local BRP dealership

274001055

Unavailable

52

Tridon Clamp

293650064

Unavailable

53

Tridon Clamp

293650179

Unavailable

54

LH UPPER RESONATOR - Call your local BRP dealership

274000700

Unavailable

55

Strap Ass`Y | Includes 56 to 58

293850082

Unavailable

56

Fuel Tank Strap

293850036

Unavailable

57

Strap Clip

293850030

Unavailable

58

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

59

Avdel Rivet 3/16"

293150037

Unavailable

60

Not Available As Spare Part - Friction Washer

Unavailable

61

Black, Dart

293730006

Unavailable

62

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

63

Adapter Hose

274000784

Unavailable

64

Tridon Clamp

293650064

Unavailable

65

Tridon Clamp

204000079

Unavailable

66

Exhaust Hose, Outlet

274001391

Unavailable

67

NUT 72 MM - Call your local BRP dealership

274000835

Unavailable

68

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

69

GASKET - Call your local BRP dealership

293250041

Unavailable

70

Silicone Sealant 51388, 300 ml

296000309

Unavailable

71

GASKET - Call your local BRP dealership

293250107

Unavailable

72

SUPPORT NUT - Call your local BRP dealership

274000892

Unavailable

73

Hex. Flange Screw K40 X 16

241141660

Unavailable

74

BRACKET - Call your local BRP dealership

274000885

Unavailable
