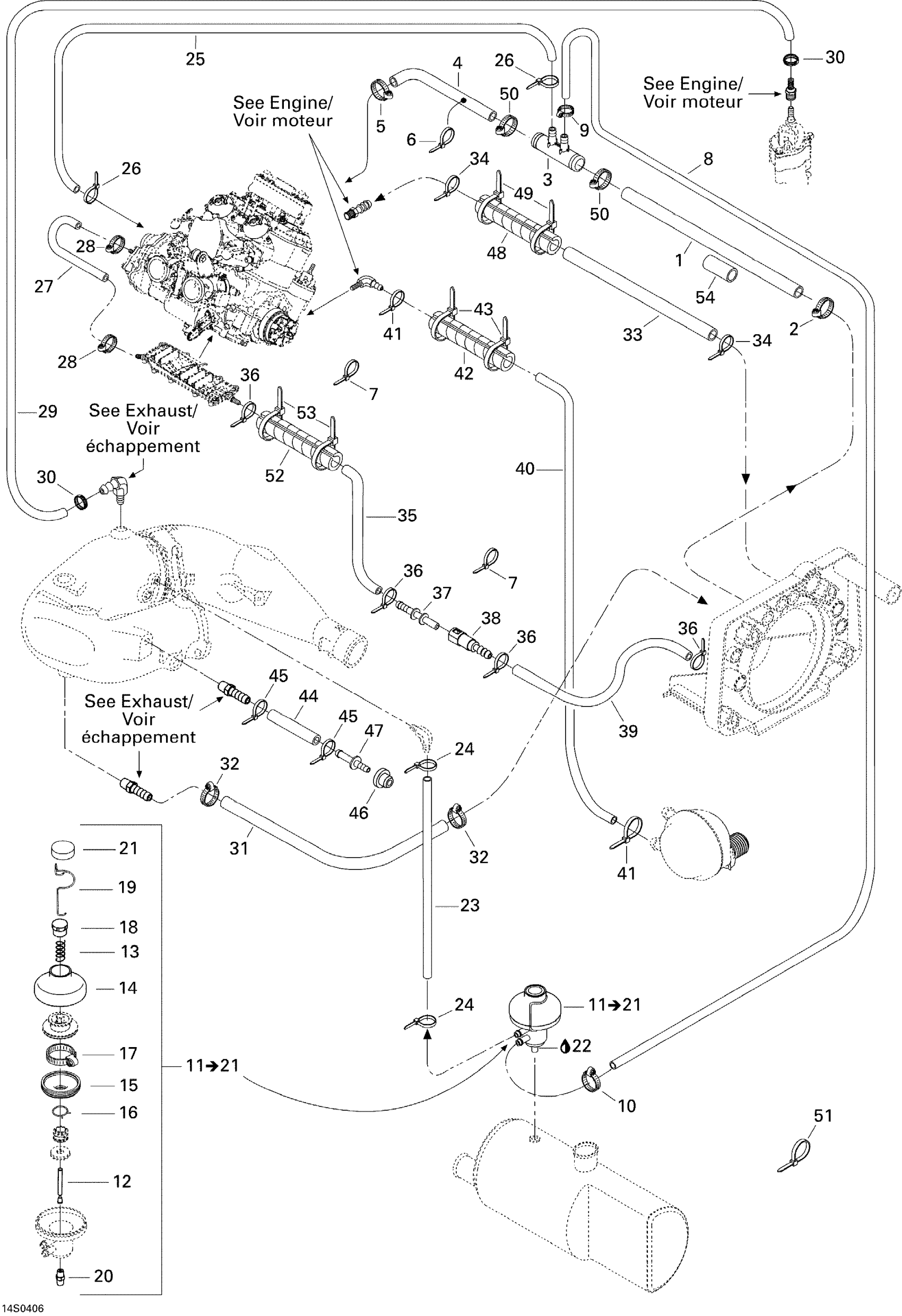

Sea-doo XP DI, 2004 Cooling System Diagram

#

Description
Price

1

Hose 19.0Mm. 2000Mm Long

219704361

Unavailable

2

Tridon Gear Clamp

293650051

Unavailable

3

DOUBLE FITTING - Call your local BRP dealership

293710102

Unavailable

4

Hose

276000119

Unavailable

5

Tridon Gear Clamp

293650019

Unavailable

6

Tie Wrap 142 mm

293750002

Unavailable

7

Tie-Rap 180 mm

414115200

Unavailable

8

HOSE 5/16 - Call your local BRP dealership

275500548

Unavailable

9

Crimp Clamp

293650053

Unavailable

10

Tridon Gear Clamp

293650171

Unavailable

11

PRESSURE REGULATOR - Call your local BRP dealership | Includes 11 to 21

274001067

Unavailable

12

FEEDING ROD - Call your local BRP dealership

274000423

Unavailable

13

Spring 50 mm

274000612

Unavailable

14

Valve Cover

420911552

Unavailable

15

Bellow

420260721

Unavailable

16

SPRING CLAMP - Call your local BRP dealership

420838190

Unavailable

17

Rivalair Clamp

293650065

Unavailable

18

Adjuster Screw

420241221

Unavailable

19

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

20

MALE CONNECTOR - Call your local BRP dealership

293700010

Unavailable

21

Cover Screw

274000903

Unavailable

22

Was 293800013 Loctite 56765

219704454

Unavailable

23

Hose 6 Mm 15000Mm Long

219704360

Unavailable

24

Tie Wrap 94 mm | 4X4

293750001

Unavailable

25

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

26

Tie Wrap 94 mm | 4X4

293750001

Unavailable

27

Hose

275500567

Unavailable

28

Tridon Gear Clamp

293650171

Unavailable

29

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

30

Oetiker Clamp

293650042

Unavailable

31

Was 276000001 Hose 12.5 mm

219704394

Unavailable

32

Tridon Gear Clamp

293650172

Unavailable

33

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

34

Tie Wrap 142 mm

293750002

Unavailable

35

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

36

Tie Wrap 94 mm | 4X4

293750001

Unavailable

37

Quick Male Fitting

275500435

Unavailable

38

QUICK FEMALE FITTING - Call your local BRP dealership

275500436

Unavailable

39

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

40

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

41

Tie Wrap 142 mm

293750002

Unavailable

42

Tubing 10 MM 1000MM Long

219704407

Unavailable

43

Tie Wrap 94 mm | 4X4

293750001

Unavailable

44

Hose 6 Mm 15000Mm Long

219704360

Unavailable

45

Tie Wrap 94 mm | 4X4

293750001

Unavailable

46

Grommet

293720029

Unavailable

47

Straight Fitting

293710039

Unavailable

48

Tubing 10 MM 1000MM Long

219704407

Unavailable

49

Tie Wrap 94 mm | 4X4

293750001

Unavailable

50

Oetiker Gear Clamp

293650165

Unavailable

51

Tie Wrap 368 mm

293750008

Unavailable

52

Tubing 10 MM 1000MM Long

219704407

Unavailable

53

Tie Wrap 94 mm | 4X4

293750001

Unavailable

54

SHRINK TUBING - Call your local BRP dealership

276000125

Unavailable
