1983 Suzuki XN85-D Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 1983 Suzuki XN85-D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

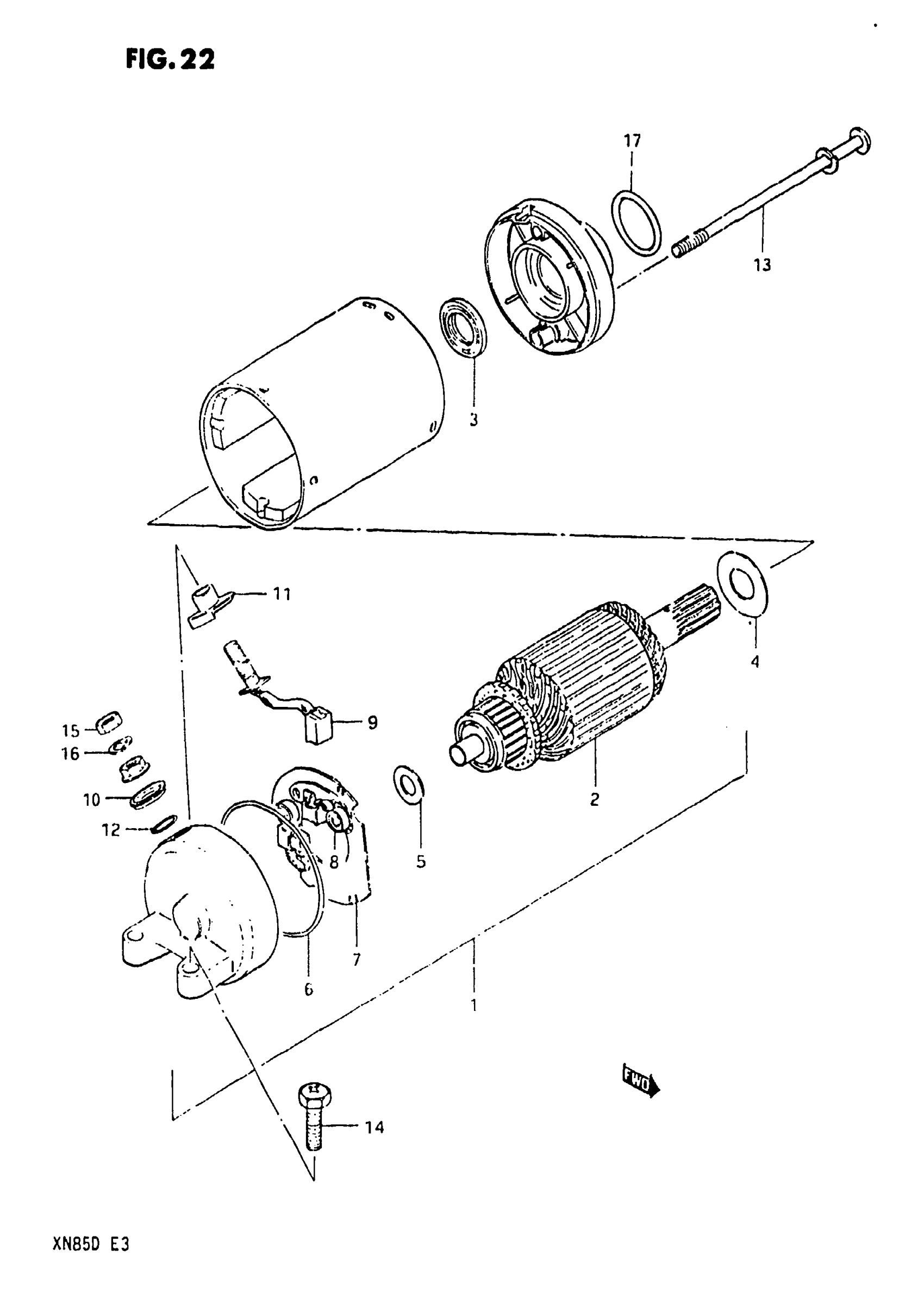

1983 Suzuki XN85-D Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY,STAR | Includes Item(s) 2 - 13 This part replaces 31100-44110.

31100-30B00-H17

1
Out of stock

2

ARMATURE This part replaces 31311-44110.

31311-49211-H17

1
Out of stock

3

OIL SEAL This part replaces 31153-45010.

31153-43400

1
Out of stock

4

SHIM (A)

31361-10200

1
Out of stock

5

.SHIM SET This part replaces 31361-47010.

31170-43400

1
Out of stock

6

O RING

31264-44110

1
Out of stock

7

BRUSH HOLDER ASSY This part replaces 31132-44110.

31132-27A01

1
Out of stock

8

SPRING

31135-65010

2
Out of stock

9

BRUSH This part replaces 31130-44110.

31130-38300

1
Out of stock

10

BUSHING (A)

31172-44110

1
Out of stock

11

BUSHING (B)

31171-44110

1
Out of stock

12

O RING

31143-44110

1
Out of stock

13

BOLT This part replaces 31281-44110.

31281-87402

2
Out of stock

14

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

2
Out of stock

15

.NUT This part replaces 08310-22068.

08310-00067

1
Out of stock

16

1

$2.28

In stock

17

.O-RING (D:3,ID:24.5)

09280-24003

1
Out of stock
