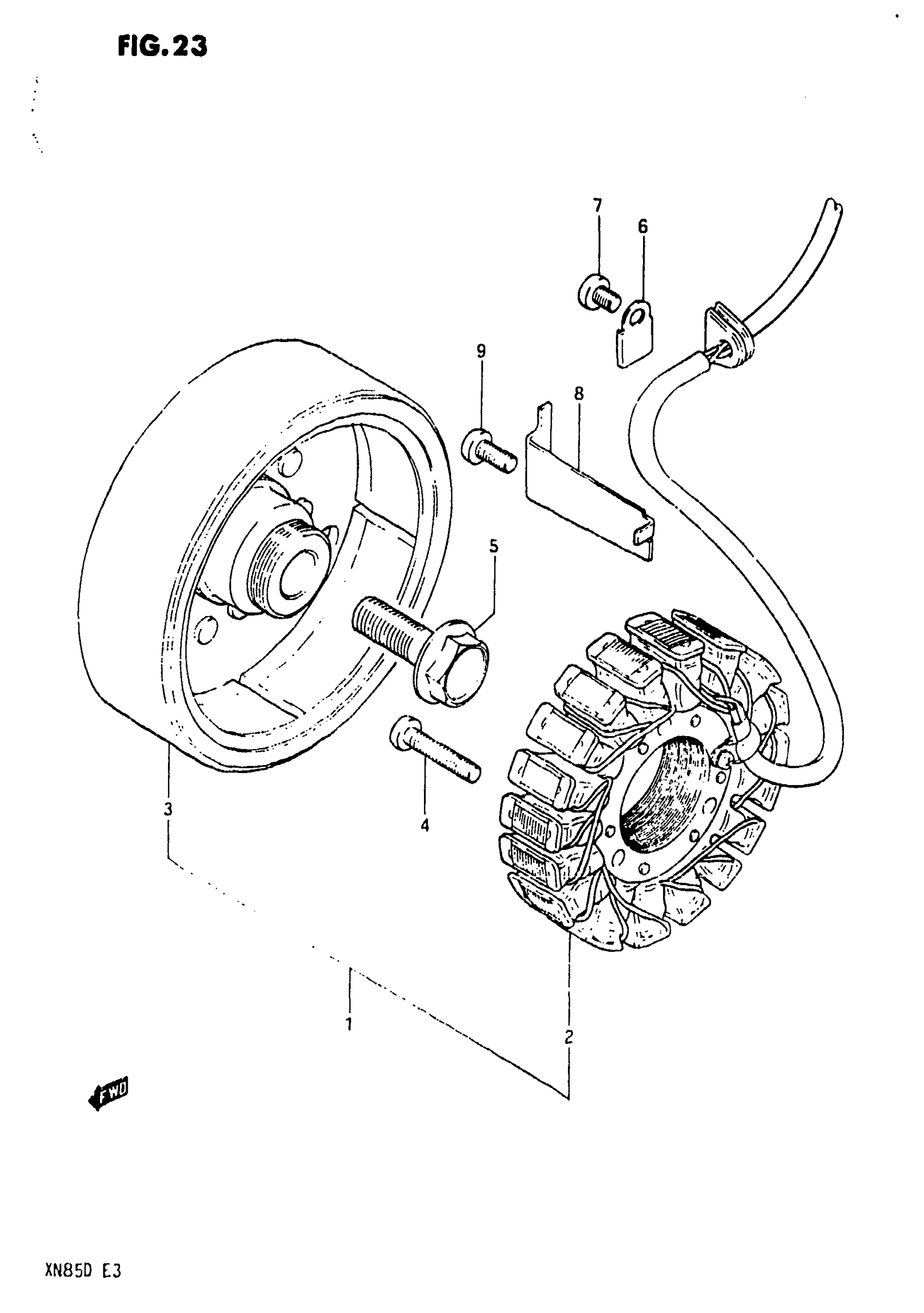

Suzuki XN85-D (1983) GENERATOR Diagram

#

Description

Price

1

STATOR | Includes Item(s) 2 - 3 This part replaces 31400-09300.

31401-09300

Unavailable

2

STATOR

31401-09300

Unavailable

3

ROTOR This part replaces 31402-09300.

31402-49330

Unavailable

4

SCREW This part replaces 02112-06308.

02112-06307

$1.99

5

BOLT

09103-14001

$12.85

6

CLAMP

31497-45000

$2.17

7

SCREW This part replaces 02112-05088.

02112-05087

$1.45

8

CLAMP

31498-45000

$2.06

9

SCREW This part replaces 02112-06108.

02112-06107

$1.45
