1983 Suzuki XN85-D Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 1983 Suzuki XN85-D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

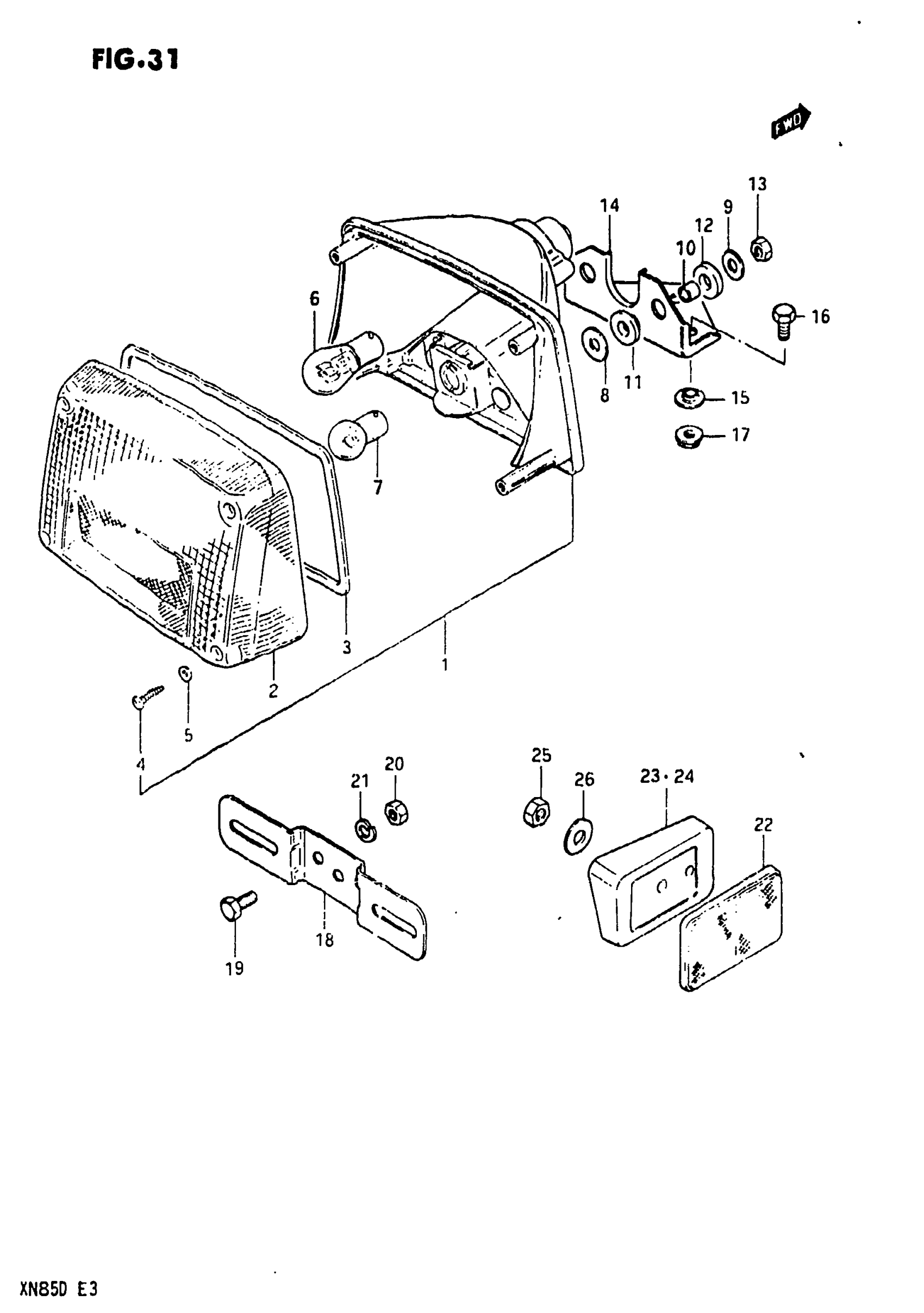

1983 Suzuki XN85-D Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP, REAR COMBINATION | Includes Item(s) 2 - 7 This part replaces 35710-49030.

35710-34310

1
Out of stock

2

LENS

35712-49031

1
Out of stock

3

GASKET

35713-49030

1
Out of stock

4

SCREW This part replaces 35627-49030.

03511-0416A

4
Out of stock

5

GASKET

35627-43010

4
Out of stock

6

BULB (12V, 32/3CP)

09471-12035

1
Out of stock

7

BULB (12V, BW) This part replaces 09471-12037.

09471-12141

1
Out of stock

8

WASHER This part replaces 09160-06007.

09160-06084

2
Out of stock

9

WASHER This part replaces 09160-06012.

09160-06054

2
Out of stock

10

SPACER

09180-06038

2
Out of stock

11

CUSHION

09320-09003

2
Out of stock

12

CUSHION

09320-09004

2
Out of stock

13

NUT This part replaces 08316-26068.

08316-2006A

2
Out of stock

14

BRACKET, TAIL LAMP

35726-33200

1
Out of stock

15

WASHER This part replaces 09169-06028.

09169-06041

3
Out of stock

16

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

3
Out of stock

17

NUT This part replaces 08316-26068.

08316-2006A

3
Out of stock

18

BRACKET, LICENSE PLATE

35927-44430

1
Out of stock

19

BOLT This part replaces 01517-06208.

01550-06207

2
Out of stock

20

.NUT This part replaces 08310-11068.

08310-00067

2
Out of stock

21

LOCK WASHER This part replaces 08321-21068.

08321-01067

2
Out of stock

22

REFLEX REFLECTOR, REAR

35970-49330

2
Out of stock

23

SPACER, RH

35977-09330

1
Out of stock

24

SPACER, LH

35978-09330

1
Out of stock

25

NUT This part replaces 08310-11058.

08310-00057

2
Out of stock

26

WASHER

09160-05013

2
Out of stock
