1983 Suzuki XN85-D Signal Generator Diagram

← All diagrams

Find the part on the Signal Generator diagram for your 1983 Suzuki XN85-D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

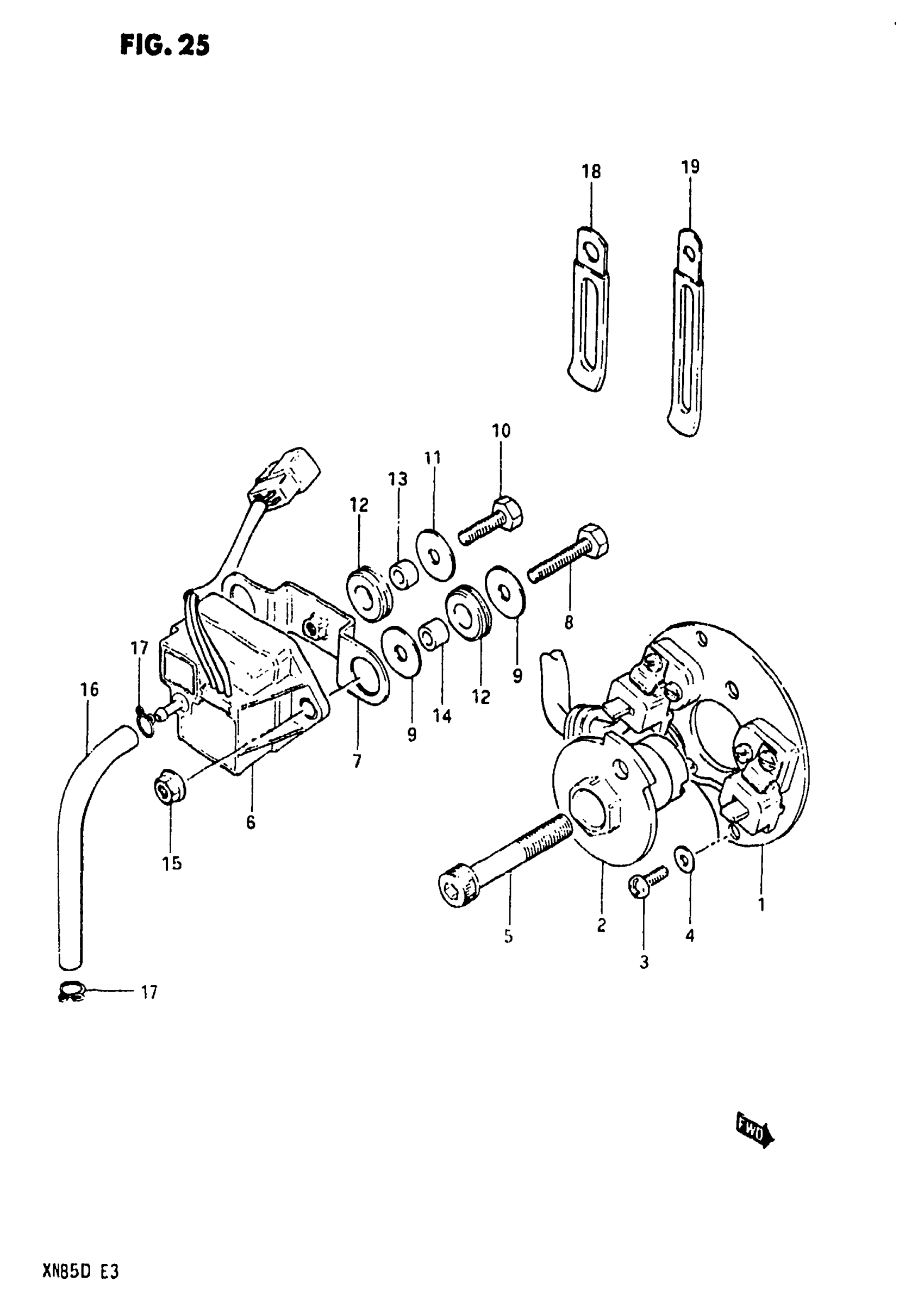

1983 Suzuki XN85-D Signal Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 33110-09300.

33110-09X50

1
Out of stock

2

ROTOR, SIGNAL

33120-09300

1
Out of stock

3

SCREW

09125-05024

2
Out of stock

4

WASHER This part replaces 09160-05028.

08322-01057

2
Out of stock

5

BOLT, MUFFLER SUPPORT This part replaces 09106-08011.

07130-0845B

1
Out of stock

6

SENSOR ASSY, PRESSURE

33240-09300

1
Out of stock

7

BRACKET

33241-09300

1
Out of stock

8

BOLT This part replaces 01107-06258.

01500-06257

2
Out of stock

9

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

4
Out of stock

10

1

$2.10

In stock

11

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

1
Out of stock

12

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

3
Out of stock

13

SPACER

09180-06038

1
Out of stock

14

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

2
Out of stock

15

NUT This part replaces 08316-16068.

08319-31067

3
Out of stock

16

HOSE, PRESSURE SENSOR

09343-03043

1
Out of stock

17

CLIP This part replaces 09401-05402.

09401-05402-XC0

2
Out of stock

18

CLAMP This part replaces 09404-06401.

09404-06039

3
Out of stock

19

CLAMP This part replaces 09404-08402.

09404-08420

2
Out of stock
