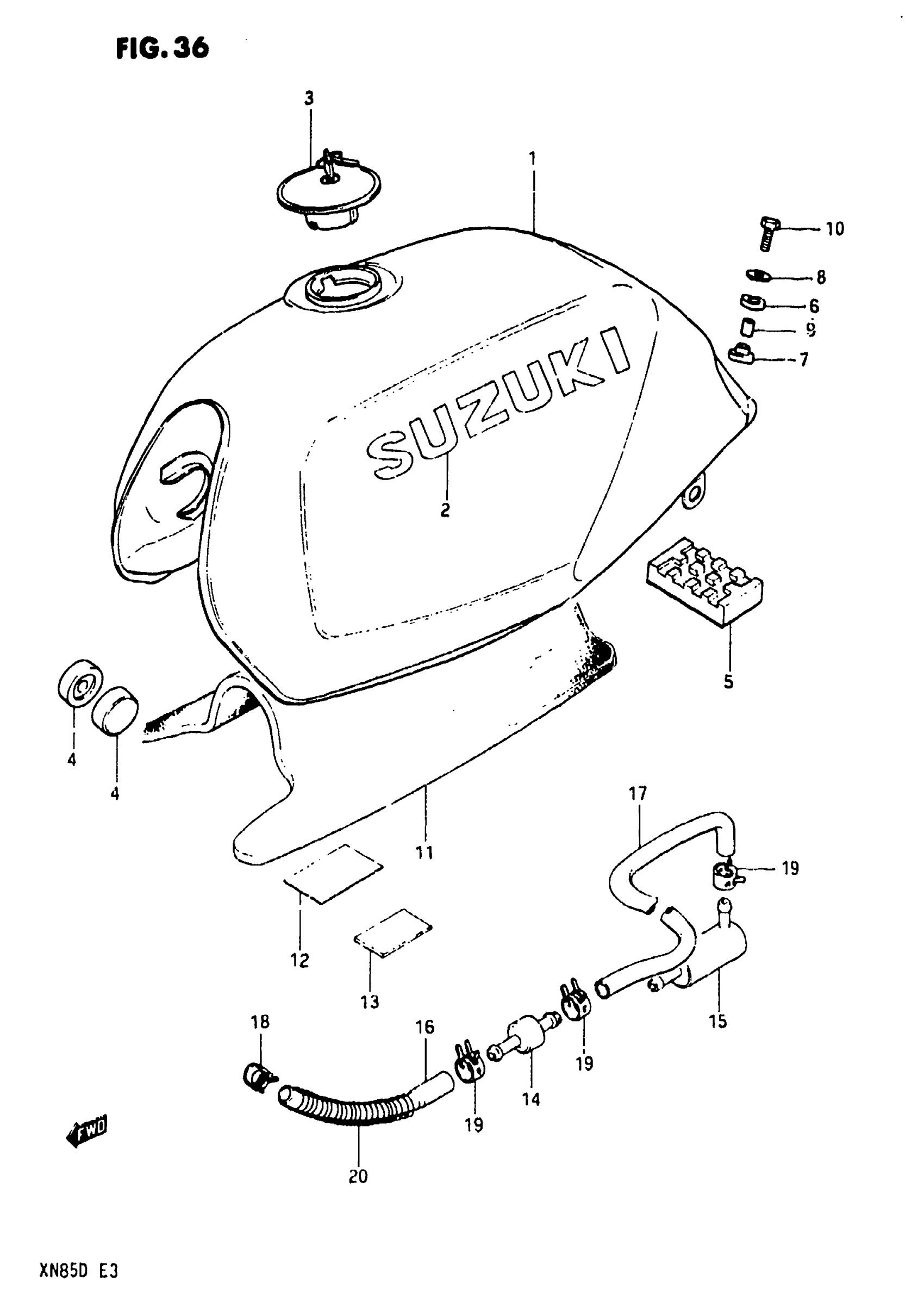

Find the part on the Fuel Tank diagram for your 1983 Suzuki XN85-D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki XN85-D Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 44100-09860-15K.

44100-09860-13L

1
Out of stock

2

EMBLEM,BLACK This part replaces 68111-09300-765.

68111-32B10-019

2
Out of stock

3

CAP, FILLER

44200-09300-KEY

1
Out of stock

4

CUSHION This part replaces 09329-10007.

09329-10026

2
Out of stock

5

CUSHION,FUEL TA This part replaces 44541-34500.

44541-34501

1
Out of stock

6

CUSHION, REAR UPPER

09320-14013

2
Out of stock

7

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

2
Out of stock

8

WASHER, FRONT This part replaces 09160-06004.

09160-06134

2
Out of stock

9

SPACER This part replaces 09180-06072.

09180-06271

2
Out of stock

10

BOLT, REAR This part replaces 01107-06308.

01500-06307

2
Out of stock

11

CUSHION, FUEL TANK INNER

44555-09300

1
Out of stock

12

TAPE

44514-09300

11
Out of stock

13

PLATE

44518-09300

11
Out of stock

14

CHECK VALVE, EVAPORATOR

44490-09300

1
Out of stock

15

CANISTER, BREATHER HOSE

44740-09300

1
Out of stock

16

HOSE, CANISTER & PURGE This part replaces 09343-05226.

09359-54111-600

1
Out of stock

17

HOSE, NO.2

09343-07118

1
Out of stock

18

CLIP

09401-11405

1
Out of stock

19

CLAMP This part replaces 09401-12401.

09401-13417

3
Out of stock

20

SPRING This part replaces 09440-13016.

09440-13052

1
Out of stock
