1983 Suzuki XN85-D Fuel Cock Diagram

← All diagrams

Find the part on the Fuel Cock diagram for your 1983 Suzuki XN85-D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

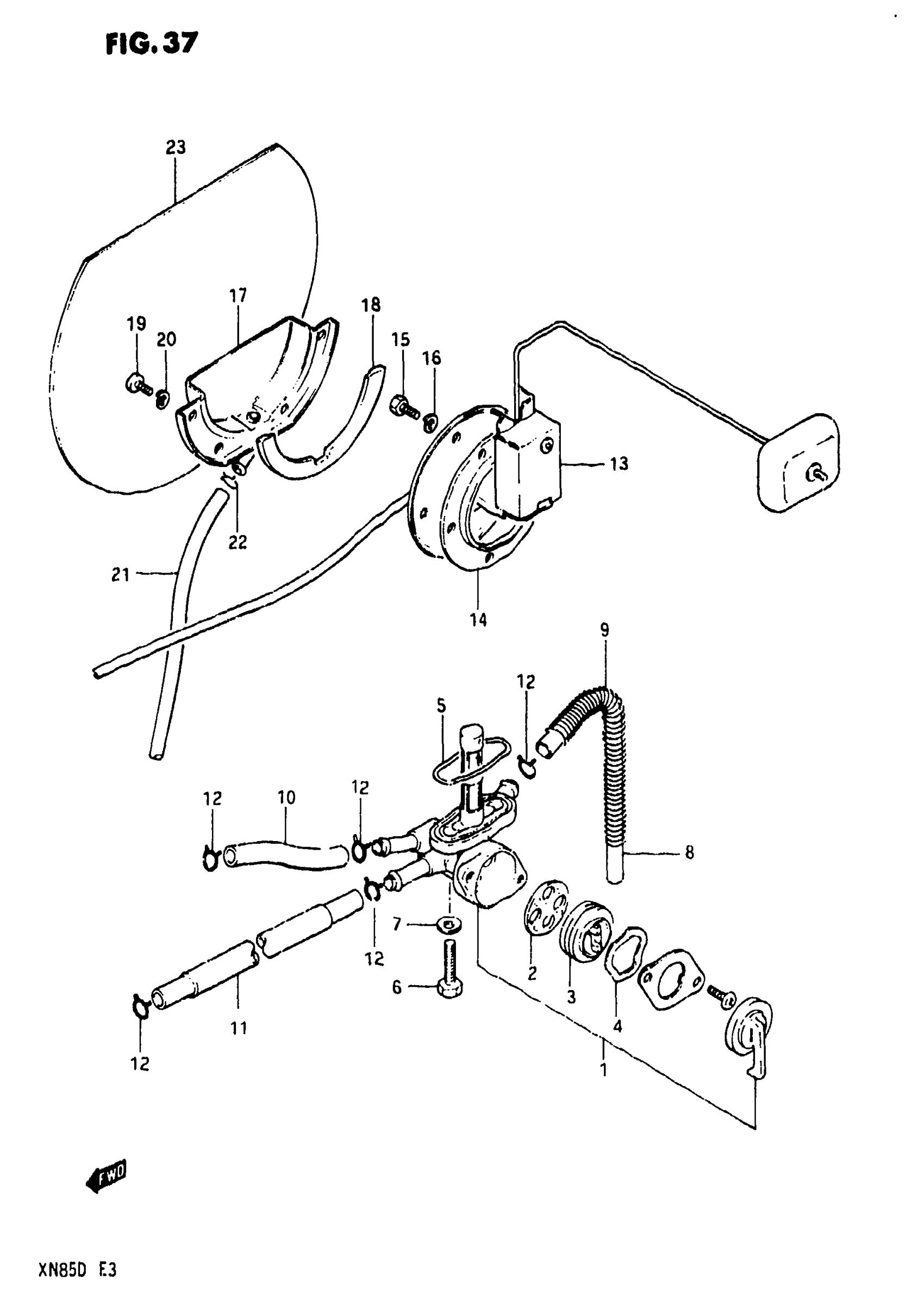

1983 Suzuki XN85-D Fuel Cock Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COCK, FUEL | Includes Item(s) 2 - 5

44300-09370

1
Out of stock

2

GASKET, LEVER

44341-09370

1
Out of stock

3

VALVE

44345-09370

1
Out of stock

4

WASHER, LEVER

44354-09370

1
Out of stock

5

FUEL COCK O RIN This part replaces 44348-09370.

44348-28071

1
Out of stock

6

BOLT This part replaces 09128-06006.

09128-06057

2
Out of stock

7

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

2
Out of stock

8

HOSE

09343-07114

1
Out of stock

9

SPRING

09440-19015

1
Out of stock

10

HOSE

09343-07115

1
Out of stock

11

HOSE

09343-07116

1
Out of stock

12

CLAMP This part replaces 09401-12401.

09401-13417

6
Out of stock

13

NO DESCRIPTION AVAILABLE | Includes Item(s) 14 This part replaces 34810-09300.

34810-09310

1
Out of stock

14

GASKET

34825-45100

1
Out of stock

15

BOLT This part replaces 01104-05108.

01500-0510B

5
Out of stock

16

LOCK WASHER This part replaces 08321-21058.

08321-0105A

5
Out of stock

17

PLATE, FUEL DRAIN

34885-34500

1
Out of stock

18

GASKET,FUEL DRA This part replaces 34888-34500.

34888-34501

1
Out of stock

19

SCREW This part replaces 02112-05088.

02112-05087

4
Out of stock

20

LOCK WASHER This part replaces 08321-21058.

08321-0105A

4
Out of stock

21

HOSE This part replaces 09343-05165.

09352-50005-00B

1
Out of stock

22

CLIP

09401-08402

1
Out of stock

23

PROTECTOR, FUEL LEVEL GAUGE

34889-09300

1
Out of stock
