1983 Suzuki XN85-D AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1983 Suzuki XN85-D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

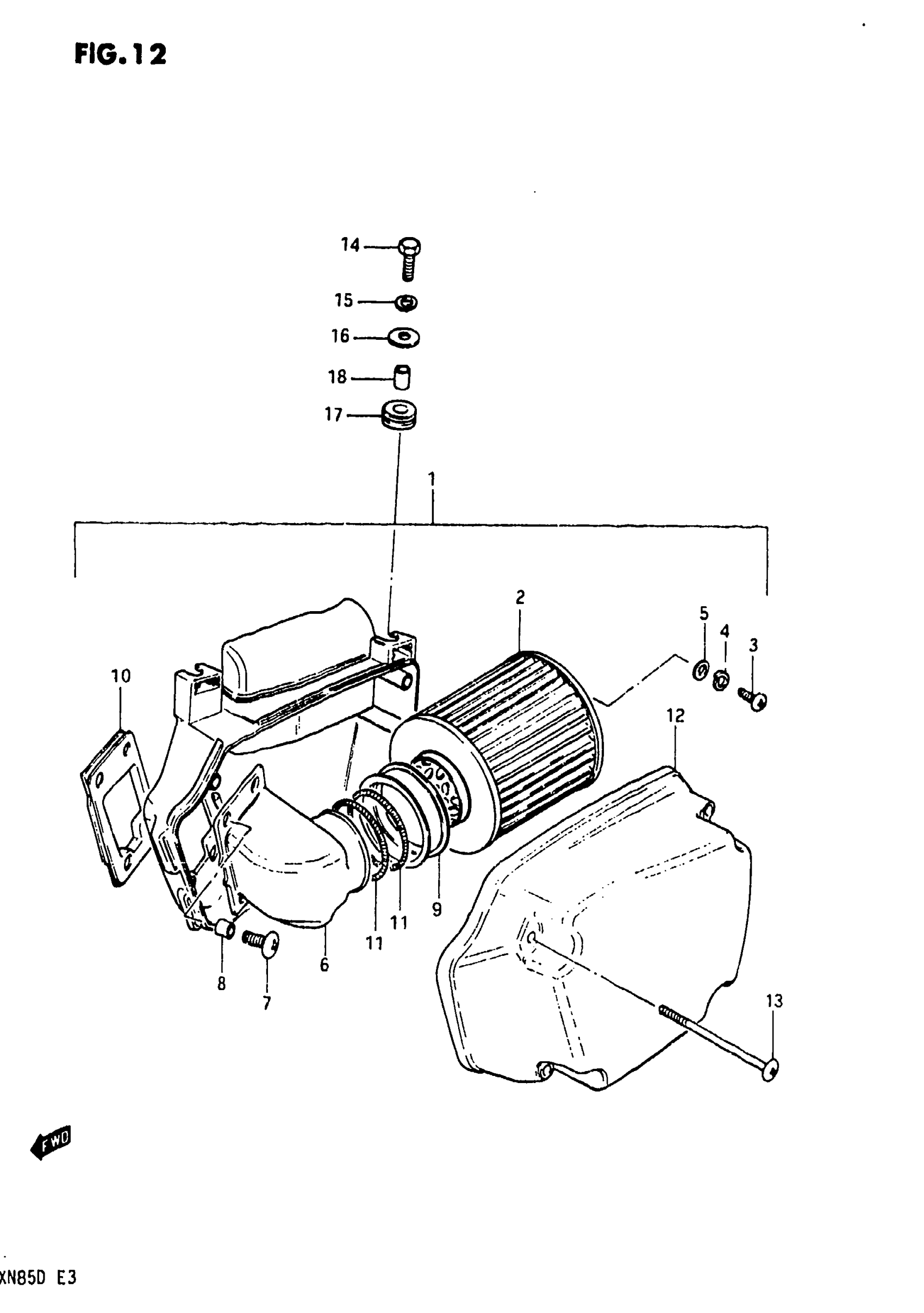

1983 Suzuki XN85-D AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 13 This part replaces 13700-09303.

13700-09304

1
Out of stock

2

FILTER ASSY

13780-09300

1
Out of stock

3

SCREW This part replaces 02112-05128.

02112-05127

1
Out of stock

4

LOCK WASHER This part replaces 08321-21058.

08321-0105A

1
Out of stock

5

WASHER This part replaces 08322-21058.

08322-01057

1
Out of stock

6

OUTLET, AIR

13881-09300

1
Out of stock

7

SCREW This part replaces 02142-06158.

02142-06167

4
Out of stock

8

SPACER

13838-09300

4
Out of stock

9

JOINT

13739-09300

1
Out of stock

10

GASKET

13884-09300

1
Out of stock

11

CLAMP

13826-17300

2
Out of stock

12

CAP

13740-09300

1
Out of stock

13

SCREW

02142-05758

4
Out of stock

14

BOLT, GEAR SHIFT ARM This part replaces 09100-06039.

01500-0625A

2
Out of stock

15

2

$2.28

In stock

16

WASHER This part replaces 09160-06007.

09160-06084

2
Out of stock

17

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

2
Out of stock

18

SPACER

09180-06038

2
Out of stock
