1981 Yamaha XJ750R (XJ750RH) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1981 Yamaha XJ750R (XJ750RH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

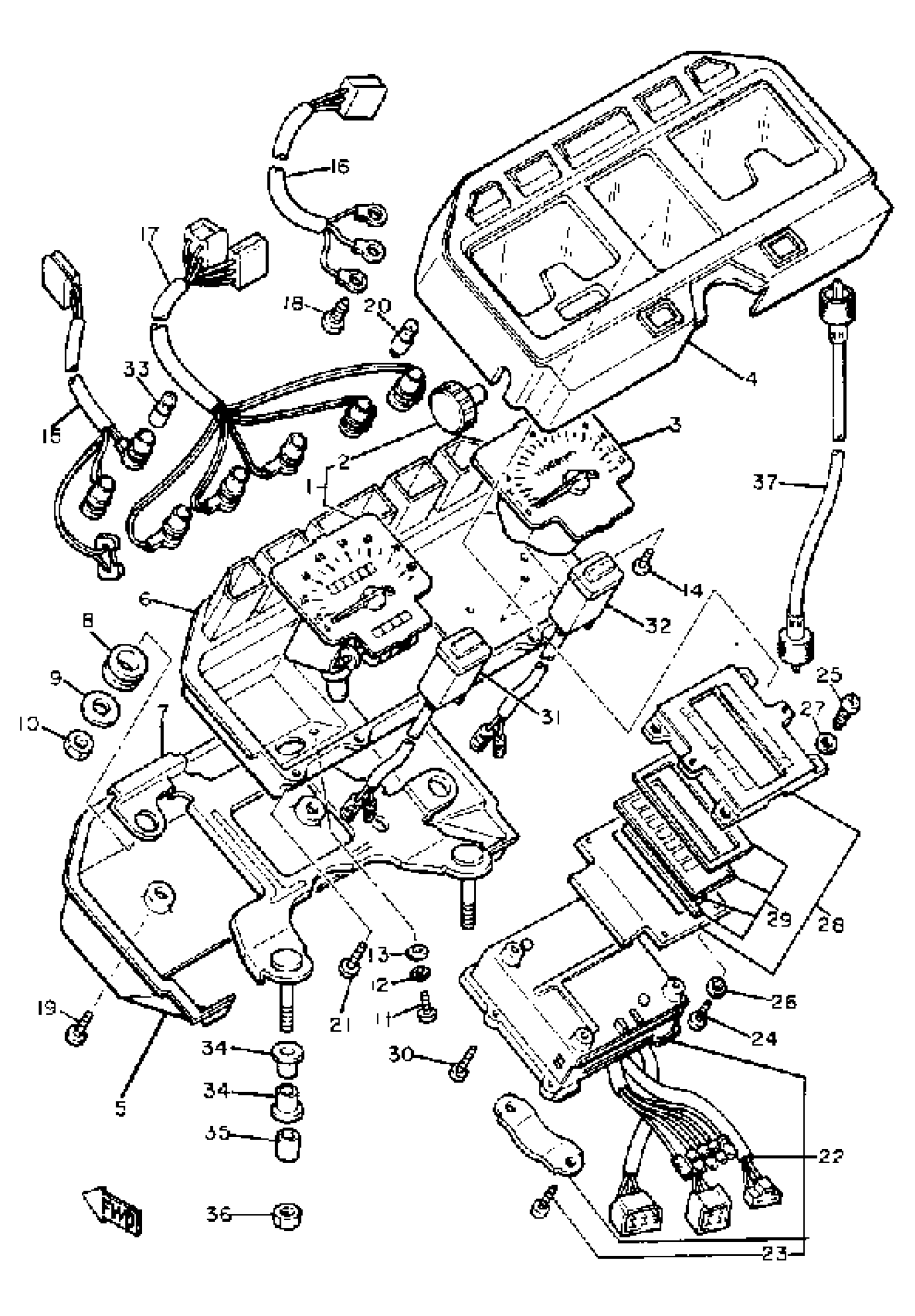

1981 Yamaha XJ750R (XJ750RH) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

5G2-83570-A0-00

1
Out of stock

2

. KNOB, TRIP METER

4U8-83578-00-00

1
Out of stock

3

TACHOMETER ASSEMBLY

5G8-83540-00-00

1
Out of stock

4

COVER, METER

5G2-83559-00-00

1
Out of stock

5

COVER METER 2

24L-83579-00-00

1
Out of stock

6

CASE, INNER

24L-8353H-00-00

1
Out of stock

7

BRACKET, METER

5G2-83519-00-00

1
Out of stock

8

DAMPER

5G2-83523-00-00

1
Out of stock

9

WASHER, PLATE

90201-06020-00

1

$6.28

In stock

10

NUT(650)

95380-06700-00

1

$6.17

In stock

11

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

12

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

13

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

14

SCREW, WITH WASHER

90159-04043-00

1
Out of stock

15

. SOCKET CORD ASSEMBLY (15R-83520-00)

4U8-83520-00-00

1
Out of stock

16

SOCKET CORD ASSEMBLY (5G2-83520-10)

15R-83520-10-00

1
Out of stock

17

SOCKET CORD ASSEMBLY

5G2-83509-00-00

1
Out of stock

18

SCREW, WITH WASHER

90159-03044-00

1
Out of stock

19

SCREW, TAPPING (5G2)

90164-04006-00

—
Out of stock

20

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

21

SCREW, TAPPING (5G2)

90164-04006-00

—
Out of stock

22

PRINT BOARD ASSEMBLY

5G2-W8352-00-00

1
Out of stock

23

SCREW, TAPPING (97702-40508-00)

97701-40508-00

1
Out of stock

24

SCREW, TAPPING

(97702-30510-00)

1
Out of stock

25

SCREW, OVAL HEAD TAPPING

97780-40112-00

1
Out of stock

26

WASHER(3SX)

92907-03600-00

—

$6.69

In stock

27

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

28

LCD UNIT HLDR SET

5G2-W8353-01-00

1
Out of stock

29

LCD UNIT SET

5G2-W8351-01-00

1
Out of stock

30

SCREW, TAPPING (5G2)

90164-04006-00

—
Out of stock

31

SWITCH, METER CNTRL (5G2-8358J-20)

5G2-8358J-10-00

1
Out of stock

32

SWITCH, METER CNTRL (5G2-8358J-20)

5G2-8358J-10-00

1
Out of stock

33

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

34

DAMPER, METER BRACKET

584-83541-00-00

—
Out of stock

35

COLLAR (877)

90387-06249-00

—
Out of stock

36

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

37

SPEEDOMETER CABLE

5K5-83550-00-00

1
Out of stock
