1981 Yamaha XJ750R (XJ750RH) Headlight Diagram

← All diagrams

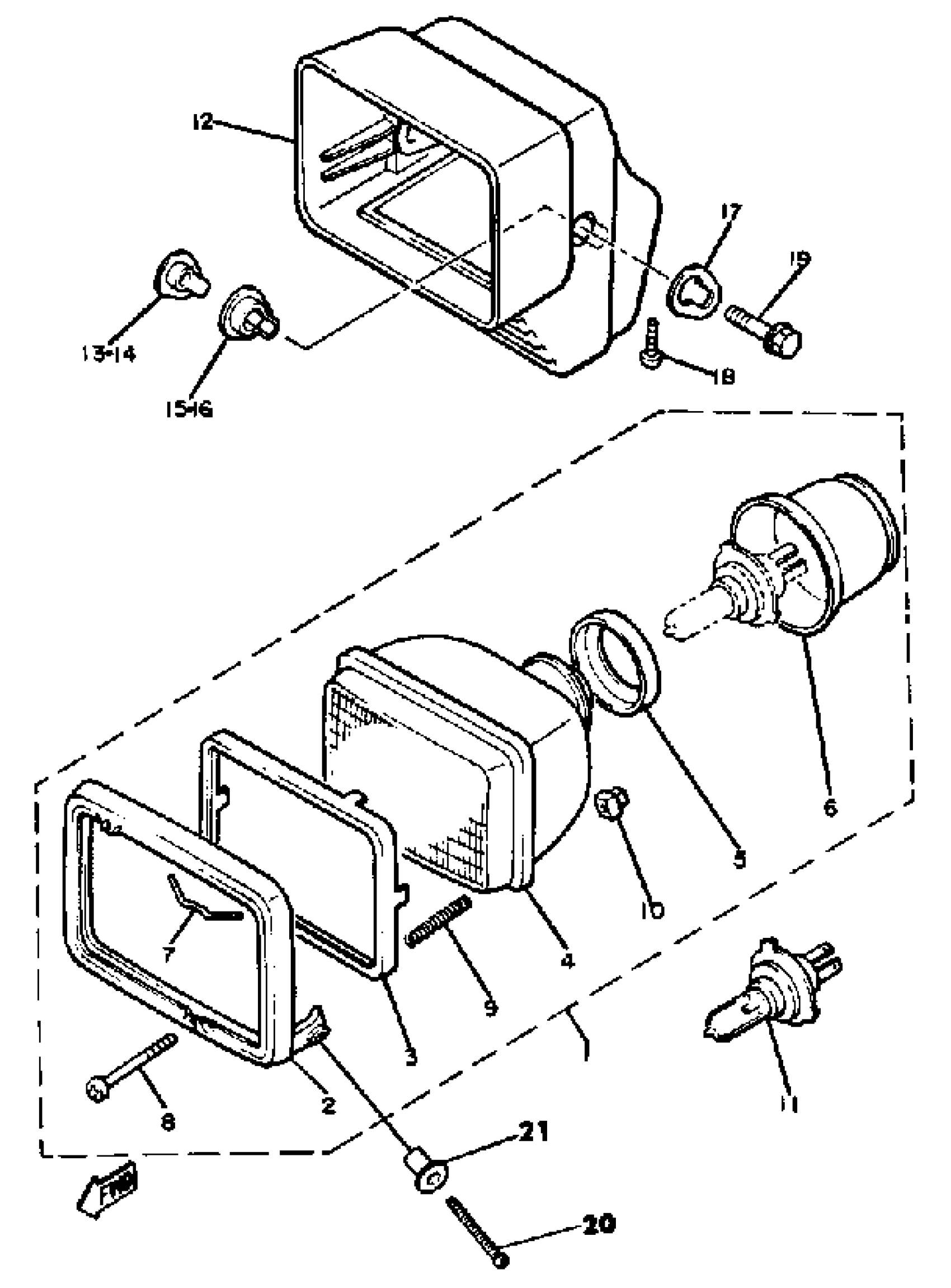

Find the part on the Headlight diagram for your 1981 Yamaha XJ750R (XJ750RH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XJ750R (XJ750RH) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSEMBLY

5G2-84303-A0-00

1
Out of stock

2

. RIM, HEADLIGHT

5G2-84315-00-00

1
Out of stock

3

RING, RETAINING

(5G2-84395-00-00)

1
Out of stock

4

. LENS, HEADLIGHT

5G2-84321-A0-00

1
Out of stock

5

SETTING PLATE, BULB

2F9-84375-00-00

—

$12.66

In stock

6

COVER, SOCKET

2F9-84397-01-00

1

$27.82

In stock

7

SET SPRING

55X-84124-00-00

1

$10.82

In stock

8

SCREW, PANHEAD (4G7)

98580-04055-00

—

$7.02

In stock

9

SPRING, ADJUST

341-84332-60-00

1

$8.54

In stock

10

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

11

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

12

BODY ASSEMBLY

5G2-84330-00-00

1
Out of stock

13

COLLAR 1

5G2-84388-00-00

—

$13.17

In stock

14

. SCREW, MNTNG RING

5G2-84398-00-00

1
Out of stock

15

BUSHING 1

5G2-84366-00-00

—

$12.92

In stock

16

. DAMPER, HEADLIGHT 2

5G2-84367-00-00

1
Out of stock

17

BUSHING

5G2-84368-00-00

—

$7.77

In stock

18

SCREW, PAN TAP.2 SLIT

97707-40612-00

—

$5.28

In stock

19

BOLT, SMALL FLANGE

95027-08030-00

—
Out of stock

20

UNAVAILABLE IN PRICE BOOK

95806-05012-00

1
Out of stock

21

COLLAR, SCREW

5G2-84333-00-00

—

$2.57

In stock
