1981 Yamaha XJ750R (XJ750RH) Flasher Light Diagram

← All diagrams

Find the part on the Flasher Light diagram for your 1981 Yamaha XJ750R (XJ750RH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

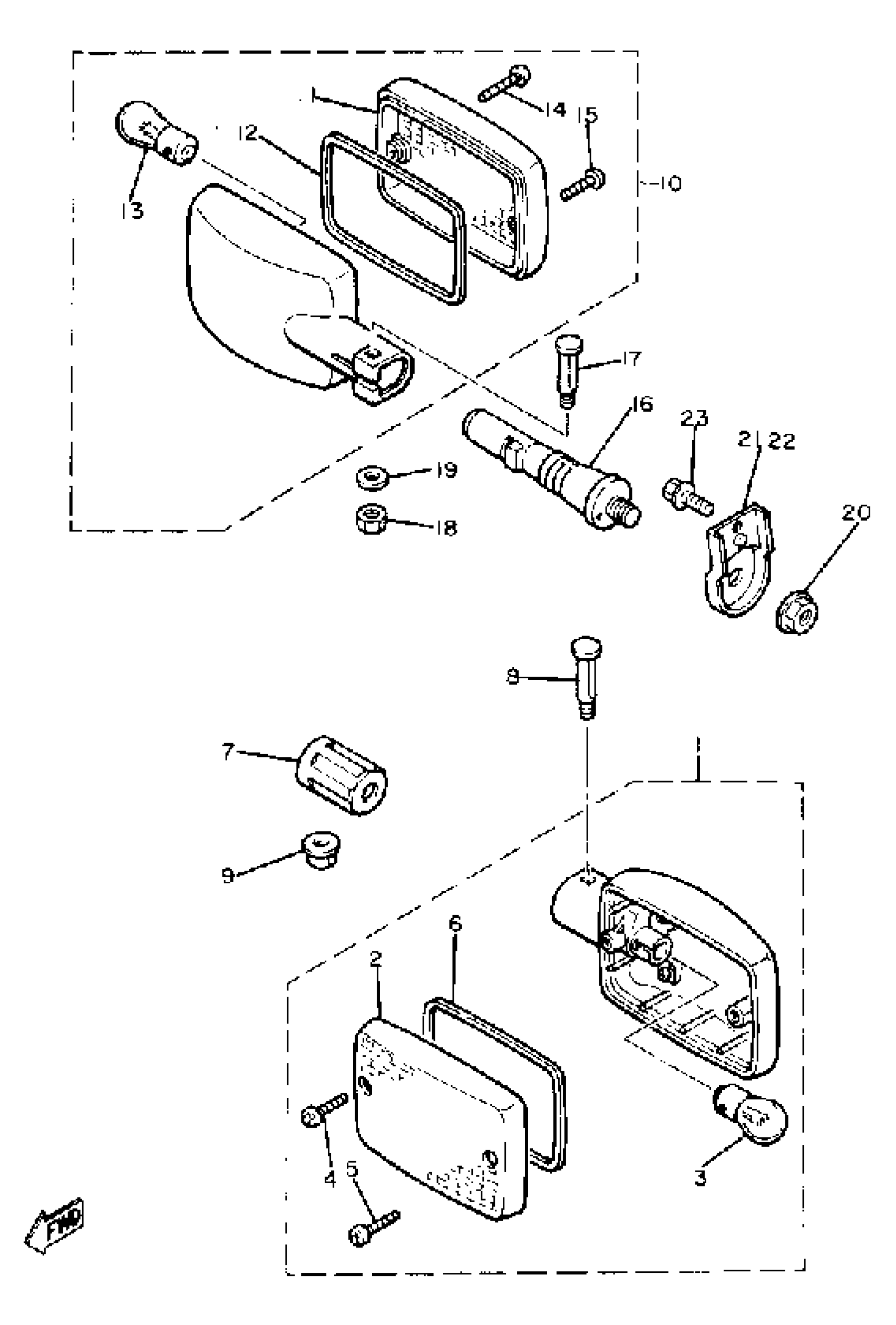

1981 Yamaha XJ750R (XJ750RH) Flasher Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FLASHER LIGHT ASS''Y (11H-83301-70)

5G2-83310-70-00

1
Out of stock

2

LENS, FLASHER

5G2-83312-00-00

1
Out of stock

3

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

4

SCREW, PAN HEAD

98507-04018-00

1
Out of stock

5

SCREW, TAPPING (FJ1)

97780-40535-00

1
Out of stock

6

. GASKET, FLASHER LENS

5G2-83313-00-00

1
Out of stock

7

DAMPER, FLASHER 1

4L0-83321-00-00

1
Out of stock

8

BOLT, flasher 1

5G2-83317-00-00

1
Out of stock

9

NUT, FLANGE(3GM)

95707-05500-00

1
Out of stock

10

REAR FLASHER LIGHT ASS''Y

5G2-83303-70-00

1
Out of stock

11

LENS, FLASHER

5G2-83312-00-00

1
Out of stock

12

. GASKET, FLASHER LENS

5G2-83313-00-00

1
Out of stock

13

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

14

SCREW, TAPPING (FJ1)

97780-40535-00

1
Out of stock

15

SCREW, PAN HEAD

98507-04018-00

1
Out of stock

16

STAY, FLASHER 1

4G0-83318-00-00

1
Out of stock

17

BOLT, flasher 1

5G2-83317-00-00

1
Out of stock

18

NUT, HEXAGON

95317-05600-00

—
Out of stock

19

WASHER(1RW)

92907-05600-00

—
Out of stock

20

NUT(3GG)

90179-12588-00

—
Out of stock

21

STAY, FLASHER

5G2-83368-00-00

1
Out of stock

22

STAY, FLASHER

5G2-83369-00-00

1
Out of stock

23

BOLT, FLANGE(JN5)

95817-08016-00

—
Out of stock
