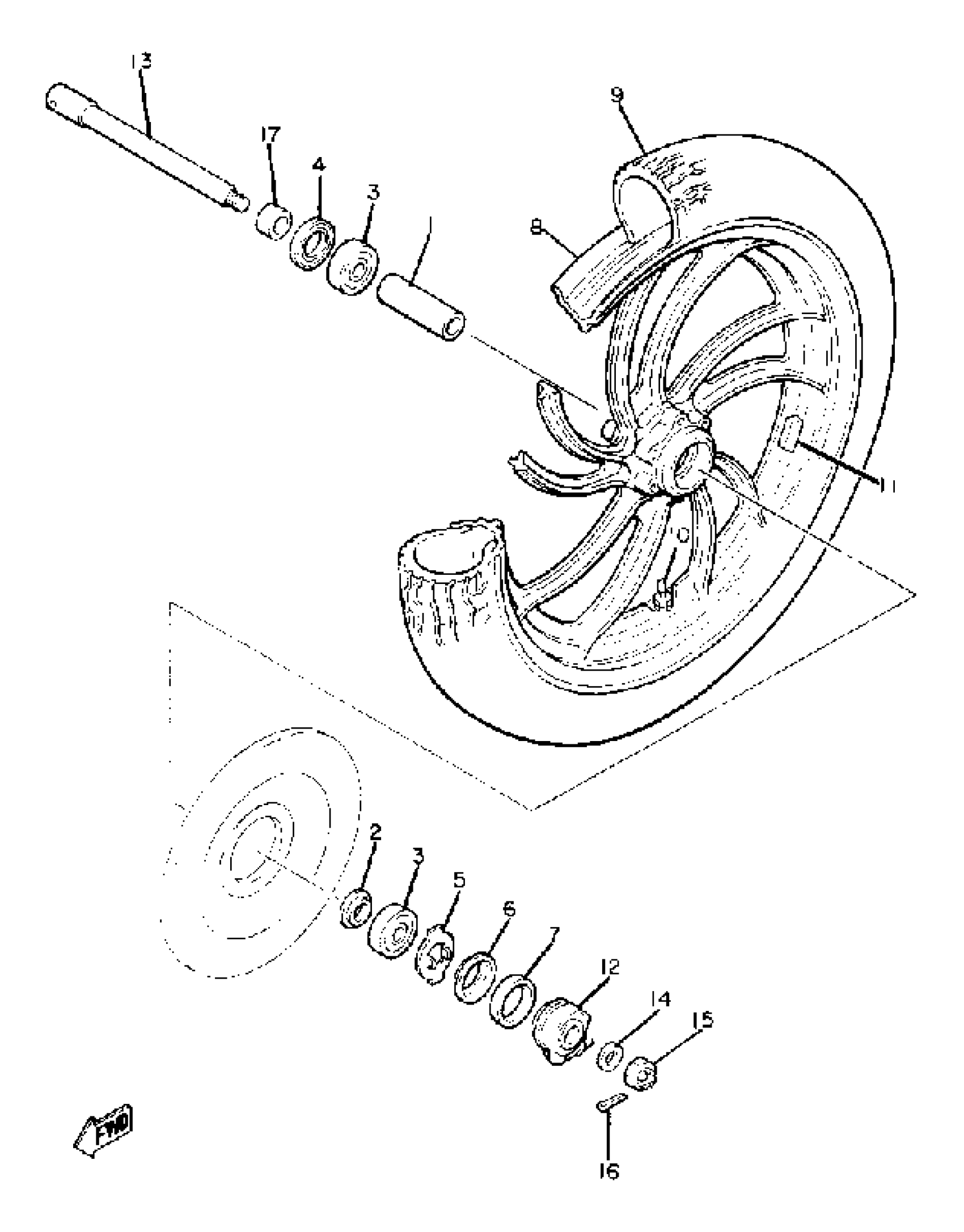

Yamaha XJ750RH (XJ750R) 1981 FRONT WHEEL Diagram

#

Description
Price

1

SPACER

90560-15116-00

Unavailable

2

FLANGE, SPACER

146-25115-00-00

$5.75

3

BEARING

93306-30212-00

$32.01

4

OIL SEAL (22X42X7)

93102-22014-00

$9.99

5

CLUTCH, METER (371,447)

341-25149-00-00

$6.15

6

RETAINER, CLUTCH (371,447)

341-25846-00-00

$6.44

7

OIL SEAL (45X56X6)

93105-45017-00

$10.74

8

WHEEL, CAST FRONT

4H7-25168-29-98

Unavailable

9

325H19 L303TL #TBB (3.25-19) (94132-1946)

94132-193M3-00

Unavailable

10

VALVE, RIM (31A)

93900-00031-00

$14.39

11

BALANCER, WHEEL

5MT-25398-00-00

$14.51

11

BALANCER, WHEEL

5MT-25398-00-00

$14.51

11

BALANCER, WHEEL

5MT-25398-00-00

$14.51

12

GEAR UNIT ASSEMBLY

4H7-25190-00-00

Unavailable

13

AXLE, WHEEL

4H7-25181-01-00

Unavailable

14

WASHER, PLAIN

92990-14200-00

Unavailable

15

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

16

PIN, COTTER

91490-30030-00

Unavailable

17

COLLAR (1Y8)

90387-15734-00

Unavailable
