1981 Yamaha XJ750R (XJ750RH) Front Fork Diagram

← All diagrams

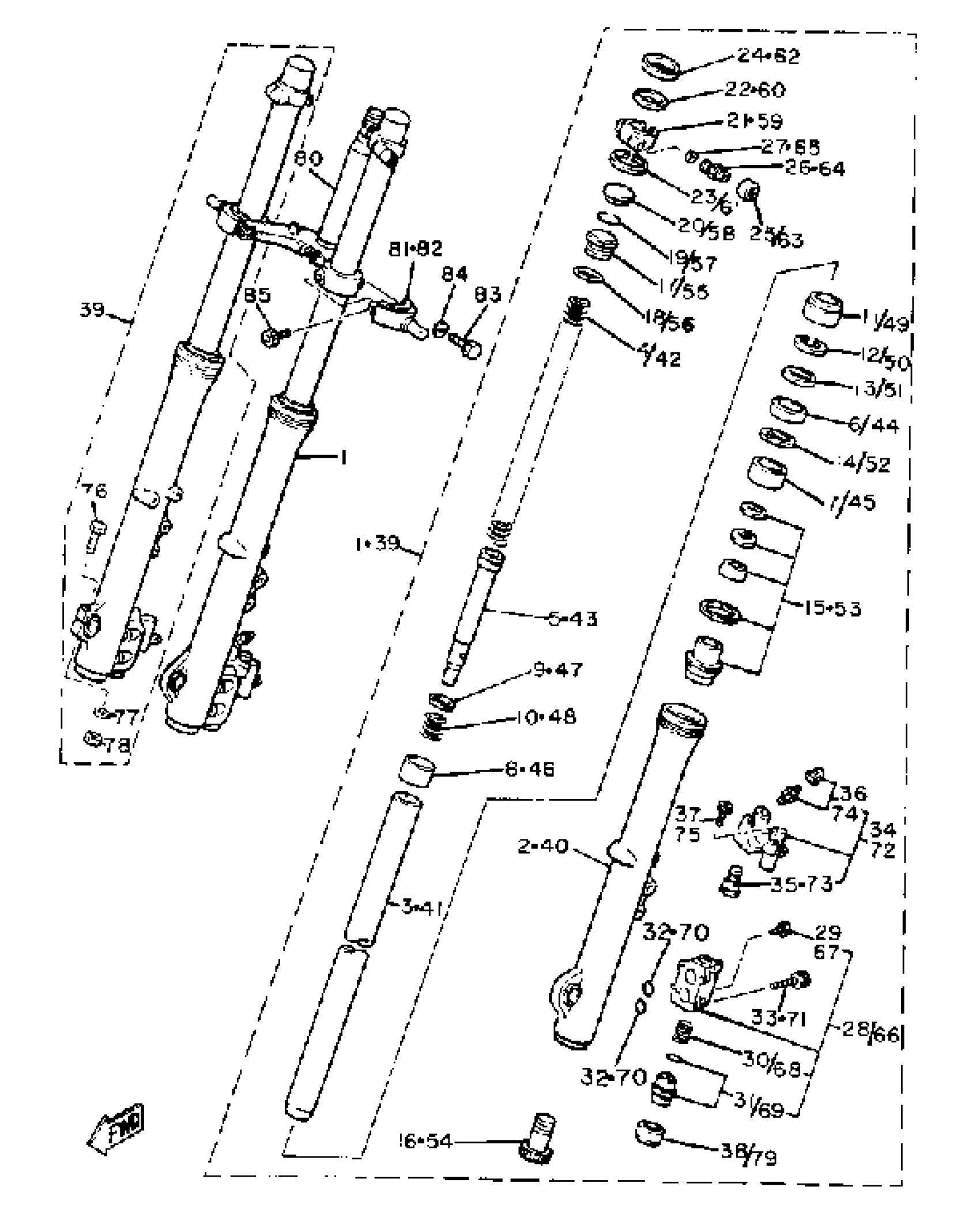

Find the part on the Front Fork diagram for your 1981 Yamaha XJ750R (XJ750RH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XJ750R (XJ750RH) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L

5G2-23102-01-00

1
Out of stock

2

TUBE, OUTER (LEFT)

5G2-23126-00-00

—

$131.74

In stock

3

. INNER TUBE 1

5G2-23110-00-00

1
Out of stock

4

. SPRING, FRONT FORK

5G2-23141-00-00

1
Out of stock

5

. CYLINDER, FRTFRK

5G2-23170-00-00

1
Out of stock

6

OIL SEAL

1KH-23145-00-00

1

$21.69

In stock

7

. METAL, SLIDE 1

5G2-23125-00-00

1
Out of stock

8

. METAL, SLIDE 2

3H3-23135-00-00

1
Out of stock

9

. RING, PISTON FRONT FORK (2F3-23157-00)

1T4-23157-01-00

1
Out of stock

10

. SPRING, REBOUND

1J3-23151-00-00

1
Out of stock

11

SEAL, DUST

1KH-23144-00-00

1

$24.63

In stock

12

CLIP, OIL SEAL

34X-23156-00-00

1

$7.51

In stock

13

WASHER, OIL SEAL

(3J6-23146-00-00)

1
Out of stock

14

O-RING

1KH-23147-00-00

1

$22.83

In stock

15

. OIL-LOCK VALVE ASSEMBLY

5G2-W2311-00-00

1
Out of stock

16

BOLT

3M7-23181-00-00

—

$7.75

In stock

17

. BOLT, CAP

1T4-23111-00-00

1
Out of stock

18

O-R1NG(N04)

93210-221A0-00

—

$6.32

In stock

19

. CIRCLIP

1J3-23183-01-00

1
Out of stock

20

. CAP, FRONT FORK

1J3-23168-00-00

1
Out of stock

21

. JOINT, AIR

5G2-2319A-00-00

1
Out of stock

22

. O-RING

5G2-23188-00-00

1
Out of stock

23

. RING, SNAP

5G2-23153-00-00

1
Out of stock

24

GASKET

5G2-23163-00-00

1
Out of stock

25

. CAP, AIR VALVE

27H-23184-00-00

1
Out of stock

26

. AIR VALVE

5K7-23190-00-00

1
Out of stock

27

O-RING (26H)

93210-06632-00

—

$6.68

In stock

28

. DAMPER PISTON ASSEMBLY

5G2-2319E-00-00

1
Out of stock

29

. PLUG, DRAIN

1E7-23119-00-00

1
Out of stock

30

SPRING, SUB

(5G2-23152-00-00)

1
Out of stock

31

SPRING SEAT

(5G2-2319N-00-00)

1
Out of stock

32

. O-RING

5G2-23147-00-00

1
Out of stock

33

BOLT 1

(5G2-23346-00-00)

1
Out of stock

34

. BRAKE PLNGR ASSEMBLY 1

5G2-2319F-00-00

1
Out of stock

35

.. PLUNGER KIT

5G2-2319K-00-00

1
Out of stock

36

BLEED SCREW KIT

1J3-W0048-00-00

—

$26.16

In stock

37

BOLT 2

(5G2-23356-00-00)

1
Out of stock

38

. CAP

5G2-2319U-00-00

1
Out of stock

39

FRONT FORK ASSEMBLY R

5G2-23103-01-00

1
Out of stock

40

TUBE, OUTER 2

(5G2-23136-00-00)

1
Out of stock

41

. INNER TUBE 1

5G2-23110-00-00

1
Out of stock

42

. SPRING, FRONT FORK

5G2-23141-00-00

1
Out of stock

43

. CYLINDER, FRTFRK

5G2-23170-00-00

1
Out of stock

44

OIL SEAL

1KH-23145-00-00

1

$21.69

In stock

45

. METAL, SLIDE 1

5G2-23125-00-00

1
Out of stock

46

. METAL, SLIDE 2

3H3-23135-00-00

1
Out of stock

47

. RING, PISTON FRONT FORK (2F3-23157-00)

1T4-23157-01-00

1
Out of stock

48

. SPRING, REBOUND

1J3-23151-00-00

1
Out of stock

49

SEAL, DUST

1KH-23144-00-00

1

$24.63

In stock

50

CLIP, OIL SEAL

34X-23156-00-00

1

$7.51

In stock

51

WASHER, OIL SEAL

(3J6-23146-00-00)

1
Out of stock

52

O-RING

1KH-23147-00-00

1

$22.83

In stock

53

. OIL-LOCK VALVE ASSEMBLY

5G2-W2311-00-00

1
Out of stock

54

BOLT

3M7-23181-00-00

—

$7.75

In stock

55

. BOLT, CAP

1T4-23111-00-00

1
Out of stock

56

O-R1NG(N04)

93210-221A0-00

—

$6.32

In stock

57

. CIRCLIP

1J3-23183-01-00

1
Out of stock

58

. CAP, FRONT FORK

1J3-23168-00-00

1
Out of stock

59

. JOINT, AIR

5G2-2319A-00-00

1
Out of stock

60

. O-RING

5G2-23188-00-00

1
Out of stock

61

. RING, SNAP

5G2-23153-00-00

1
Out of stock

62

GASKET

5G2-23163-00-00

1
Out of stock

63

. CAP, AIR VALVE

27H-23184-00-00

1
Out of stock

64

. AIR VALVE

5K7-23190-00-00

1
Out of stock

65

O-RING (26H)

93210-06632-00

—

$6.68

In stock

66

. DAMPER PISTON ASSEMBLY

5G2-2319E-00-00

1
Out of stock

67

. PLUG, DRAIN

1E7-23119-00-00

1
Out of stock

68

SPRING, SUB

(5G2-23152-00-00)

1
Out of stock

69

SPRING SEAT

(5G2-2319N-00-00)

1
Out of stock

70

. O-RING

5G2-23147-00-00

1
Out of stock

71

BOLT 1

(5G2-23346-00-00)

1
Out of stock

72

BRAKE PLNGR ASSEMBLY 2

(5G2-2319G-00-00)

1
Out of stock

73

.. PLUNGER KIT

5G2-2319K-00-00

1
Out of stock

74

BLEED SCREW KIT

1J3-W0048-00-00

—

$26.16

In stock

75

BOLT 2

(5G2-23356-00-00)

1
Out of stock

76

BOLT(3HN)

97017-08045-00

—

$5.80

In stock

77

. WASHER, SPRING LWR

3J3-23159-00-00

1
Out of stock

78

. NUT, OUTER TUBE

4H3-23127-00-00

1
Out of stock

79

. CAP

5G2-2319U-00-00

1
Out of stock

80

UNDER, BRACKET

11M-23340-20-90

1
Out of stock

81

COVER, OUTER 2

5G2-23132-00-00

1
Out of stock

82

COVER, OUTER 1

5G2-23122-00-00

1
Out of stock

83

BOLT

97014-08040-00

—

$5.26

In stock

84

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

85

BOLT, UPPER

(5G2-23366-00-00)

1
Out of stock
