1982 Yamaha XJ750 (XJ750J) Meter Diagram

← All diagrams

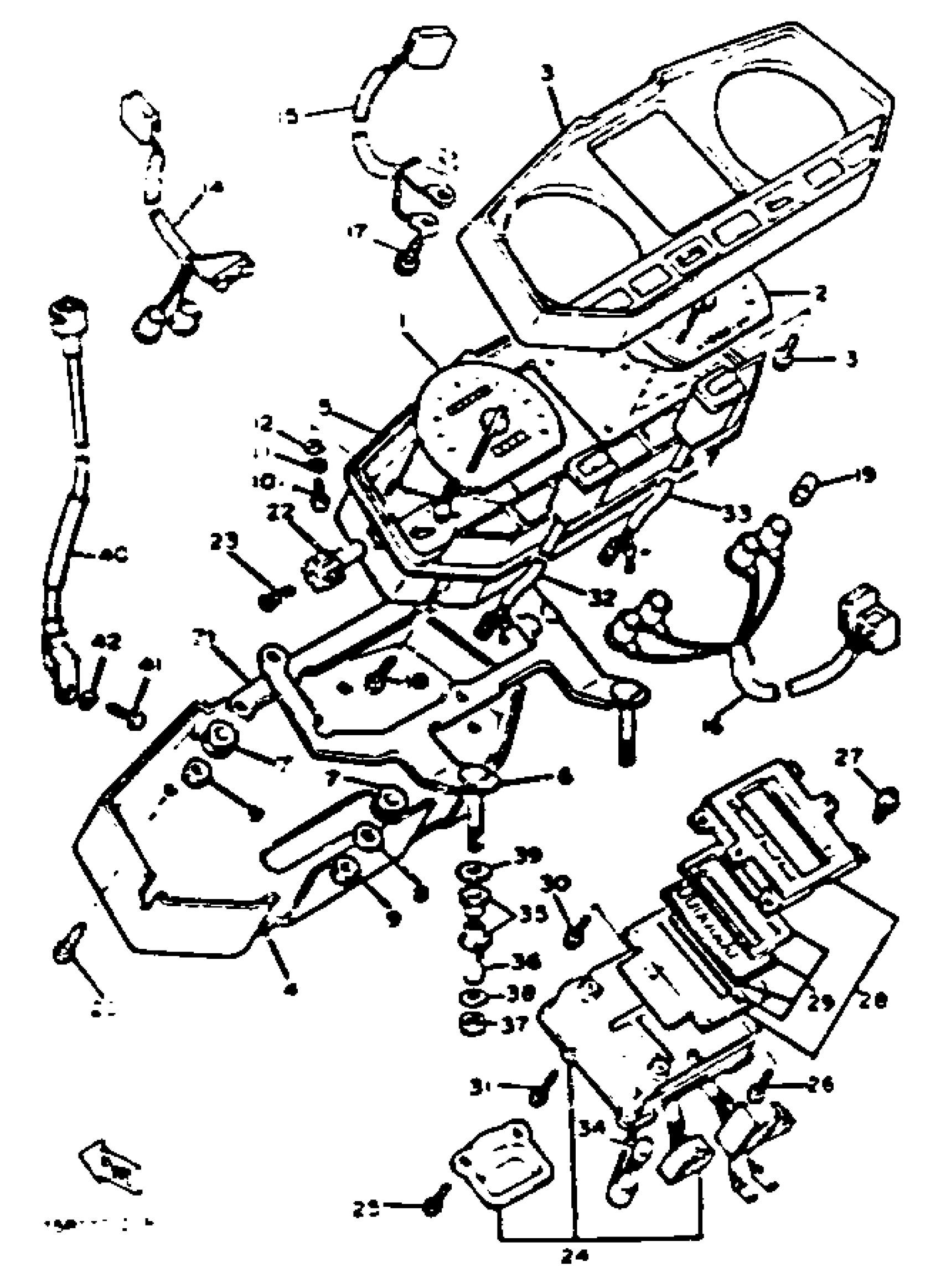

Find the part on the Meter diagram for your 1982 Yamaha XJ750 (XJ750J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XJ750 (XJ750J) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

15R-83570-A0-00

1
Out of stock

2

TACHOMETER ASSEMBLY

15R-83540-00-00

1
Out of stock

3

COVER, METER

15R-83559-00-00

1
Out of stock

4

COVER, METER 2

15R-83579-00-00

1
Out of stock

5

CASE, INNER

15R-8353H-00-00

1
Out of stock

6

BRACKET, METER

15R-83519-00-00

1
Out of stock

7

DAMPER

4X7-83523-00-00

1

$10.80

In stock

8

WASHER PLATE 803835240000

90201-05032-00

—

$6.71

In stock

9

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

10

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

12

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

13

SCREW, WITH WASHER

90159-04043-00

1
Out of stock

14

. SOCKET CORD ASSEMBLY (15R-83520-00)

4U8-83520-00-00

1
Out of stock

15

SOCKET CORD ASSEMBLY (5G2-83520-10)

15R-83520-10-00

1
Out of stock

16

SOCKET CORD ASSEMBLY

5G2-83509-00-00

1
Out of stock

17

SCREW, WITH WASHER

90159-03044-00

1
Out of stock

18

SCREW, TAPPING

90164-04005-00

1
Out of stock

19

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

20

SCREW, TAPPING (5G2)

90164-04006-00

—
Out of stock

21

PLATE, FITTING

15R-83514-00-00

1
Out of stock

22

KNOB, TRIP METER

11H-83578-00-00

1
Out of stock

23

SCREW, PAN HEAD (11H)

90157-02031-00

—

$7.05

In stock

24

PRINT BOARD ASSEMBLY

15R-W8352-00-00

1
Out of stock

25

SCREW, TAPPING (97702-40508-00)

97701-40508-00

1
Out of stock

26

UNAVAILABLE IN PRICE BOOK

97-70230-51-00

1
Out of stock

27

SCREW, WITH WASHER

(90159-04055-00)

1
Out of stock

28

LCD UNIT HLDR SET

5G2-W8353-01-00

1
Out of stock

29

LCD UNIT SET

5G2-W8351-01-00

1
Out of stock

30

SCREW, WITH WASHER

90159-03054-00

1
Out of stock

31

SCREW, TAPPING (5G2)

90164-04006-00

—
Out of stock

32

SWITCH, METER CNTRL (5G2-8358J-20)

5G2-8358J-10-00

1
Out of stock

33

SWITCH, METER CNTRL (5G2-8358J-20)

5G2-8358J-10-00

1
Out of stock

34

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

35

DAMPER, METER BRACKET

584-83541-00-00

—
Out of stock

36

COLLAR (877)

90387-06249-00

—
Out of stock

37

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

38

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

39

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

40

SPEEDOMETER CABLE

5K5-83550-00-00

1
Out of stock

41

SCREW, HEXAGON

90153-06004-00

1
Out of stock

42

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
