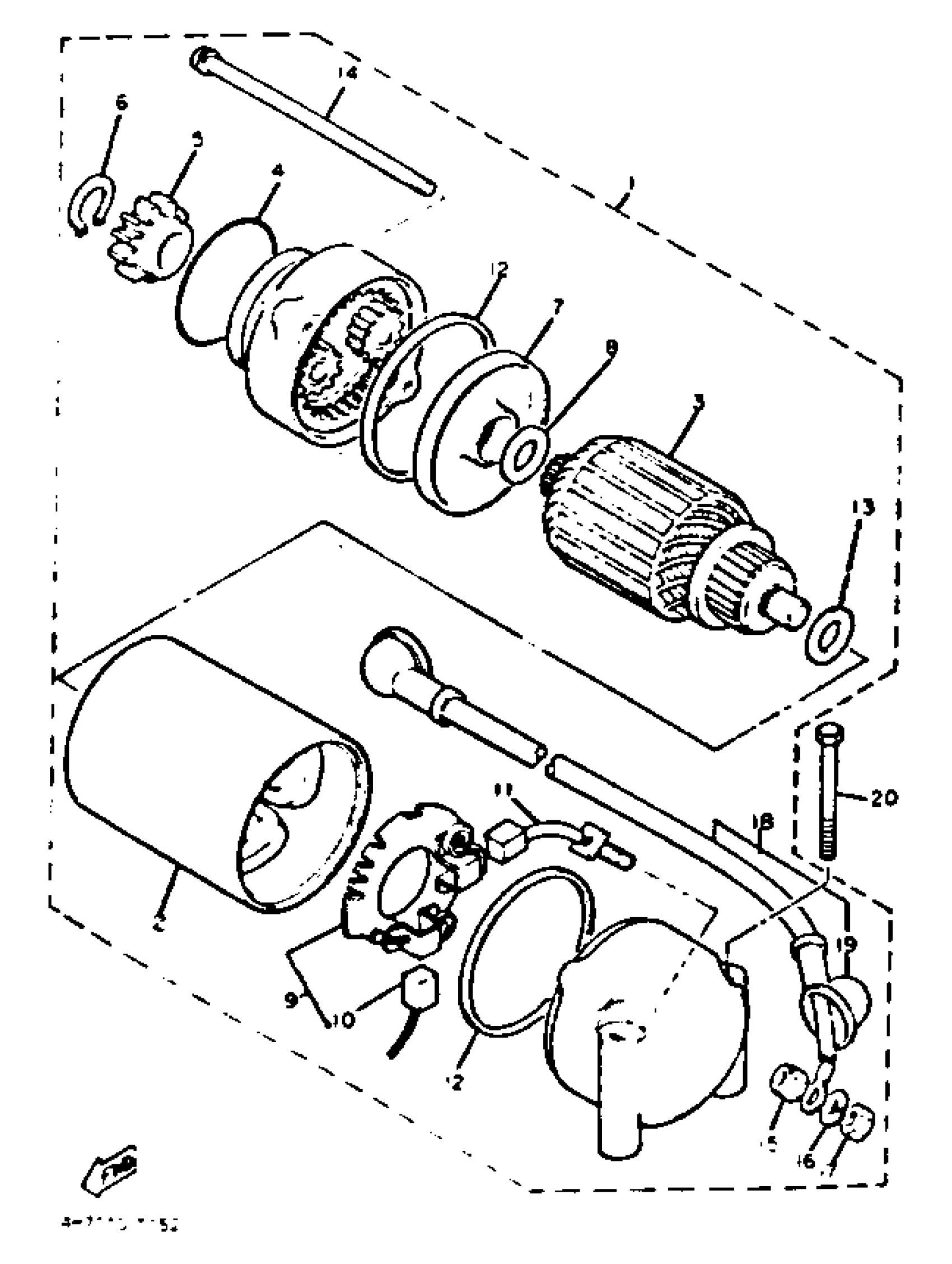

Yamaha XJ750J (XJ750) 1982 STARTING MOTOR Diagram

#

Description
Price

1

STARTING MOTOR UNIT

4BB-81890-00-00

$691.36

2

. STATOR ASSEMBLY

4H7-81810-01-00

Unavailable

3

ARMATURE ASSY

4H7-81850-00-00

$317.71

4

O-RING

4H7-81847-01-00

Unavailable

5

. GEAR, STARTING MOTOR

4H7-15511-01-00

Unavailable

6

. CIRCLIP

4H7-81819-00-00

Unavailable

7

. UNAVAILABLE IN PRICE BOOK

4H-78184-50-00

Unavailable

8

WASHER 1

4H7-81843-50-00

$3.68

9

BRUSH HOLDER ASSY

4H7-81840-01-00

$75.44

10

BRUSH, STARTER

4H7-81811-00-00

$11.05

11

BRUSH SUB-ASSY, STARTOR

2JN-81818-50-00

$23.47

12

O-RING

4H7-81844-00-00

Unavailable

13

WASHER 2

(4H7-81824-00-00)

Unavailable

14

BOLT

4H7-81826-01-00

Unavailable

15

NUT

4H7-81872-00-00

Unavailable

16

WASHER, SPRING

92995-06100-00

$2.95

17

NUT, HEXAGON

95380-06600-00

$4.11

18

. WIRE, STARTER

4H7-81815-00-00

Unavailable

19

.. UNAVAILABLE IN PRICE BOOK

4H-78187-10-00

Unavailable

20

BOLT, FLANGE

95817-06060-00

Unavailable
