1982 Yamaha XJ750 (XJ750J) Headlight Diagram

← All diagrams

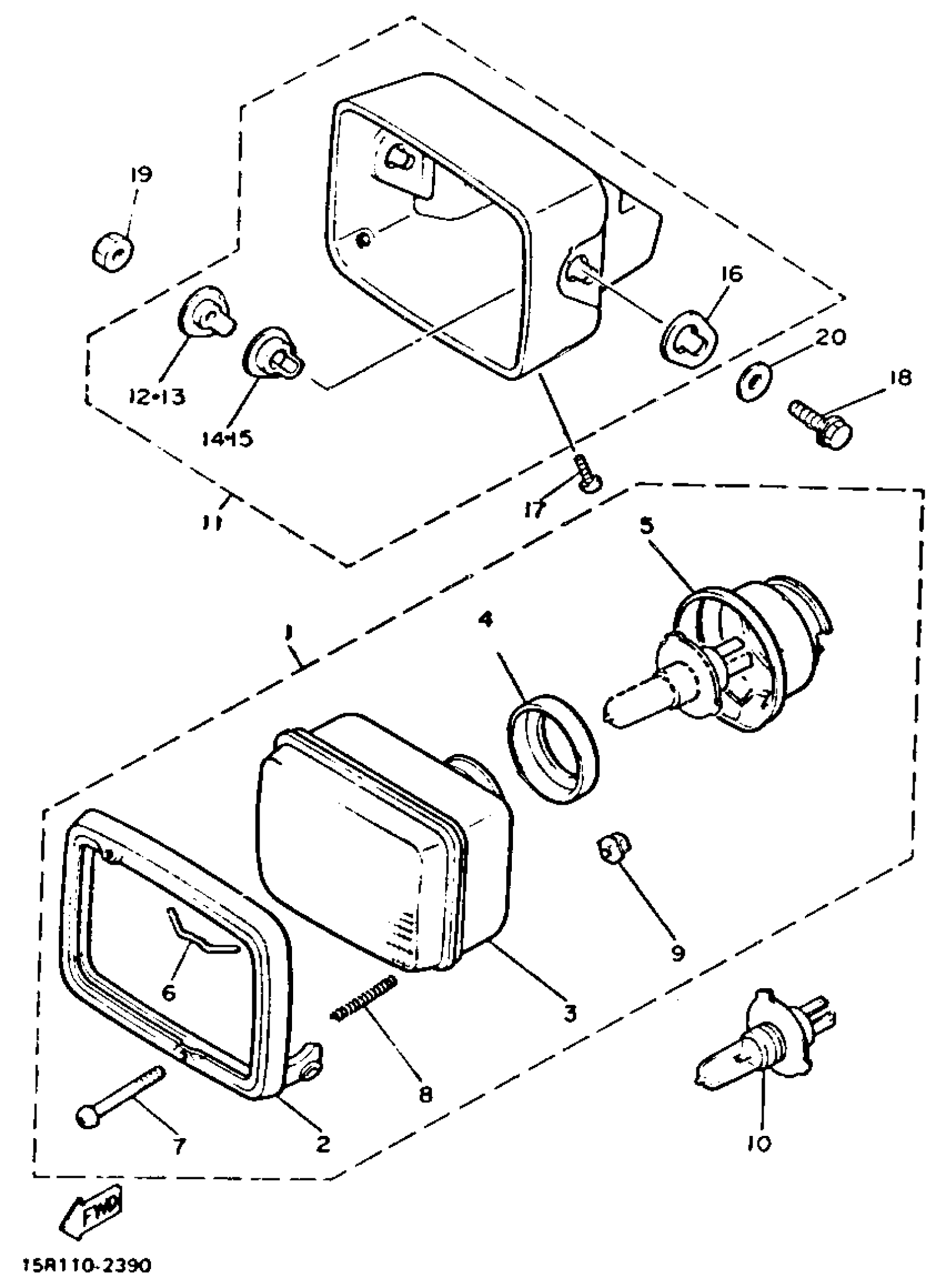

Find the part on the Headlight diagram for your 1982 Yamaha XJ750 (XJ750J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XJ750 (XJ750J) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSEMBLY

15R-84303-A0-00

1
Out of stock

2

. RIM, HEADLIGHT

15R-84315-00-00

1
Out of stock

3

. LENS, HEADLIGHT

11H-84321-60-00

1
Out of stock

4

SETTING PLATE, BULB

2F9-84375-00-00

—

$12.66

In stock

5

COVER, SOCKET

2F9-84397-01-00

1

$27.82

In stock

6

SET SPRING

55X-84124-00-00

1

$10.82

In stock

7

SCREW, PANHEAD (4G7)

98580-04055-00

—

$7.02

In stock

8

SPRING, ADJUST

341-84332-60-00

1

$8.54

In stock

9

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

10

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

11

BODY ASSEMBLY

15R-84330-00-00

1
Out of stock

12

COLLAR 1

5G2-84388-00-00

—

$13.17

In stock

13

. SCREW, MNTNG RING

5G2-84398-00-00

1
Out of stock

14

BUSHING 1

5G2-84366-00-00

—

$12.92

In stock

15

. DAMPER, HEADLIGHT 2

5G2-84367-00-00

1
Out of stock

16

BUSHING

5G2-84368-00-00

—

$7.77

In stock

17

SCREW, PAN

98517-05012-00

—

$3.91

In stock

18

BOLT, SMALL FLANGE

95027-08030-00

—
Out of stock

19

NUT(6L2)

95333-08600-00

—

$3.20

In stock

20

WASHER, PLATE (5J0)

90201-085E6-00

—
Out of stock
