1982 Yamaha XJ750 (XJ750J) Front Fork Diagram

← All diagrams

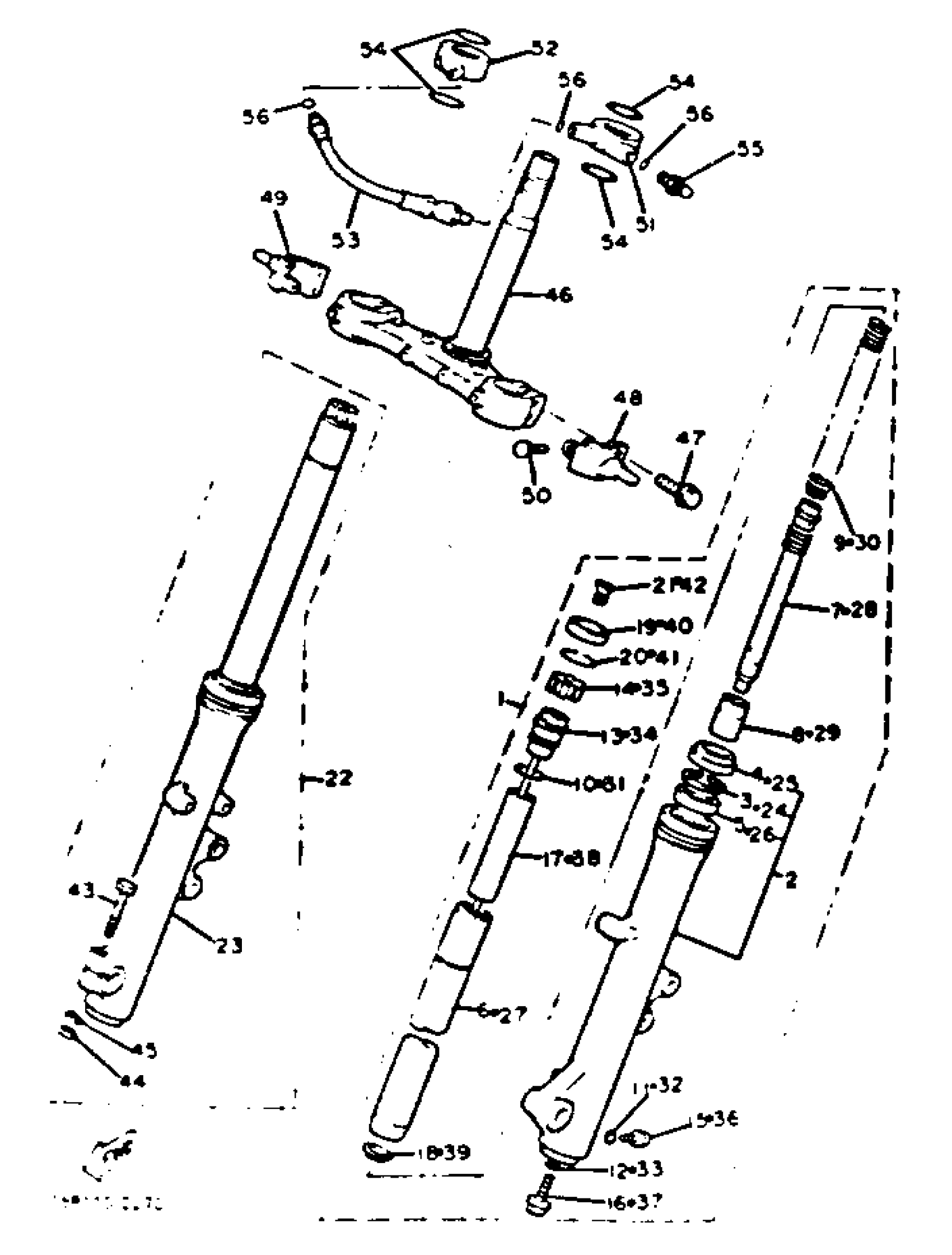

Find the part on the Front Fork diagram for your 1982 Yamaha XJ750 (XJ750J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XJ750 (XJ750J) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L (L.H)

15R-23102-00-00

1
Out of stock

2

. TUBE, OUTER 1

15R-23126-00-00

1
Out of stock

3

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

4

SEAL, DUST

33M-23144-00-00

1

$24.09

In stock

5

OIL SEAL

4ES-23145-00-00

1

$18.57

In stock

6

. INNER TUBE 1

15R-23110-00-00

1
Out of stock

7

. CYLINDER, FRTFRK

15R-23170-00-00

1
Out of stock

8

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

9

. UNAVAILABLE IN PRICE BOOK

15-R2314-10-00

1
Out of stock

10

GASKET

240-23114-00-00

1

$12.27

In stock

11

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

12

GASKET

509-23158-L0-00

1

$14.34

In stock

13

BOLT, CAP

(15R-23111-00-00)

1
Out of stock

14

. CAP, FRONT FORK

15R-23168-00-00

1
Out of stock

15

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

16

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

17

. SPACER

58T-23118-L0-00

1
Out of stock

18

. SEAT, SPRING UPPER

583-23142-00-00

1
Out of stock

19

WASHER

2H7-23163-00-00

—

$4.35

In stock

20

. RING, SNAP

15R-23153-00-00

1
Out of stock

21

SCREW, FLAT

98707-05010-00

—
Out of stock

22

FRONT FORK ASSEMBLY R

(15R-23103-00-00)

1
Out of stock

23

. TUBE, OUTER 2

15R-23136-00-00

1
Out of stock

24

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

25

SEAL, DUST

33M-23144-00-00

1

$24.09

In stock

26

OIL SEAL

4ES-23145-00-00

1

$18.57

In stock

27

. INNER TUBE 1

15R-23110-00-00

1
Out of stock

28

. CYLINDER, FRTFRK

15R-23170-00-00

1
Out of stock

29

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

30

. UNAVAILABLE IN PRICE BOOK

15-R2314-10-00

1
Out of stock

31

GASKET

240-23114-00-00

1

$12.27

In stock

32

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

33

GASKET

509-23158-L0-00

1

$14.34

In stock

34

BOLT, CAP

(15R-23111-00-00)

1
Out of stock

35

. CAP, FRONT FORK

15R-23168-00-00

1
Out of stock

36

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

37

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

38

. SPACER

58T-23118-L0-00

1
Out of stock

39

. SEAT, SPRING UPPER

583-23142-00-00

1
Out of stock

40

WASHER

2H7-23163-00-00

—

$4.35

In stock

41

. RING, SNAP

15R-23153-00-00

1
Out of stock

42

SCREW, FLAT

98707-05010-00

—
Out of stock

43

BOLT (1E6)

90101-08340-00

—

$2.72

In stock

44

NUT(6L2)

95333-08600-00

—

$3.20

In stock

45

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

46

UNDER BRACKET

15R-23340-00-33

1
Out of stock

47

BOLT, AXLE HOLDER

18G-23128-00-00

—

$7.77

In stock

48

COVER, OUTER 1

15R-23122-00-00

1
Out of stock

49

COVER, OUTER 2

15R-23132-00-00

1
Out of stock

50

. BOLT, HEX SCKT HEAD

4H7-23181-00-00

1
Out of stock

51

UNAVAILABLE IN PRICE BOOK

15-R2318-A0-00

1
Out of stock

52

JOINT, AIR

15R-2319A-00-00

1
Out of stock

53

UNAVAILABLE IN PRICE BOOK

15-R2318-F0-00

1
Out of stock

54

O-RING

15R-23188-00-00

1
Out of stock

55

AIR VALVE COMP.

4V4-23190-L0-00

—

$52.77

In stock

56

O-RING

3J2-23147-00-00

—
Out of stock
