1986 Yamaha Maxim CA (XJ700SC) Taillight Diagram

← All diagrams

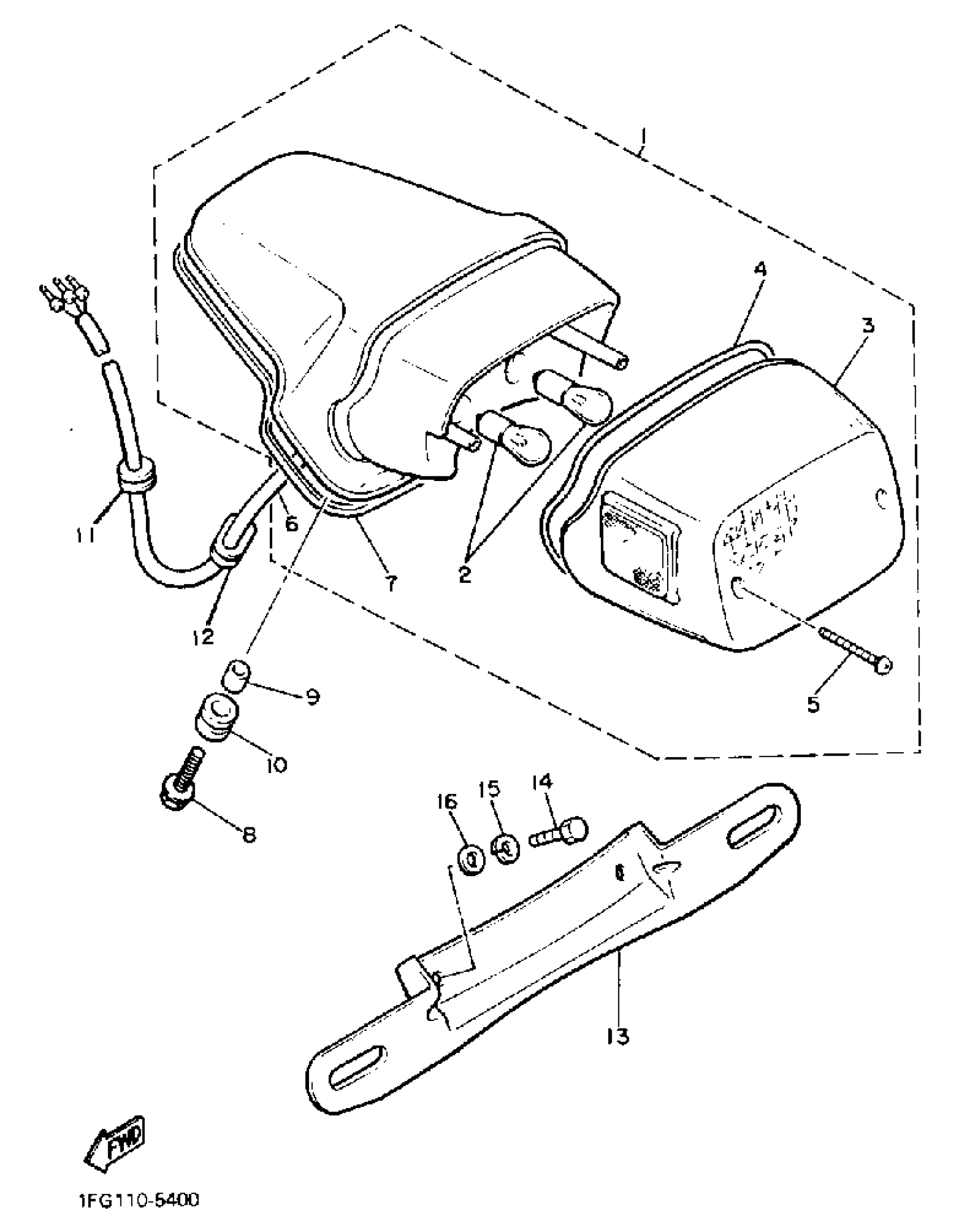

Find the part on the Taillight diagram for your 1986 Yamaha Maxim CA (XJ700SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Maxim CA (XJ700SC) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT ASSEMBLY

42X-84700-60-00

1
Out of stock

2

1

$10.02

In stock

3

LENS, TAILLIGHT

42X-84721-61-00

1
Out of stock

4

SEAL

1VJ-14462-00-00

1

$16.08

In stock

5

SCREW, TAPPING(7G6)

97780-40525-00

1

$5.84

In stock

6

CORD,TAILLIGHT

461-84517-00-00

1
Out of stock

7

. GASKET, TAILLIGHT

42X-84704-00-00

1
Out of stock

8

BOLT, WITH WASHER(2WG)

90119-06172-00

1

$5.83

In stock

9

COLLAR

90387-06144-00

1

$5.28

In stock

10

GROMET (3X3)

90480-14229-00

1

$6.17

In stock

11

GROMMET(2UJ)

90480-16501-00

1

$5.37

In stock

12

GROMMET (438)

90480-15061-00

1

$6.68

In stock

13

BRACKET, LICENSE

42X-84751-00-00

1
Out of stock

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock
