1986 Yamaha Maxim CA (XJ700SC) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1986 Yamaha Maxim CA (XJ700SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

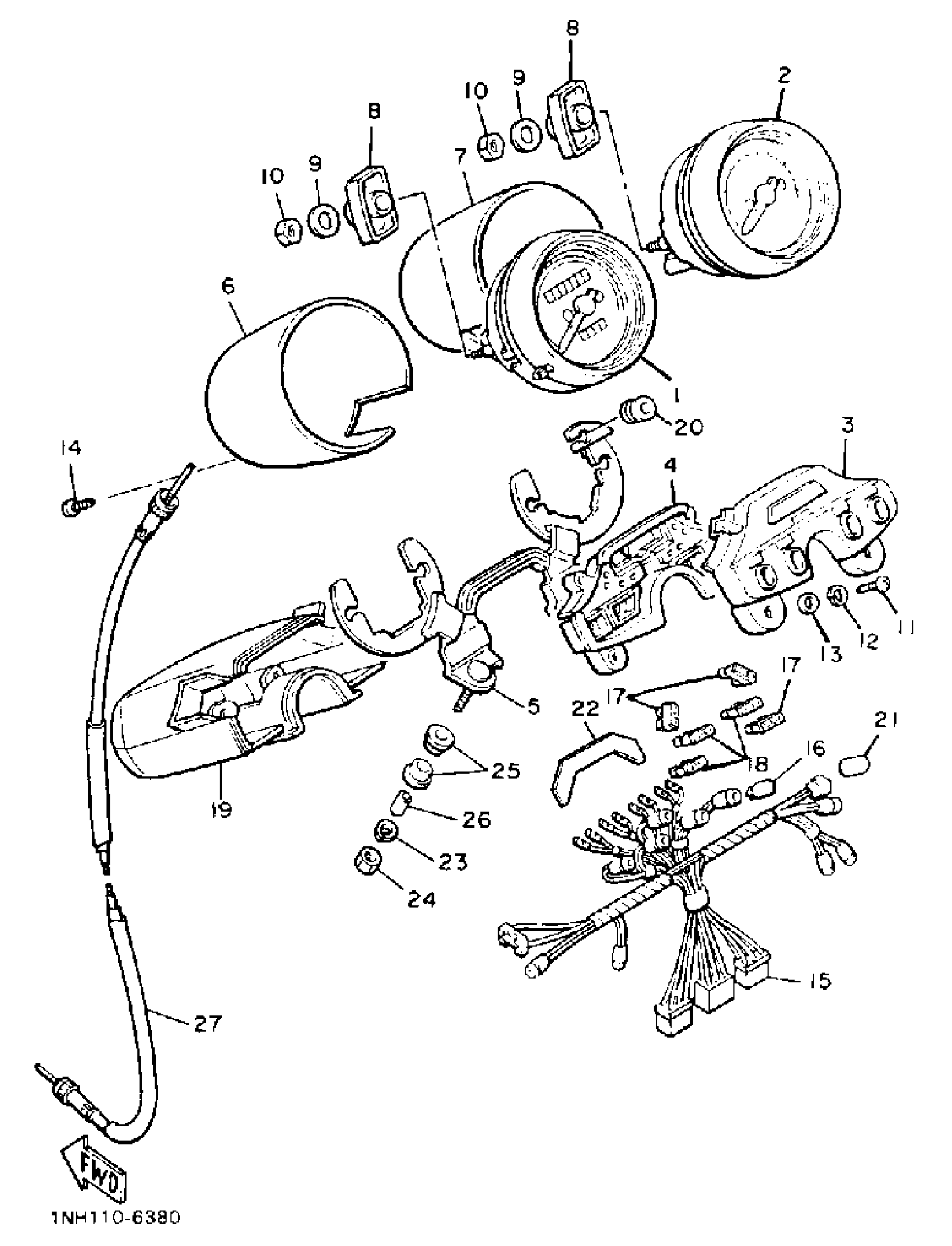

1986 Yamaha Maxim CA (XJ700SC) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

1AA-83570-A0-00

1
Out of stock

2

TACHOMETER ASSEMBLY

1FG-83540-00-00

1
Out of stock

3

CASE,UPPER

2AE-8353G-40-00

1
Out of stock

4

CASE, INNER

1AA-8353H-00-00

1
Out of stock

5

BRACKET, METER

1FG-83519-00-00

1
Out of stock

6

COVER, SPEEDOMETER

42X-83507-00-00

—
Out of stock

7

UNAVAILABLE IN PRICE BOOK

42X-38508-00-00

1
Out of stock

8

DAMPER

1FG-83523-00-00

—

$8.82

In stock

9

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

10

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

11

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

12

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

13

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

14

SCREW, TAPPING (10M)

90164-04009-00

1
Out of stock

15

SOCKET CORD ASSEMBLY

1FG-83509-00-00

1
Out of stock

16

BULB (T6.5 12V-3W)

42X-83517-00-00

—

$6.48

In stock

17

FUSE (12V 15A)

36Y-82151-00-00

—

$4.08

In stock

18

FUSE (10A)

42X-82151-00-00

—

$2.16

In stock

19

COVER, METER

42X-83559-00-00

1
Out of stock

20

DAMPER

1FK-83523-00-00

1
Out of stock

21

TUBE

1FK-83535-00-00

—
Out of stock

22

COVER, METER 2

55R-83579-00-00

1
Out of stock

23

WASHER, SPRING

92907-06100-00

—
Out of stock

24

NUT(6TA)

95317-06600-00

—

$2.69

In stock

25

DAMPER, METER BRACKET

584-83541-00-00

—
Out of stock

26

COLLAR (877)

90387-06249-00

—
Out of stock

27

SPEEDOMETER CABLE ASSY

3LP-83550-00-00

—
Out of stock
