1986 Yamaha Maxim CA (XJ700SC) Handlebar Cable Diagram

← All diagrams

Find the part on the Handlebar Cable diagram for your 1986 Yamaha Maxim CA (XJ700SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

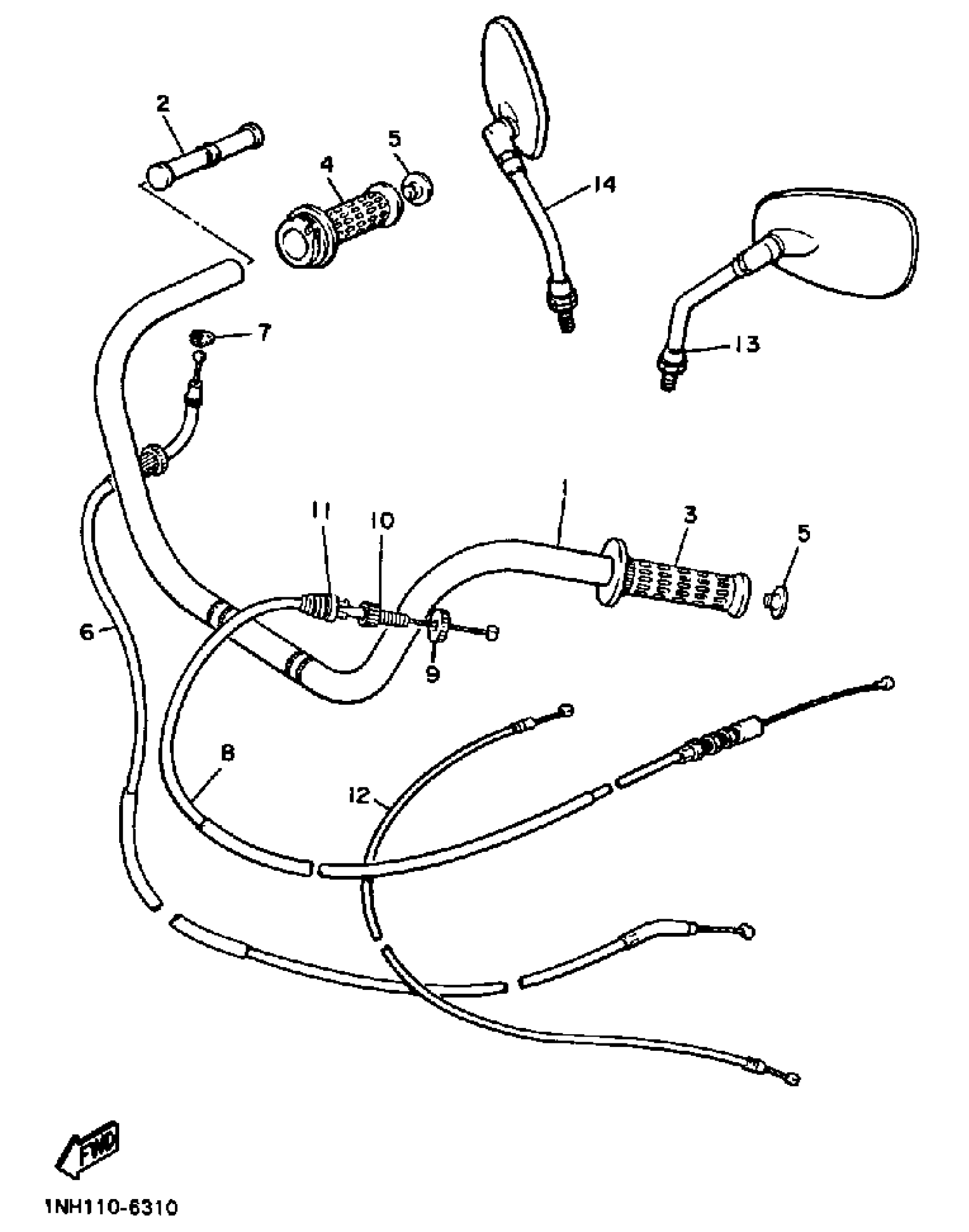

1986 Yamaha Maxim CA (XJ700SC) Handlebar Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

1AA-26111-00-00

1
Out of stock

2

WEIGHT

3F9-W2612-00-00

1
Out of stock

3

GRIP (L.H)

42X-26241-00-00

—

$32.57

In stock

4

GRIP ASSEMBLY

42X-26240-00-00

1
Out of stock

5

CAP, GRIP

26H-2628J-00-00

1

$7.51

In stock

6

CABLE, THROTTLE 1

1FG-26311-00-00

1
Out of stock

7

HOLDER

5H0-26393-00-00

1

$6.72

In stock

8

CABLE, CLUTCH

1AA-26335-00-00

—

$47.43

In stock

9

NUT

90179-08030-00

1

$3.78

In stock

10

BOLT

90123-08002-00

1

$8.93

In stock

11

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

12

CABLE, STARTER 1

1FG-26331-00-00

1
Out of stock

13

REAR VIEW MIRROR ASSY (LEFT)

1AA-26280-10-00

1
Out of stock

14

REAR VIEW MIRROR ASSY (RIGHT)

1AA-26290-10-00

1
Out of stock
