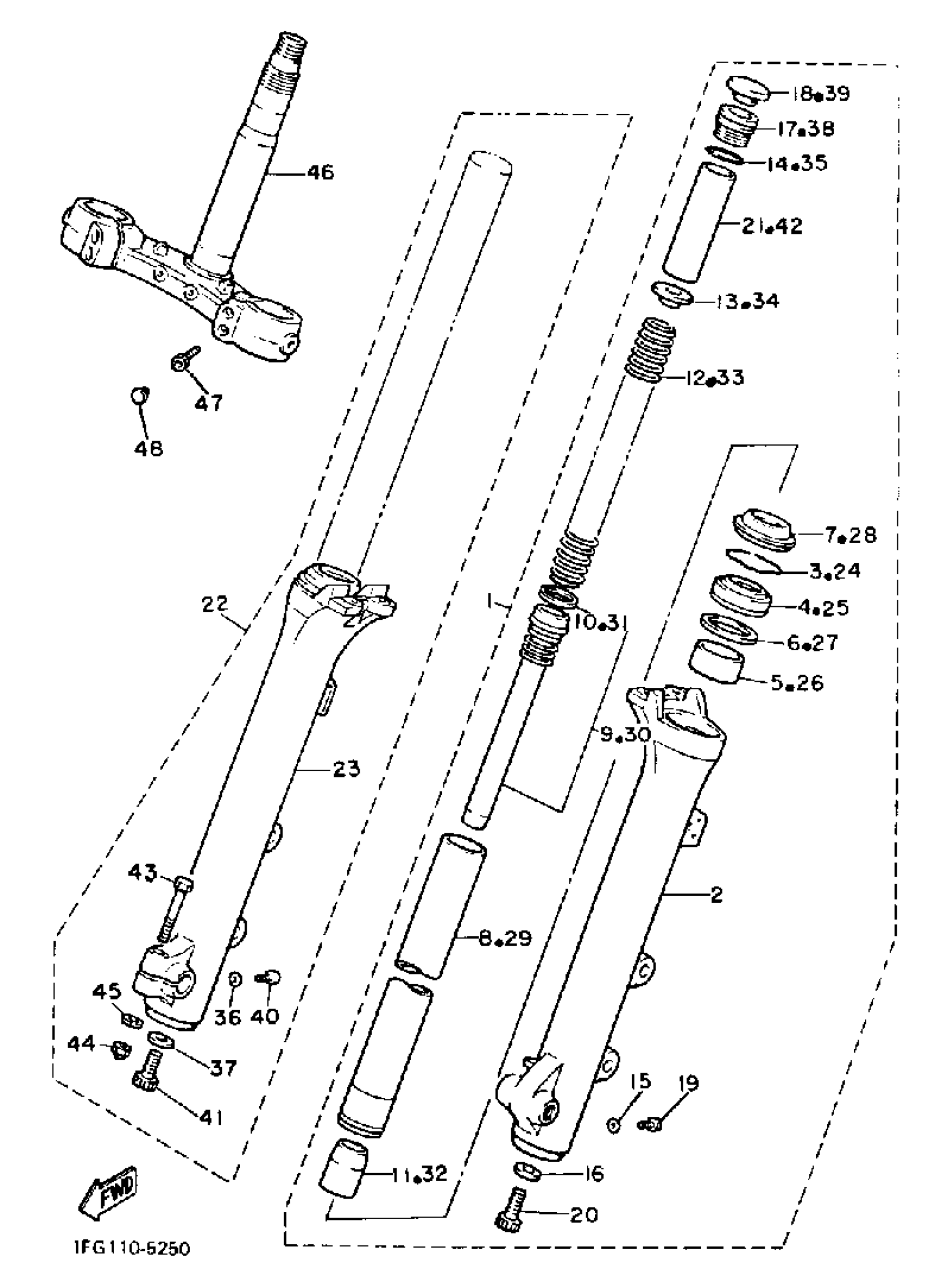

Yamaha XJ700SC (MAXIM CA) 1986 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L (L.H.)

1FG-23102-00-00

Unavailable

2

TUBE,OUTER(LEFT)

3JK-23126-10-00

Unavailable

3

RING, SNAP

3R4-23153-00-00

$7.03

4

OIL SEAL

3EN-23145-00-00

$21.48

5

METAL, SLIDE 1

2YK-23125-00-00

$36.70

6

WASHER

4V2-23146-L0-00

$23.48

7

SEAL, DUST

42X-23144-01-00

Unavailable

8

INNER TUBE 1

99999-02981-00

Unavailable

9

CYLINDER, FRTFRK

(1AA-23170-00-00)

Unavailable

10

.. RING, PISTON FRTFRK

31A-23157-00-00

Unavailable

11

TAPER SPINDLE

1W1-23173-L0-00

$15.74

12

SPRING, FRONT FORK

(1FG-23141-00-00)

Unavailable

13

. SEAT, SPRING UPPER

1W1-23142-L0-00

Unavailable

14

O-RING

1W1-23114-L0-00

$8.14

15

GASKET, DRAIN PLUG

122-23129-00-00

$5.20

16

GASKET

509-23158-L0-00

Unavailable

17

. BOLT, CAP

31A-23111-31-00

Unavailable

18

CAP, FRONT FORK

42H-23168-00-00

Unavailable

19

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.86

20

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

21

. SPACER

42H-23118-00-00

Unavailable

22

FRONT FORK ASSEMBLY R (R.H.)

1FG-23103-00-00

Unavailable

23

TUBE,OUTER(RIGHT)

3JK-23136-10-00

Unavailable

24

RING, SNAP

3R4-23153-00-00

$7.03

25

OIL SEAL

3EN-23145-00-00

$21.48

26

METAL, SLIDE 1

2YK-23125-00-00

$36.70

27

WASHER

4V2-23146-L0-00

$23.48

28

SEAL, DUST

42X-23144-01-00

Unavailable

29

INNER TUBE 1

99999-02981-00

Unavailable

30

CYLINDER, FRTFRK

(1AA-23170-00-00)

Unavailable

31

.. RING, PISTON FRTFRK

31A-23157-00-00

Unavailable

32

TAPER SPINDLE

1W1-23173-L0-00

$15.74

33

SPRING, FRONT FORK

(1FG-23141-00-00)

Unavailable

34

. SEAT, SPRING UPPER

1W1-23142-L0-00

Unavailable

35

O-RING

1W1-23114-L0-00

$8.14

36

GASKET, DRAIN PLUG

122-23129-00-00

$5.20

37

GASKET

509-23158-L0-00

Unavailable

38

. BOLT, CAP

31A-23111-31-00

Unavailable

39

CAP, FRONT FORK

42H-23168-00-00

Unavailable

40

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.86

41

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

42

. SPACER

42H-23118-00-00

Unavailable

43

BOLT (1E6)

90101-08340-00

Unavailable

44

NUT(6L2)

95333-08600-00

Unavailable

45

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

46

UNDER BRACKET

1AA-23340-00-00

Unavailable

47

BOLT,SOCKET

91314-08030-00

Unavailable

48

PLUG(42X)

90338-08163-00

Unavailable
