1985 Yamaha Maxim CA (XJ700NC) Electrical 1 Diagram

← All diagrams

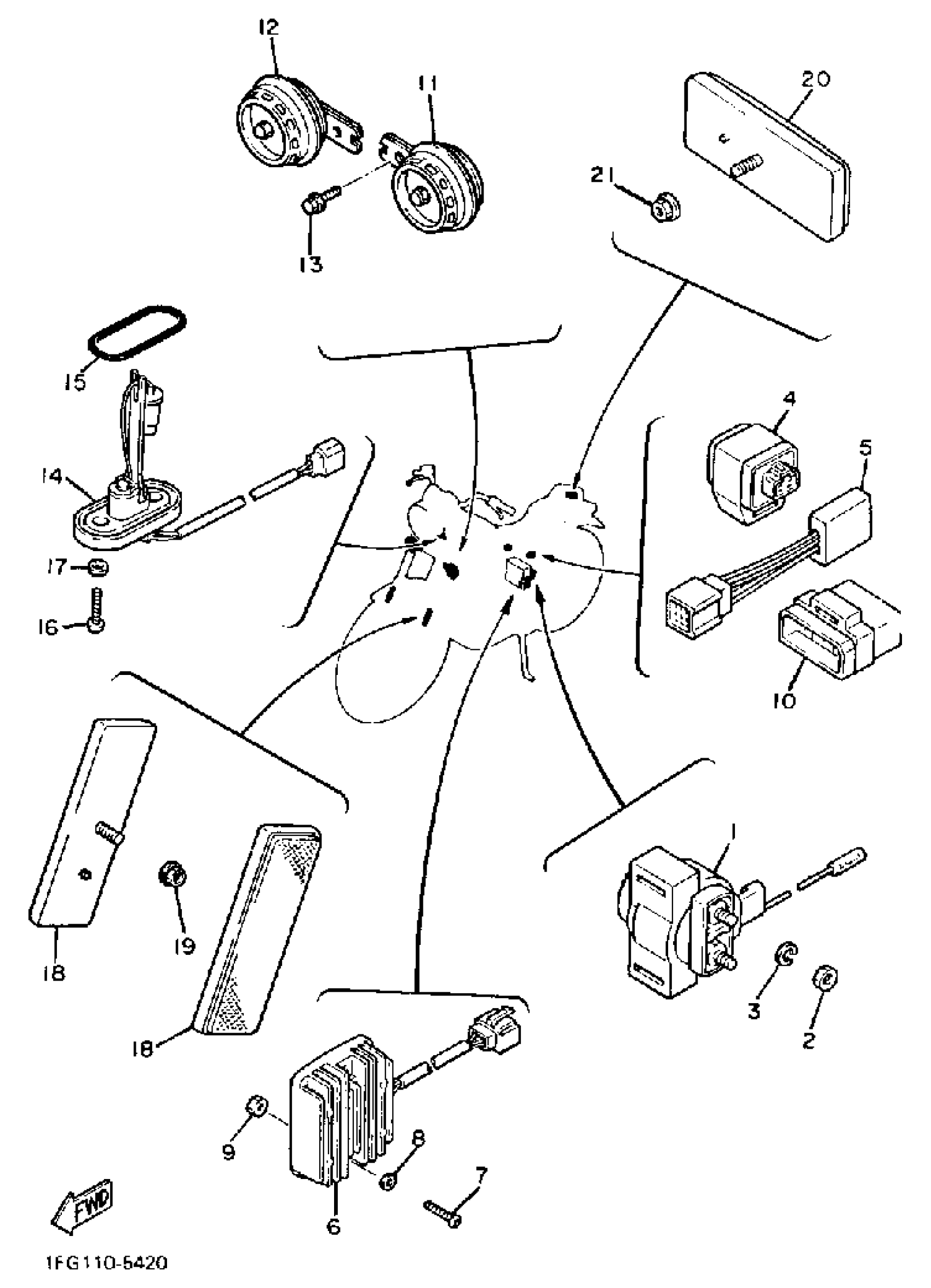

Find the part on the Electrical 1 diagram for your 1985 Yamaha Maxim CA (XJ700NC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha Maxim CA (XJ700NC) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER RELAY ASSY

36Y-81940-00-00

—
Out of stock

2

NUT(650)

95380-06700-00

1

$6.17

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

RELAY ASSY

4U8-81950-03-00

—
Out of stock

5

RECTIFIER 2

4U8-81980-M0-00

—
Out of stock

6

RECTIFIER & REGULATOR ASSY

3G1-81960-A1-00

1
Out of stock

7

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

8

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

9

NUT(650)

95380-06700-00

1

$6.17

In stock

10

FLASHER RELAY ASSY

41R-83350-72-00

—
Out of stock

11

HORN

2AE-83371-01-00

1
Out of stock

12

HORN

2AE-83371-11-00

1
Out of stock

13

BOLT, FLANGE(2UJ)

95024-08012-00

1

$6.17

In stock

14

SENDER UNIT ASSY, FUEL METER

1FK-85752-02-00

—
Out of stock

15

GASKET, SENDER UNIT

42X-85753-00-00

1

$6.72

In stock

16

SCREW 256241430000

90149-06011-00

—

$1.58

In stock

17

WASHER, PLATE(3MB)

90202-05187-00

—

$1.32

In stock

18

REFLECTOR ASSEMBLY

42X-85110-00-00

1
Out of stock

19

NUT, FLANGE(3GM)

95707-05500-00

—

$6.18

In stock

20

. REAR REFLECTOR ASSEMBLY

55R-85130-00-00

1
Out of stock

21

NUT, FLANGE(3GM)

95707-05500-00

—

$6.18

In stock
