1981 Yamaha XJ650 (XJ650H) OIL Pump Diagram

← All diagrams

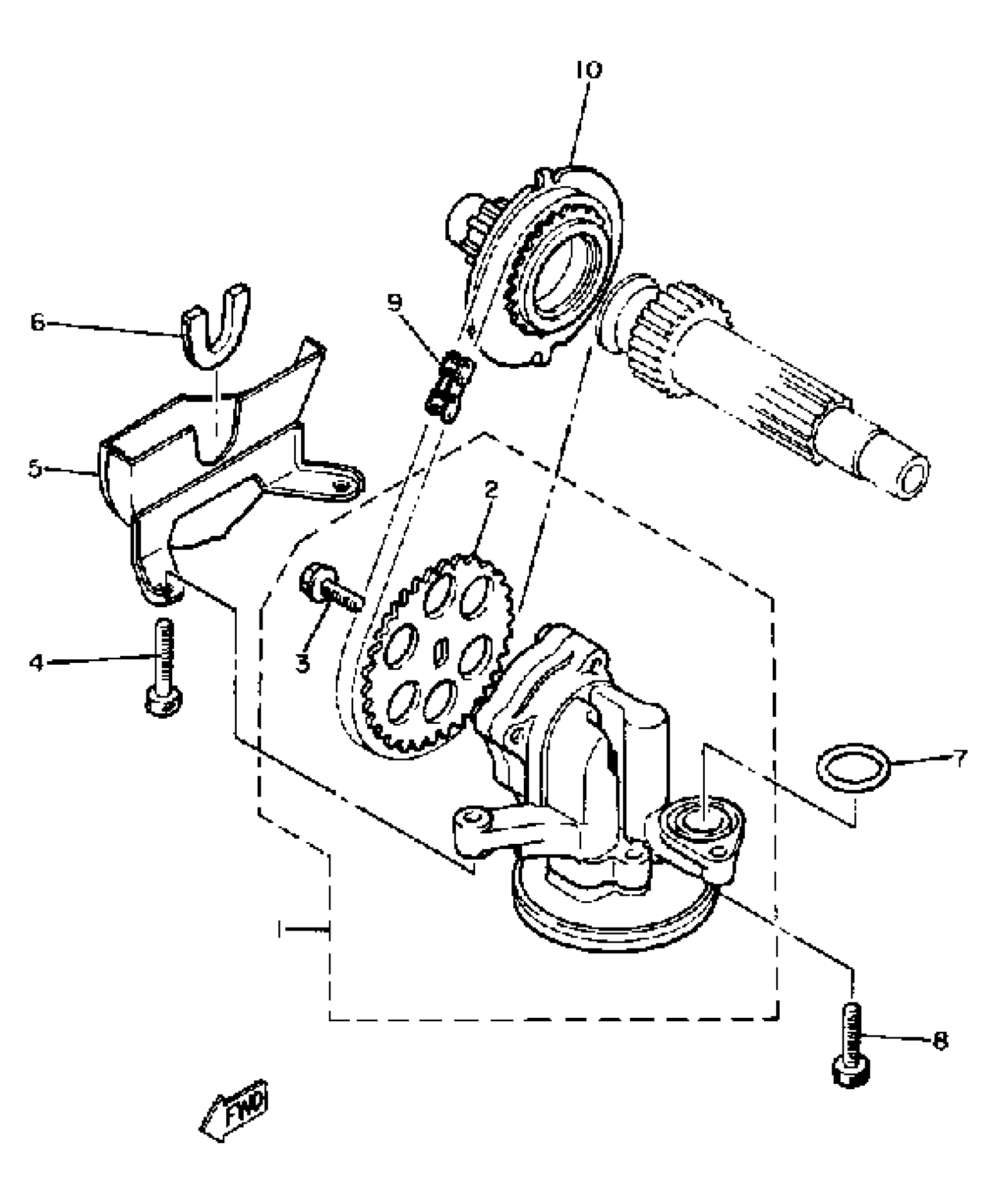

Find the part on the OIL Pump diagram for your 1981 Yamaha XJ650 (XJ650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XJ650 (XJ650H) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY

5G2-13300-00-00

1
Out of stock

2

. SPROCKET, DRIVEN

4H7-13355-00-00

1
Out of stock

3

BOLT, WASHER BASED (4H7)

90105-06154-00

1

$3.91

In stock

4

BOLT, HEXAGON SOCKET HEAD (4H7

90110-06035-00

1
Out of stock

5

COVER, PUMP GEAR

4H7-13327-00-00

1
Out of stock

6

GROMMET, GEAR COVER

4H7-13328-00-00

—

$7.91

In stock

7

O-RING (1J7)

93210-18319-00

1

$6.85

In stock

8

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

9

CHAIN, OIL PUMP (4H7)

94580-25066-00

1

$11.34

In stock

10

SPROCKET, DRIVE

4H7-13354-00-00

—

$43.95

In stock
