1981 Yamaha XJ650 (XJ650H) Exhaust Diagram

← All diagrams

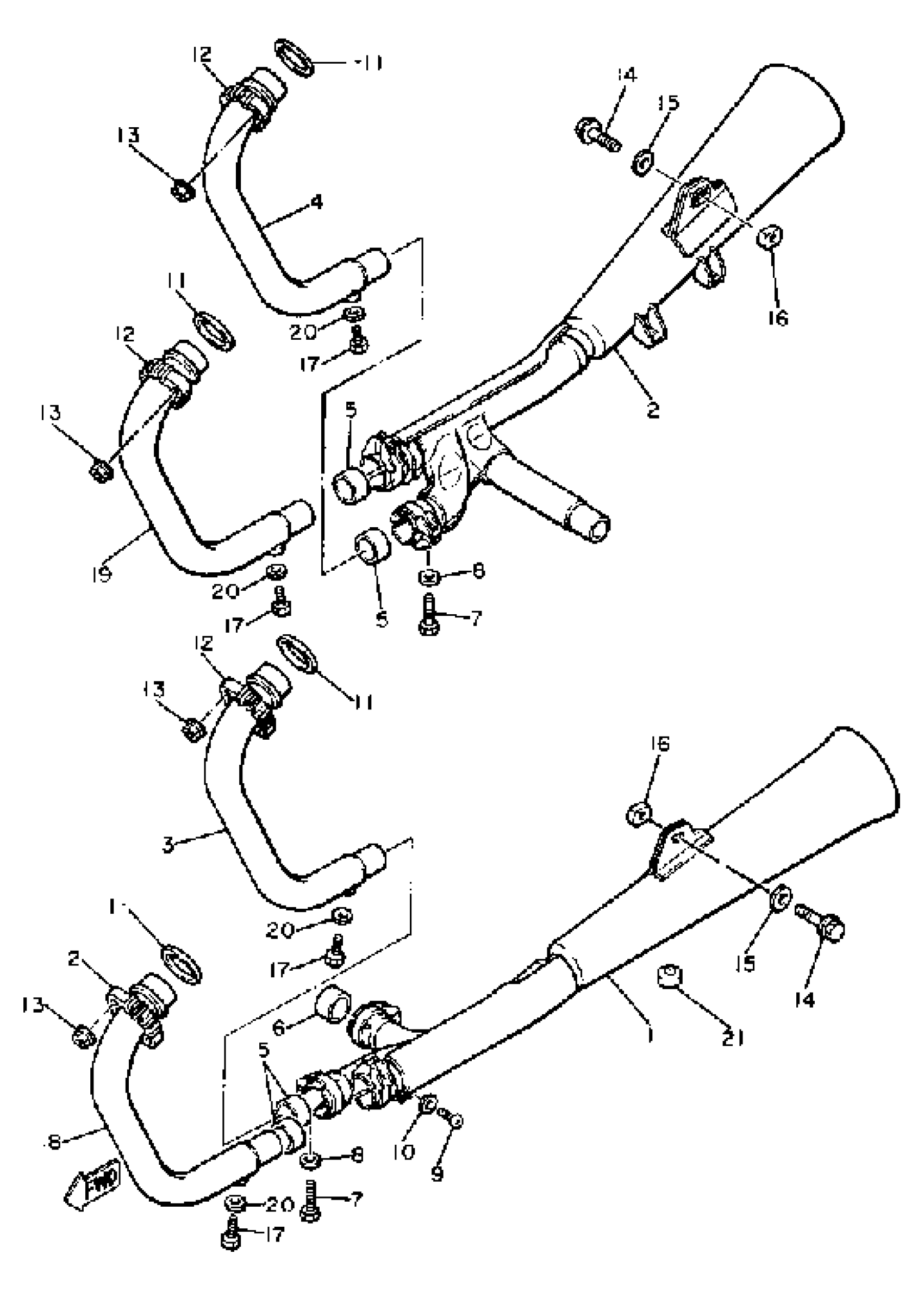

Find the part on the Exhaust diagram for your 1981 Yamaha XJ650 (XJ650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XJ650 (XJ650H) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MUFFLER ASSEMBLY L

4H7-14710-01-00

1
Out of stock

2

MUFFLER ASSEMBLY R

4H7-14720-01-00

1
Out of stock

3

PIPE, EXHAUST R

4H7-14621-02-00

1
Out of stock

4

PIPE, EXHAUST 3

4H7-14631-02-00

1
Out of stock

5

GASKET, MUFFLER

3YF-14714-00-00

1

$28.95

In stock

6

GASKET, MUFFLER

4DN-14714-01-00

1

$60.45

In stock

7

BOLT (682)

97013-08025-00

1

$6.80

In stock

8

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

9

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

10

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

11

GASKET, EXHAUST PIPE

4BR-14613-00-00

1

$5.62

In stock

12

NUT, RING

4H7-14612-00-00

1
Out of stock

13

NUT (1AE)

90179-06500-00

1
Out of stock

14

BOLT, FLANGE

95814-10040-00

1

$3.69

In stock

15

WASHER, PLATE (2H7)

90201-10669-00

1

$6.26

In stock

16

NUT, SPEC''L SHAPE

90179-10276-00

1
Out of stock

17

BOLT (661)

97013-06012-00

—

$4.71

In stock

18

PIPE, EXHAUST L

4H7-14611-02-00

1
Out of stock

19

PIPE, EXHAUST 4

4H7-14641-02-00

1
Out of stock

20

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

21

STOPPER, MAIN STAND

1A0-27114-00-00

—
Out of stock
