1992 Yamaha Seca Ii CA (XJ600SDC) Crankcase Diagram

← All diagrams

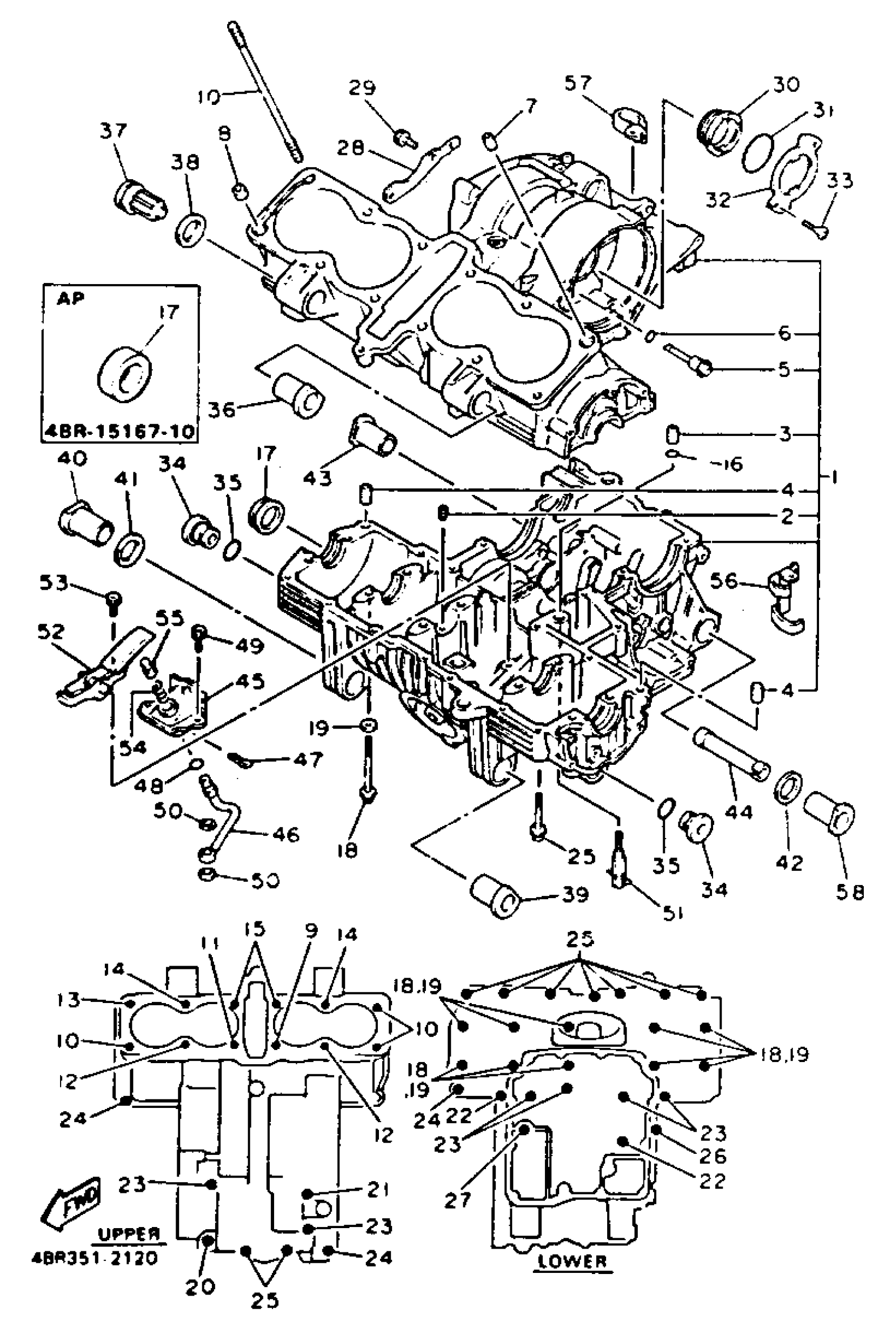

Find the part on the Crankcase diagram for your 1992 Yamaha Seca Ii CA (XJ600SDC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha Seca Ii CA (XJ600SDC) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

4BR-15100-00-00

—
Out of stock

2

NOZZLE

4KM-13572-01-00

1
Out of stock

3

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

4

PIN, DOWEL

99530-12016-00

1
Out of stock

5

NOZZLE 2

4BR-15148-00-00

1
Out of stock

6

O-RING (4G0)

93210-11453-00

1
Out of stock

7

PIN, DOWEL

99530-14016-00

1
Out of stock

8

COLLAR (1L9)

90387-16547-00

1
Out of stock

9

BOLT, STUD

90116-08338-00

1
Out of stock

10

BOLT, STUD(4BP)

90116-08566-00

1
Out of stock

11

BOLT, STUD

90116-08339-00

1
Out of stock

12

BOLT, STUD

90116-08340-00

1
Out of stock

13

BOLT, CYLINDER HOLDING 3

4BR-11363-00-00

1
Out of stock

14

BOLT, CYLINDER HOLDING 4

4G0-11364-00-00

1
Out of stock

15

BOLT, CYLINDER HOLDING 3

4G0-11363-00-00

1
Out of stock

16

O-RING (1J7)

93210-09350-00

—
Out of stock

17

PLUG, BLIND 1

4BR-15167-10-00

1
Out of stock

17

PLUG

90338-48229-00

1
Out of stock

18

BOLT, FLANGE

95817-08100-00

—
Out of stock

19

WASHER, PLATE (33N)

90201-094G1-00

—
Out of stock

20

BOLT, FLANGE(JF2)

95817-08080-00

—
Out of stock

21

BOLT, FLANGE

95817-06135-00

1
Out of stock

22

BOLT, FLANGE

95817-06095-00

—
Out of stock

23

BOLT, FLANGE

95817-06065-00

—
Out of stock

24

BOLT, FLANGE

95817-06055-00

—
Out of stock

25

BOLT, FLANGE

95817-06045-00

—
Out of stock

26

BOLT, FLANGE

95817-06040-00

—
Out of stock

27

BOLT, FLANGE

95817-06035-00

—
Out of stock

28

PLATE, BEARING COVER

4BR-15381-00-00

—
Out of stock

29

BOLT,SOCKET

91317-06016-00

—
Out of stock

30

HOUSING, BEARING 1

4G0-15163-01-00

—
Out of stock

31

O-RING (26H)

93210-45578-00

—
Out of stock

32

PLATE, BEARING COVER

4G0-15383-00-00

1
Out of stock

33

SCREW, COUNTERSUNK (4H7)

90151-06014-00

—
Out of stock

34

PLUG

3KM-15189-00-00

—
Out of stock

35

O-RING (25G)

93210-20573-00

—
Out of stock

36

DAMPER, ENGINE MOUNT 3

4G0-15336-00-00

1
Out of stock

37

DAMPER, ENGINE MOUNT 3

33M-15336-00-00

1
Out of stock

38

WASHER, PLATE

90202-15153-00

—
Out of stock

39

DAMPER, ENGINE MOUNT 1

4G0-15316-00-00

1
Out of stock

40

DAMPER 4

33M-15337-00-00

1
Out of stock

41

WASHER, PLATE

90202-15153-00

—
Out of stock

42

WASHER, PLATE(4BP)

90202-17211-00

—
Out of stock

43

DAMPER, ENGINE MOUNT 2

46X-15326-00-00

1
Out of stock

44

SPACER, ENGINE MOUNT

4BR-15327-00-00

1
Out of stock

45

TENSIONER, CHAIN

4G0-11592-00-00

1
Out of stock

46

PIPE, DELIVERY 2

4G0-13171-00-00

—
Out of stock

47

PIN, COTTER

91490-25020-00

—
Out of stock

48

O-RING (11M)

93210-07540-00

—
Out of stock

49

BOLT, HEXAGON SOCKET HEAD

90110-06158-00

1
Out of stock

50

GASKET (5R6)

90430-10171-00

—
Out of stock

51

RELIEF VALVE ASS'Y

4G0-11575-00-00

—
Out of stock

52

TENSIONER ARM COMP.

4BR-11492-00-00

1
Out of stock

53

BOLT, HEXAGON SOCKET HEAD

90110-06158-00

1
Out of stock

54

. SPRING, COMPRESSION

90501-143A8-00

1
Out of stock

55

. PLUNGER, TENSIONER

46X-11597-00-00

1
Out of stock

56

CLAMP

90462-08087-00

1
Out of stock

57

CLAMP

90465-10290-00

1
Out of stock

58

COLLAR

90387-125Y2-00

1
Out of stock
