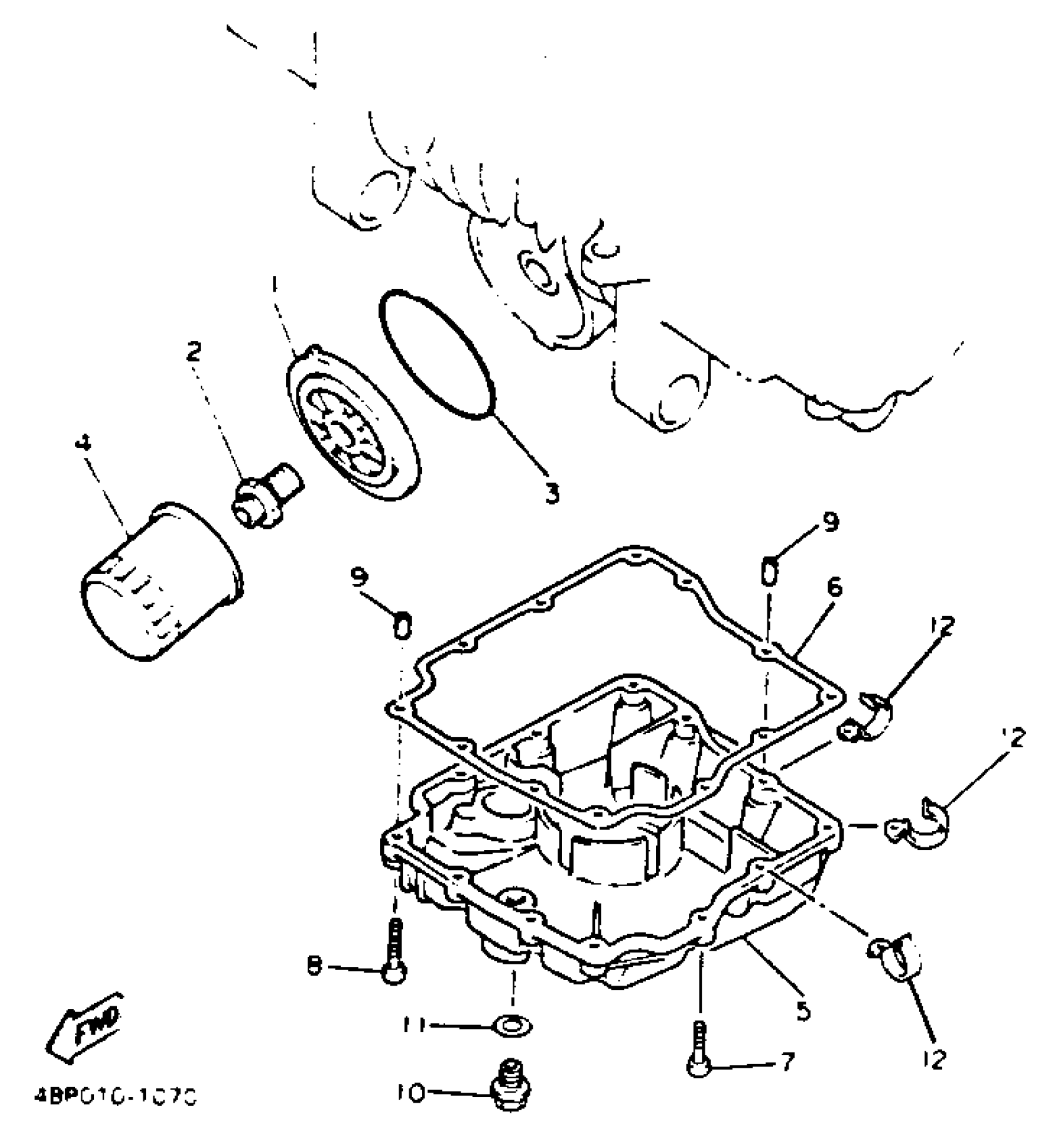

Yamaha XJ600SDC (SECA II CA) 1992 OIL CLEANER Diagram

#

Description
Price

1

PLATE, ADAPTOR

3TJ-13461-00-00

$50.05

2

BOLT, UNION

90401-20007-00

$14.62

3

O-RING(1KF)

93210-87723-00

Unavailable

4

ELEMENT ASSY, OIL CLEANER

3FV-13440-31-00

$16.61

5

COVER, STRAINER

4BR-13417-00-00

Unavailable

6

GASKET, STRAINER COVER

4BR-13414-00-00

Unavailable

7

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.76

8

BOLT,SOCKET

91317-06040-00

$3.28

9

PIN, DOWEL(3XW)

91808-16023-00

$5.37

10

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$2.52

11

GASKET

214-11198-01-00

$2.58

12

CLAMP (4G0)

90462-08078-00

$4.89
