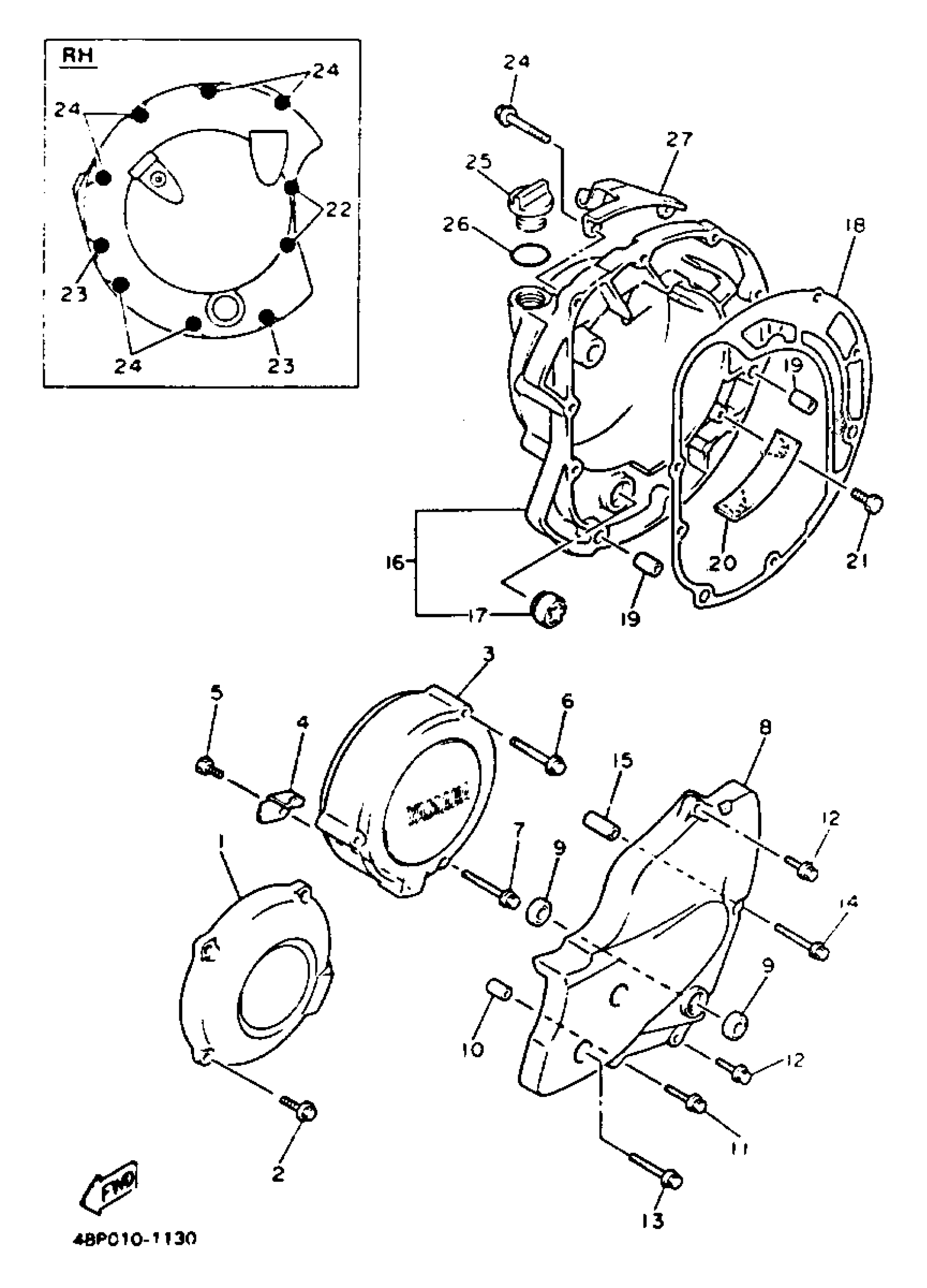

Yamaha XJ600SDC (SECA II CA) 1992 CRANKCASE COVER 1 Diagram

#

Description
Price

1

CRANKCASE COVER ASSEMBLY 1

4BR-15410-00-00

Unavailable

2

. BOLT, FLANGE

95027-06020-00

$1.49

3

COVER, GENERATOR

4BR-15415-00-00

Unavailable

4

CLAMP 2

4BR-15484-00-00

Unavailable

5

BOLT,SOCKET

91317-06010-00

$6.59

6

BOLT, SMALL FLANGE

95027-06065-00

$2.36

7

BOLT, SMALL FLANGE

95027-06065-00

$2.36

8

COVER, CRANKCASE 1

4BR-15411-01-00

Unavailable

9

OIL SEAL

93109-12075-00

$7.95

10

PIN, DOWEL(3VD)

99530-10114-00

$2.03

11

BOLT, FLANGE(4BH)

95024-06035-00

$6.57

12

BOLT, FLANGE(4AS)

95024-06030-00

$5.87

13

BOLT, SMALL FLANGE

95027-06055-00

Unavailable

14

BOLT, SMALL FLANGE

95027-06065-00

$2.36

15

COLLAR(4BR)

90387-064Y1-00

$0.33

16

CRANKCASE COVER ASSEMBLY 2

4BR-W1543-00-00

Unavailable

17

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable

18

GASKET, CRANKCASE COVER 2

4BR-15461-00-00

Unavailable

19

PIN, DOWEL(3VD)

99530-10114-00

$2.03

20

PLATE, OIL GUIDE

49A-15412-00-00

Unavailable

21

BOLT, HEXAGON

97017-06012-00

Unavailable

22

BOLT, SMALL FLANGE

95027-06070-00

Unavailable

23

BOLT, SMALL FLANGE

95027-06040-00

Unavailable

24

BOLT, SMALL FLANGE

95027-06030-00

Unavailable

25

PLUG, OIL LEVEL

BAT-15362-00-00

Unavailable

26

O-RING(1KT)

93210-27778-00

Unavailable

27

HOLDER, CLUTCH CABLE

4BR-15441-00-00

Unavailable
