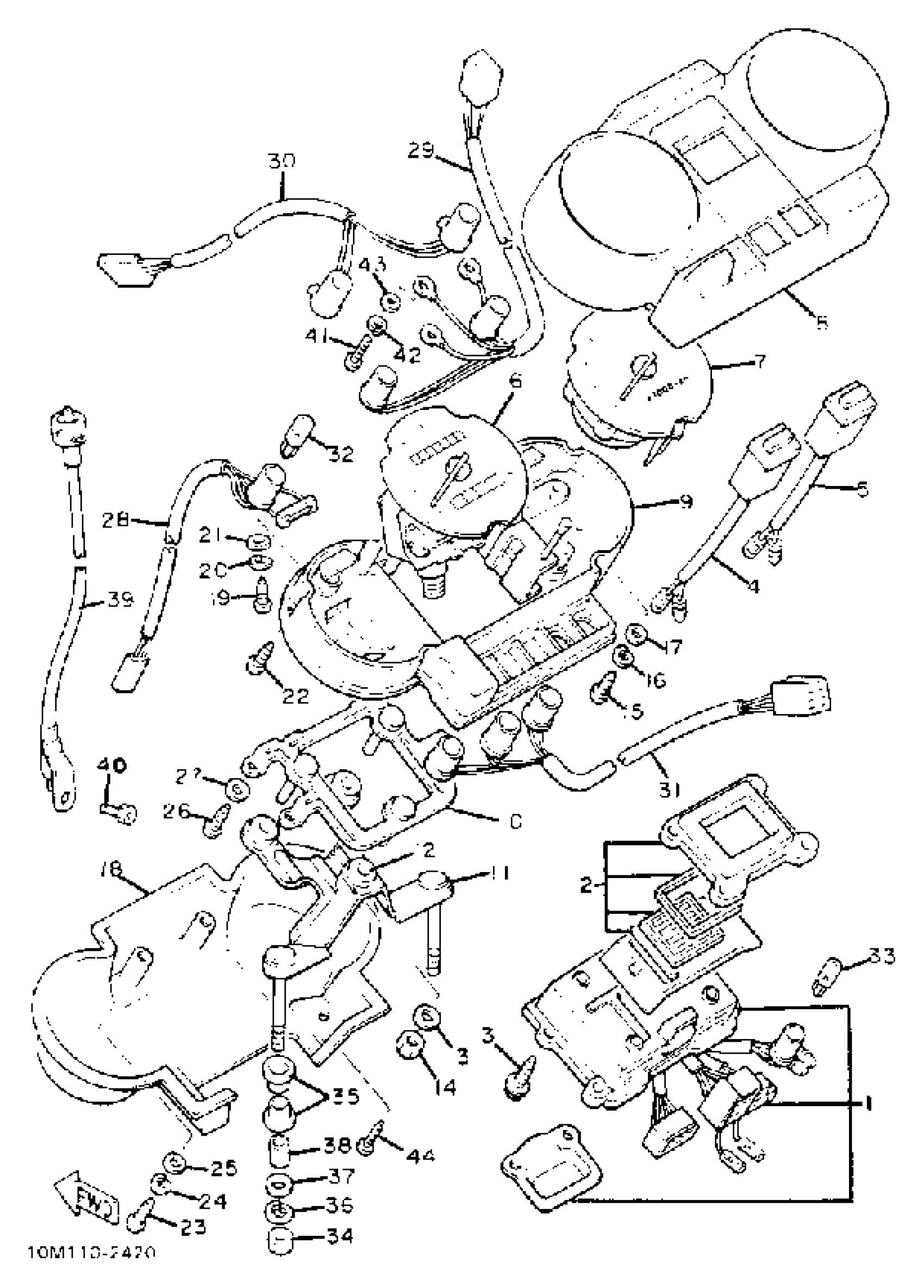

Find the part on the Speedometer Tachometer diagram for your 1982 Yamaha XJ1100J (XJ1100J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XJ1100J (XJ1100J) Speedometer Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRINT BOARD ASSEMBLY

(10M-W8352-00-00)

1
Out of stock

2

LCD UNIT SET

(10M-W8351-01-00)

1
Out of stock

3

SCREW, WITH WASHER

(90159-04055-00)

1
Out of stock

4

SWITCH, METER CNTRL (5G2-8358J-20)

5G2-8358J-10-00

1
Out of stock

5

SWITCH, METER CNTRL (5G2-8358J-20)

5G2-8358J-10-00

1
Out of stock

6

SPEEDOMETER ASSEMBLY

(10M-83570-A0-00)

1
Out of stock

7

TACHOMETER ASSEMBLY

(10M-83540-00-00)

1
Out of stock

8

COVER, METER

10M-83559-00-00

1
Out of stock

9

CASE, INNER

10M-8353H-00-00

1
Out of stock

10

BRACKET, METER

10M-83519-50-00

1
Out of stock

11

BRACKET, METER

10M-83519-00-00

1
Out of stock

12

DAMPER

4X7-83523-00-00

1

$10.80

In stock

13

WASHER PLATE 803835240000

90201-05032-00

—

$6.71

In stock

14

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

15

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

16

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

17

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

18

COVER, METER 2

10M-83579-00-00

1
Out of stock

19

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

20

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

21

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

22

SCREW, OVAL HEAD TAPPING

97780-40112-00

1
Out of stock

23

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

24

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

25

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

26

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

27

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

28

. SOCKET CORD ASSY

10M-83520-20-00

1
Out of stock

29

SOCKET CORD ASSEMBLY

(10M-83520-10-00)

1
Out of stock

30

SOCKET CORD ASSEMBLY

(10M-83509-10-00)

1
Out of stock

31

SOCKET CORD ASSEMBLY

(10M-83509-00-00)

1
Out of stock

32

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

33

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

34

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

35

DAMPER, METER BRACKET

584-83541-00-00

—
Out of stock

36

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

37

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

38

COLLAR (877)

90387-06249-00

—
Out of stock

39

SPEEDOMETER CABLE

10M-83550-00-00

1
Out of stock

40

SCREW, HEXAGON

90153-06004-00

1
Out of stock

41

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

42

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

43

WASHER

(92901-03600-00)

1
Out of stock

44

SCREW, TAPPING (10M)

90164-04009-00

—
Out of stock
