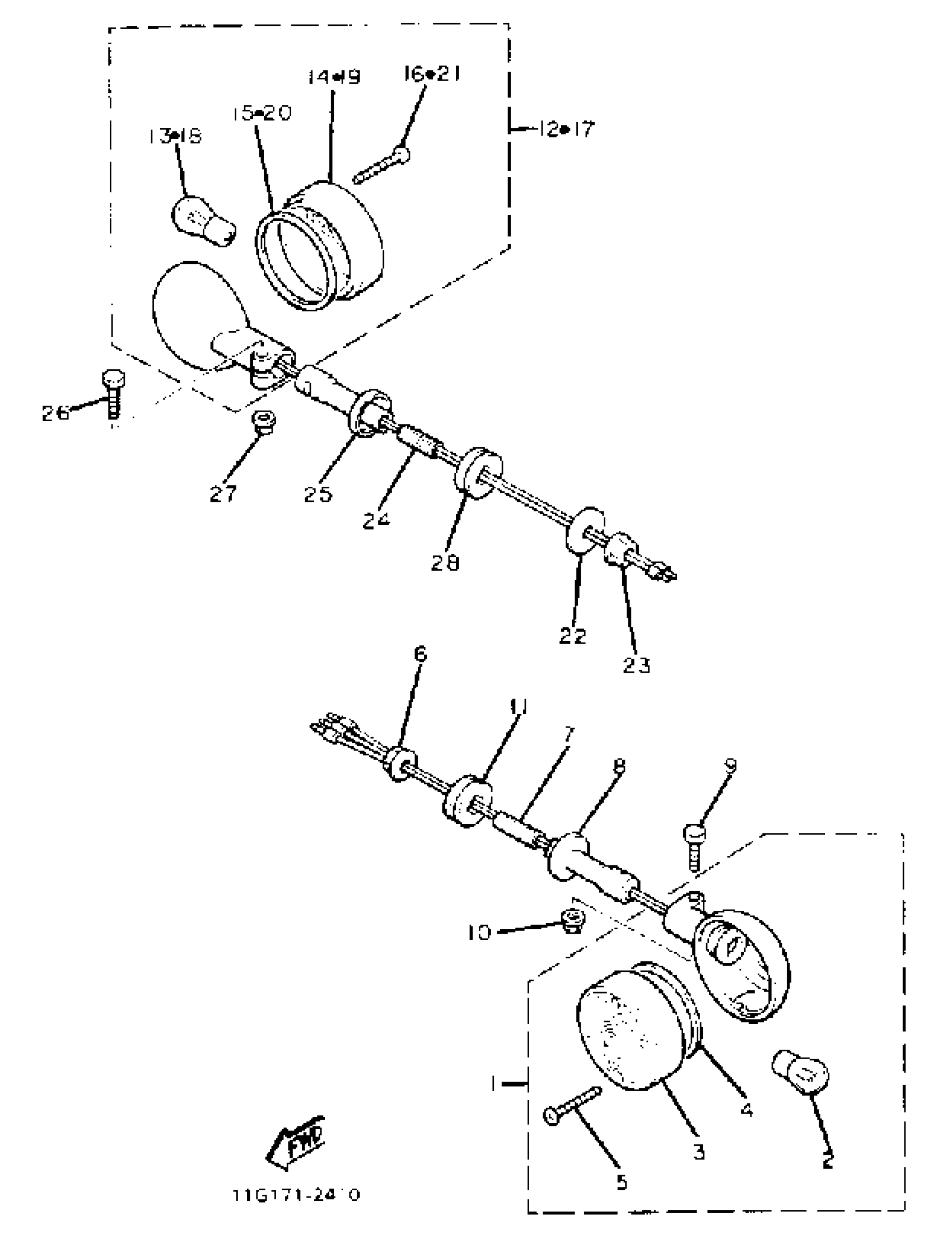

Yamaha XJ1100J (XJ1100J) 1982 FLASHER LIGHT Diagram

#

Description
Price

1

FRT FLSHR LITE ASSEMBLYLIGHT ASSEMBLY 1

10M-83310-K0-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

3

LENS, FLASHER

4H7-83312-00-00

Unavailable

4

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

5

SCREW, PAN HEAD

98502-03530-00

$2.31

6

NUT(3GG)

90179-12588-00

$5.25

7

BLT, FLSHR STY FTNG

10M-83325-00-00

Unavailable

8

STAY, FLASHER 2

4X7-83328-00-00

Unavailable

9

BOLT, HEXAGON

97017-06030-00

$2.80

10

NUT, FLANGE(7NB)

95780-06500-00

$1.88

11

DAMPER, FLASHER (371)

341-83321-01-00

$6.08

12

REAR FLASHER LIGHT ASSY

5K5-83330-K0-00

Unavailable

13

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

14

LENS, FLASHER

4H7-83312-00-00

Unavailable

15

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

16

SCREW, PAN HEAD

98502-03530-00

$2.31

17

REAR FLASHER LIGHT ASSY

5K5-83330-K0-00

Unavailable

18

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

19

LENS, FLASHER

4H7-83312-00-00

Unavailable

20

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

21

SCREW, PAN HEAD

98502-03530-00

$2.31

22

. WASHER, SPEC''L SHAP

90209-12222-00

Unavailable

23

NUT, HEXAGON

90170-12292-00

Unavailable

24

BLT, FLSHR STY FTNG

4X7-83325-00-00

Unavailable

25

STAY, FLASHER 2

4X7-83328-00-00

Unavailable

26

BOLT, HEXAGON

97017-06030-00

$2.80

27

NUT, FLANGE(7NB)

95780-06500-00

$1.88

28

DAMPER, FLASHER

1E6-83321-00-00

Unavailable
