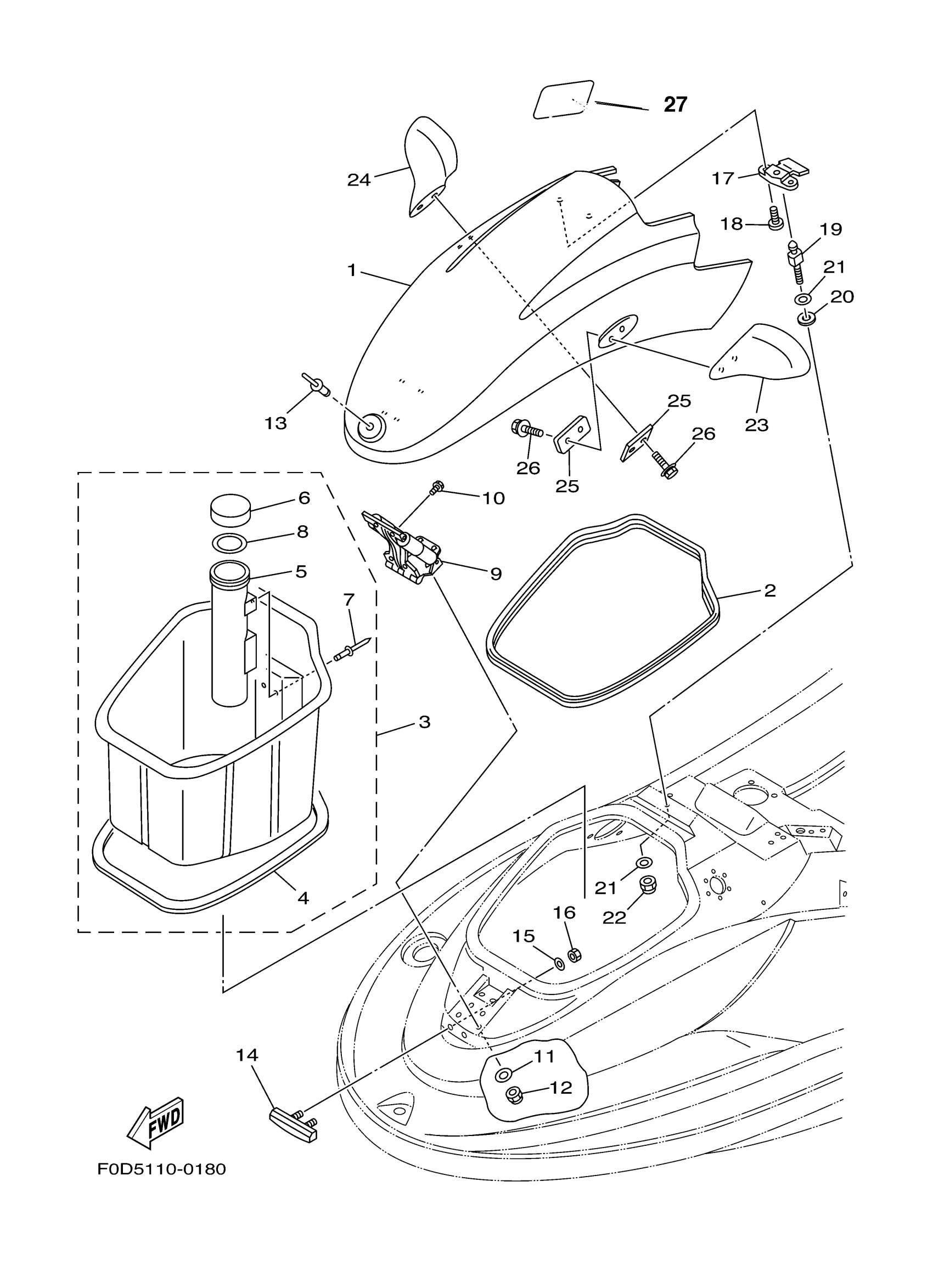

Yamaha XA800Y (XL800) F0P1 2000 ENGINE HATCH 2 Diagram

#

Description
Price

1

LID, ENGINE ROOM

F0D-U517B-00-P3

Unavailable

2

PACKING 3

F0D-U266B-01-00

Unavailable

3

BOWLOCKER ASSY

F0D-U475A-00-00

Unavailable

4

PACKING 4

GJ3-U266C-31-00

Unavailable

5

. BOX, FIRE EXTINGUISHER

GP7-U5983-00-00

Unavailable

6

. CAP, CASE

EW2-U5912-01-00

Unavailable

7

RIVET, 1

F3J-U516R-00-00

$2.36

8

PACKING, CASE

EW2-U5913-01-00

Unavailable

9

HINGE ASSY.

F0D-6515A-04-00

Unavailable

10

BOLT, WITH WASHER

90119-06966-00

Unavailable

11

WASHER, PLATE

90201-06020-00

$5.86

12

NUT, NYLON

9572R-06300-00

$2.80

13

RIVET, BLIND

90267-489U8-00

$0.99

14

PRATE, HINGE LID

F0D-6518E-01-00

Unavailable

15

WASHER

9299R-06200-00

$0.43

16

NUT, NYLON

9572R-06300-00

$2.80

17

LOCK, LID

F0D-6517C-04-00

Unavailable

18

SCREW, BIND(J39)

98980-06014-00

Unavailable

19

PIN

F0D-63774-01-00

$48.47

20

DAMPER 2

F0D-6515E-00-00

$6.36

21

WASHER

9299R-08200-00

Unavailable

22

NUT, NYLON (6J8)

95780-08300-00

$10.55

23

MIRROR LH (BLACK)

F0V-U596B-04-00

$42.28

24

MIRROR RH (BLACK)

F0V-U596C-04-00

$60.59

25

PLATE

F0D-U5646-00-00

Unavailable

26

BOLT, WITH WASHER

90119-08841-00

$1.01

27

TRIM, HATCH 2

F0D-65116-00-00

Unavailable
