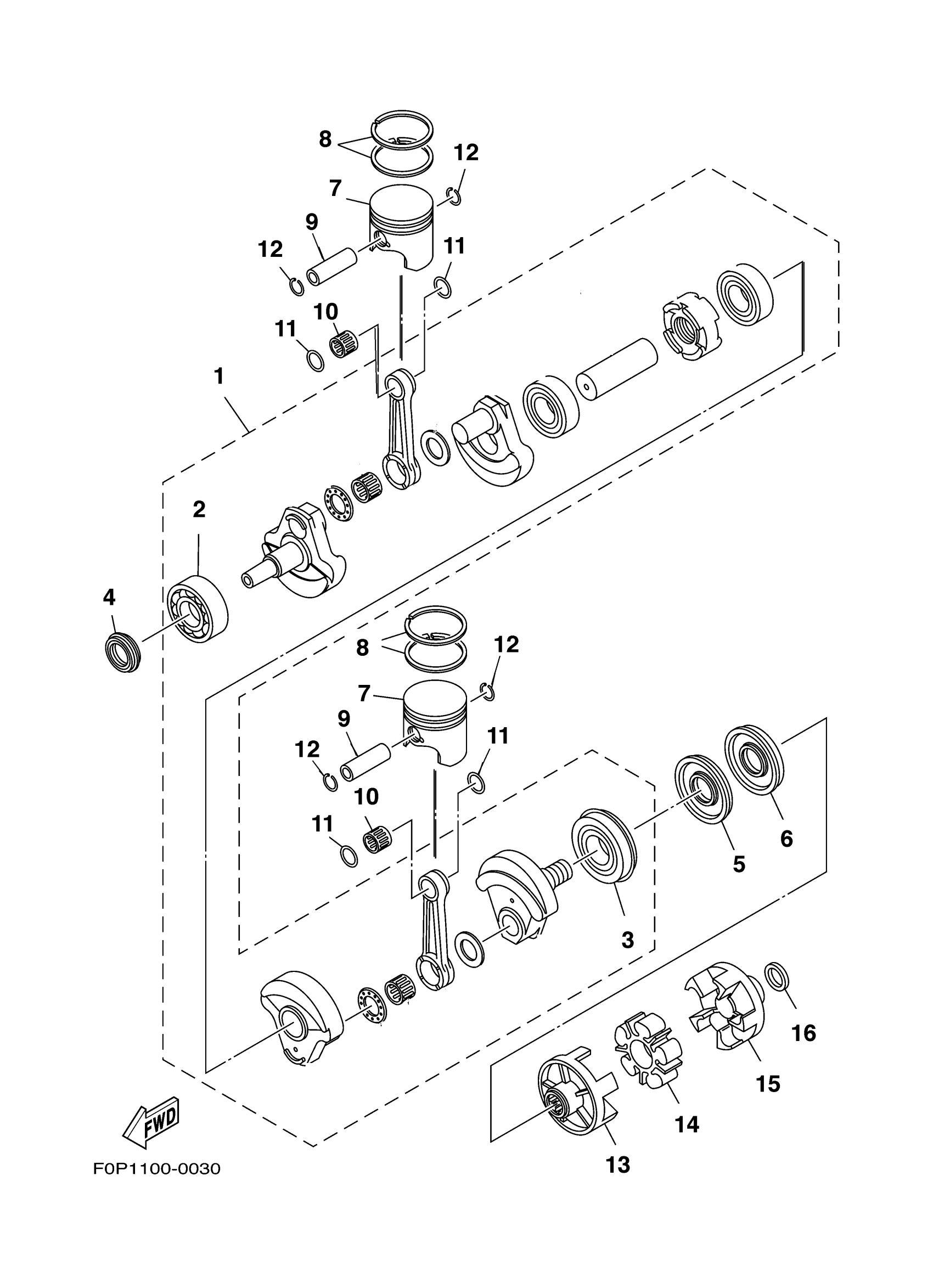

Yamaha XA800Y (XL800) F0P1 2000 CRANKSHAFT. PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

66E-11400-00-00

Unavailable

2

. BEARING

93305-307U0-00

$213.62

3

. BEARING

93306-308U1-00

$104.53

4

. OIL SEAL

93103-35M03-00

Unavailable

5

OIL SEAL

93101-34001-00

$21.10

6

OIL SEAL

93101-34002-00

$21.10

7

PISTON (STD, RED)

66E-11631-01-A0

$172.71

7

PISTON (STD, ORANGE)

66E-11631-01-B0

$180.29

7

PISTON (STD, GREEN)

66E-11631-01-C0

Unavailable

7

PISTON (STD, PURPLE)

66E-11631-01-D0

$172.71

8

PISTON RING SET (STD)

66E-11603-01-00

$46.30

9

PIN, PISTON

60T-11633-00-00

$34.49

10

BEARING

93310-422U2-00

$27.41

11

WASHER, PLATE

90201-22M04-00

$5.75

12

CLIP, PISTON PIN

66E-11634-00-00

$0.92

13

FLANGE, COUPLING

66E-45813-10-94

$107.56

14

RUBBER SHAFT COUPLING

66E-4581J-00-00

$58.49

15

FLANGE, COUPLING

66E-45813-10-94

$107.56

16

WASHER, PLATE

90201-27008-00

Unavailable
