2002 Yamaha XA1200AA F0V3 Steering 2 Diagram

← All diagrams

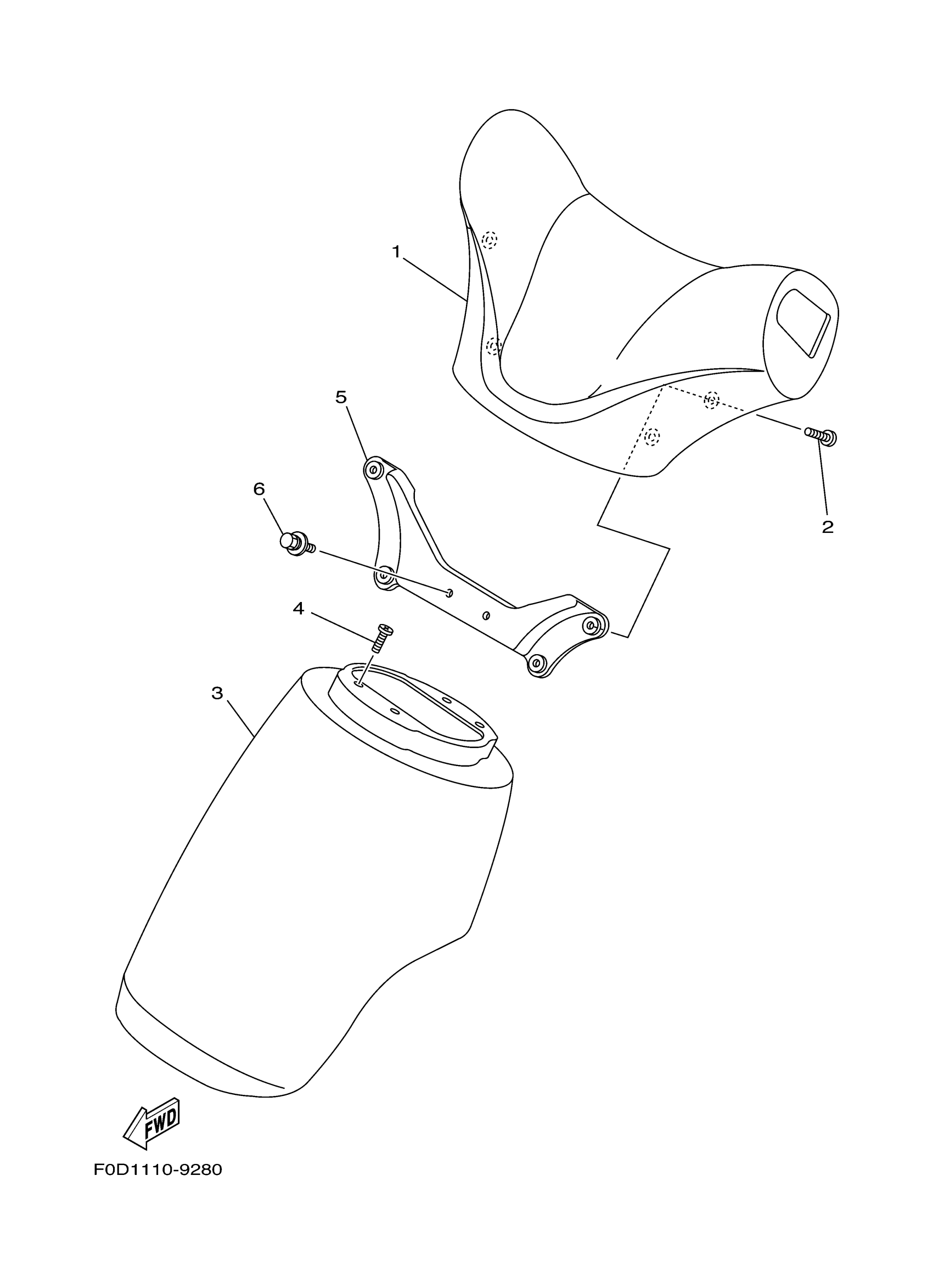

Find the part on the Steering 2 diagram for your 2002 Yamaha XA1200AA F0V3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha XA1200AA F0V3 Steering 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PAD, STEERING 1

F0D-U143D-00-00

1
Out of stock

2

SCREW

90149-06910-00

1

$6.89

In stock

3

PAD, STEERING 2

F0D-U143E-01-00

1
Out of stock

4

SCREW, BIND(J39)

98980-06014-00

1

$5.66

In stock

5

FIX, STEERING PAD

F0D-U142K-00-00

1

$104.60

In stock

6

BOLT, WITH WASHER

90119-069US-00

1

$2.85

In stock
