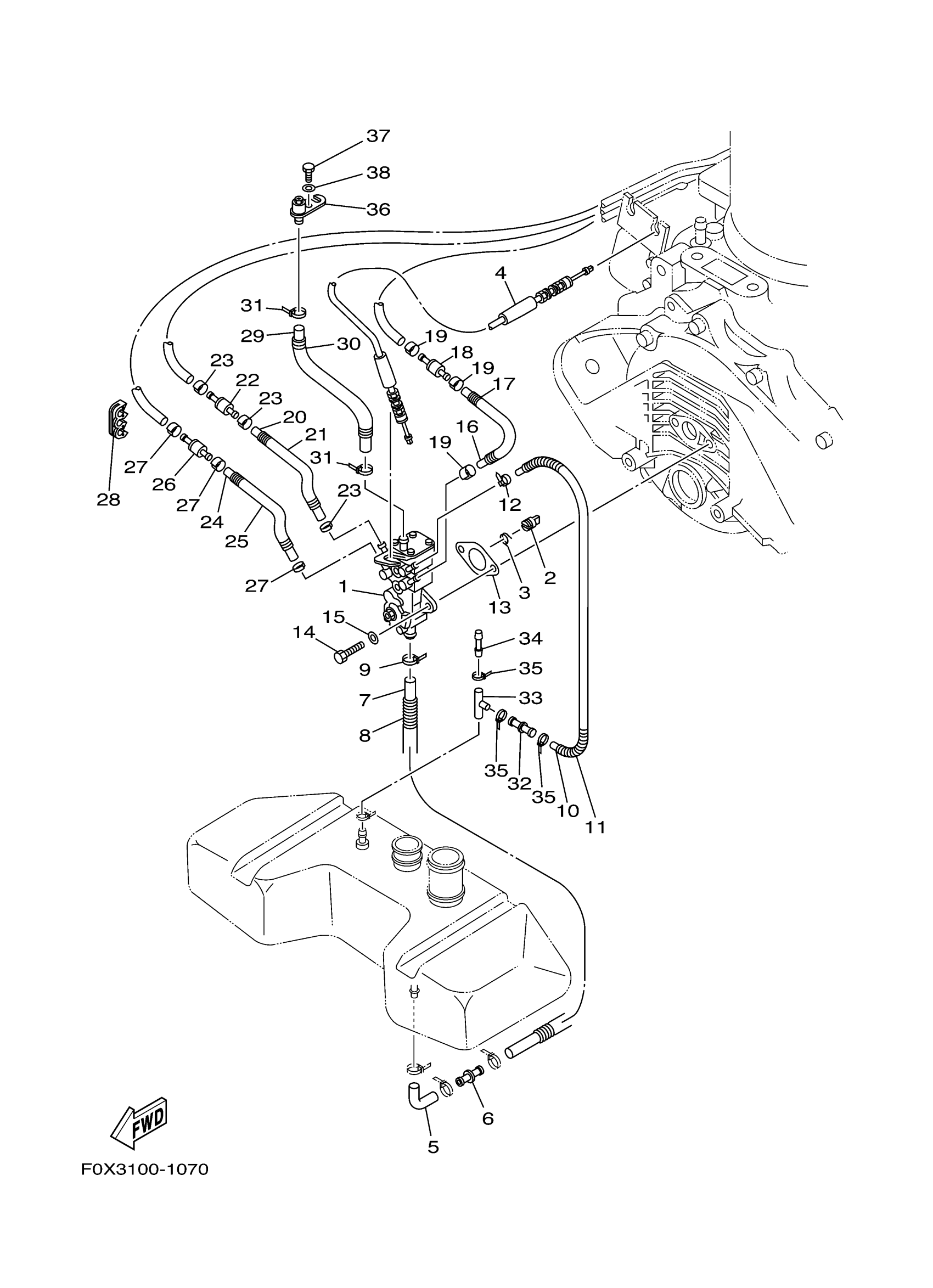

Yamaha XA1200AA F0V3 2002 OIL PUMP Diagram

#

Description
Price

1

OIL INJECTION PUMP ASSY

66V-13200-00-00

$468.17

2

JOINT

65U-13132-00-00

$48.47

3

SPRING

66E-13469-00-00

Unavailable

4

PUMP CABLE ASSY

66V-26320-00-00

$80.29

5

PIPE, OIL 1

66V-13416-01-00

$28.77

6

CONNECTION

66V-51142-00-00

$3.18

7

HOSE (L700)

90445-117F2-00

$22.86

8

HOSE

90446-17ME2-00

Unavailable

9

CLAMP

90465-10098-00

$1.68

10

HOSE (L390)

90445-07M90-00

$6.59

11

HOSE

90446-10ME3-00

$4.60

12

CLIP

90468-02001-00

$2.02

13

GASKET, PUMP CASE

63M-13116-00-00

$2.80

14

BOLT(7U8)

97080-06020-00

$3.63

15

WASHER, PLAIN (646)

92990-06600-00

$1.84

16

HOSE (L110)

90445-07007-00

$27.99

17

HOSE

90446-10M86-00

$3.93

18

VALVE, CHECK

67X-13183-00-00

Unavailable

19

CLIP

90468-02001-00

$2.02

20

HOSE (L110)

90445-07007-00

$27.99

21

HOSE

90446-10M86-00

$3.93

22

VALVE, CHECK

67X-13183-00-00

Unavailable

23

CLIP

90468-02001-00

$2.02

24

HOSE (L110)

90445-07007-00

$27.99

25

HOSE

90446-10M86-00

$3.93

26

VALVE, CHECK

67X-13183-00-00

Unavailable

27

CLIP

90468-02001-00

$2.02

28

CLAMP

90464-07M05-00

$2.80

29

PIPE 4

66V-24314-00-00

$7.27

30

HOSE (L120)

90446-17ME8-00

Unavailable

31

CLAMP

90465-10098-00

$1.68

32

JOINT

63M-13132-00-00

$13.99

33

PIPE, JOINT 3

63M-24378-00-00

$5.91

34

PIPE, JOINT 1

6G8-24376-00-00

$5.91

35

CLAMP

90465-10098-00

$1.68

36

BOLT, BREATHER

66V-13185-00-00

Unavailable

37

BOLT(GH1)

97080-06012-00

$2.56

38

WASHER, PLAIN (646)

92990-06600-00

$1.84
