2002 Yamaha XA1200AA F0V3 Engine Hatch 2 Diagram

← All diagrams

Find the part on the Engine Hatch 2 diagram for your 2002 Yamaha XA1200AA F0V3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

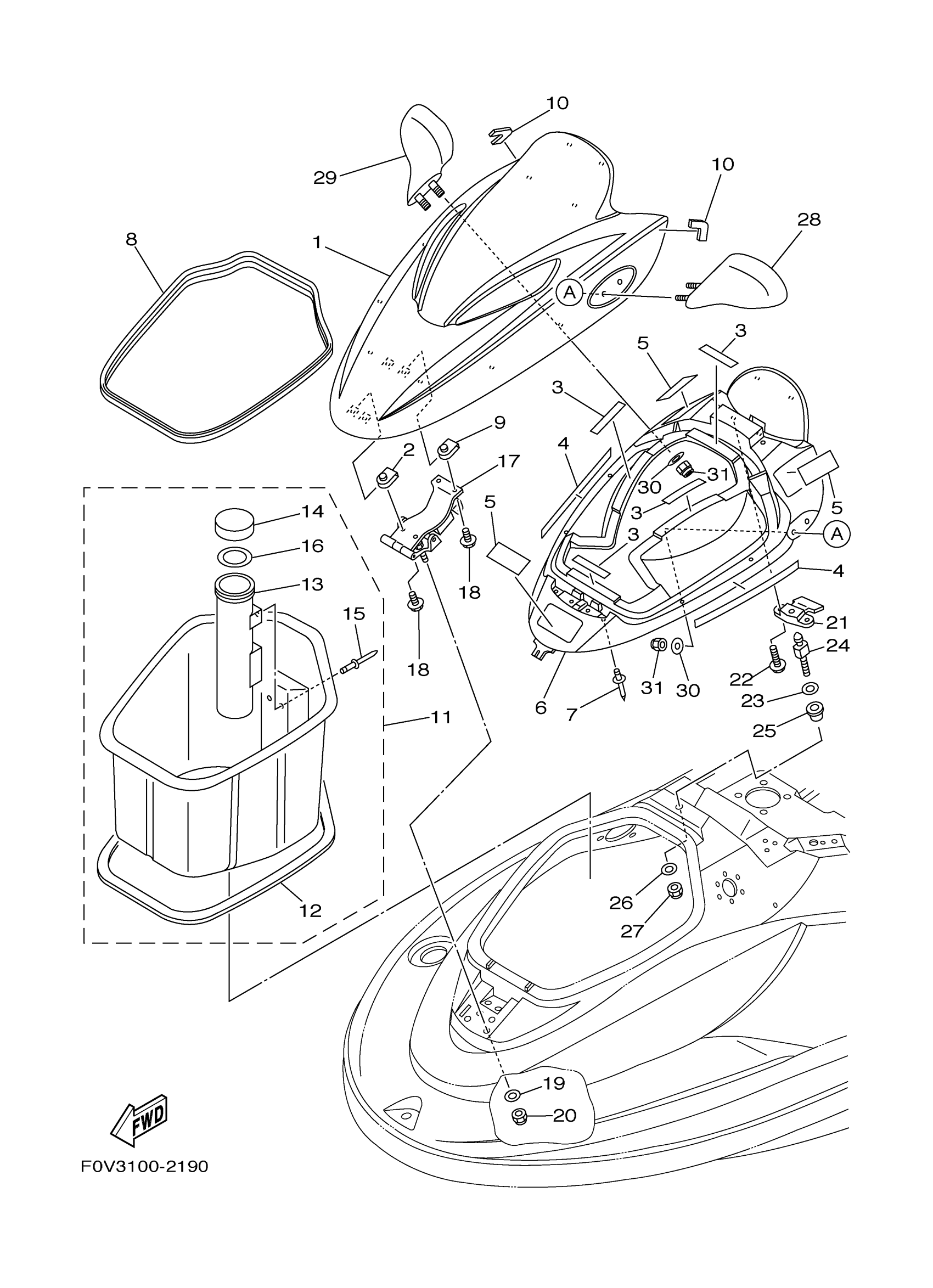

2002 Yamaha XA1200AA F0V3 Engine Hatch 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LID,ENG.HATCH(DARK BLUE MET.)

F0V-U517B-19-P0

1
Out of stock

2

NUT, SPRING(GJ3)

90183-06902-00

1

$9.14

In stock

3

TAPE, FITTING

F0V-U3635-00-00

1
Out of stock

4

TAPE, FITTING

F1X-U3635-00-00

1
Out of stock

5

TAPE, FITTING

F0V-U3635-20-00

1
Out of stock

6

VENTILATOR COVER C (BLACK)

F0V-U2103-11-00

1
Out of stock

7

RIVET, BLIND

90267-48809-00

1

$2.38

In stock

8

PACKING 3

F0V-U266B-00-00

1
Out of stock

9

NUT, SPRING(GJ3)

90183-06902-00

1

$9.14

In stock

10

PAD, HATCH 1

F0V-U517M-00-00

1
Out of stock

11

BOWLOCKER ASSY

F0D-U475A-00-00

1
Out of stock

12

PACKING 4

GJ3-U266C-31-00

1
Out of stock

13

. BOX, FIRE EXTINGUISHER

GP7-U5983-00-00

1
Out of stock

14

. CAP, CASE

EW2-U5912-01-00

1
Out of stock

15

RIVET, 1

F3J-U516R-00-00

1

$2.69

In stock

16

PACKING, CASE

EW2-U5913-01-00

1
Out of stock

17

HINGE ASSY.

F0V-6515A-01-00

1

$306.99

In stock

18

BOLT,WITH WASHER

90119-06890-00

1

$1.23

In stock

19

WASHER, PLATE

90201-06020-00

—

$6.28

In stock

20

NUT, NYLON

9572R-06300-00

1

$3.15

In stock

21

LOCK, LID

F0D-6517C-04-00

1
Out of stock

22

BOLT, WITH WASHER

90119-06830-00

—

$1.22

In stock

23

DAMPER 2

F0V-U515E-00-00

1
Out of stock

24

PIN

F0D-63774-01-00

1

$48.99

In stock

25

COLLAR

90387-08802-00

1
Out of stock

26

WASHER

9299R-08200-00

—

$1.95

In stock

27

NUT, NYLON (6J8)

95780-08300-00

1

$10.51

In stock

28

MIRROR LH (BLACK)

F0V-U596B-04-00

1

$43.06

In stock

29

MIRROR RH (BLACK)

F0V-U596C-04-00

1

$61.52

In stock

30

WASHER

9299R-08200-00

—

$1.95

In stock

31

NUT, NYLON (6J8)

95780-08300-00

1

$10.51

In stock
