2002 Yamaha XA1200AA F0V3 Engine Hatch 1 Diagram

← All diagrams

Find the part on the Engine Hatch 1 diagram for your 2002 Yamaha XA1200AA F0V3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

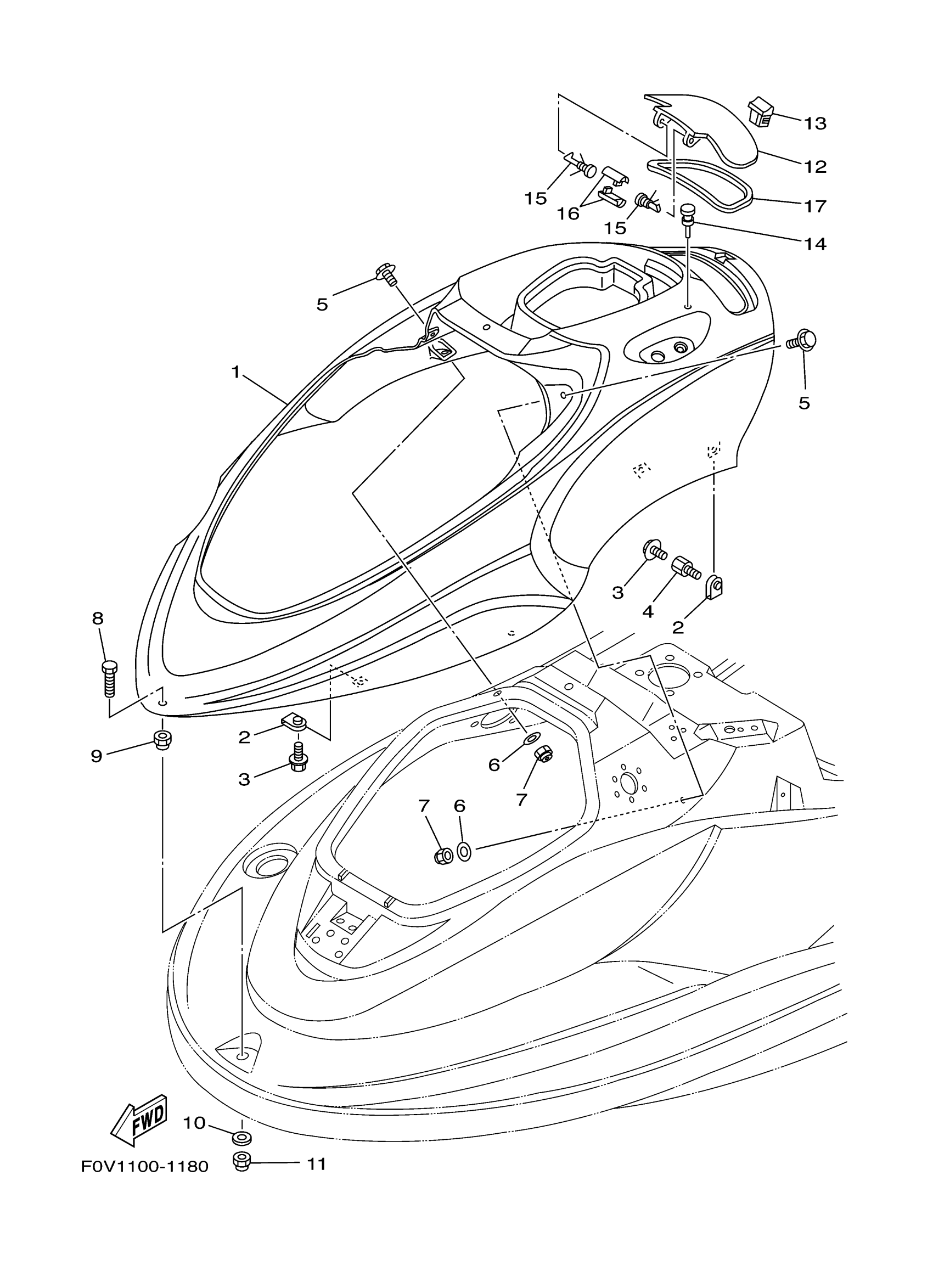

2002 Yamaha XA1200AA F0V3 Engine Hatch 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, ENG. HATCH(DARK BLUE)

F0V-U516N-19-P1

1
Out of stock

2

NUT, SPRING(GJ3)

90183-06902-00

1

$9.14

In stock

3

BOLT, WITH WASHER

90119-06827-00

1
Out of stock

4

NUT, JOINT

F0V-U7772-00-00

1
Out of stock

5

BOLT, WITH WASHER

90119-06803-00

1

$3.92

In stock

6

WASHER

9299R-06200-00

1

$0.45

In stock

7

NUT, NYLON

9572R-06300-00

1

$3.15

In stock

8

BOLT

9708R-06030-00

1
Out of stock

9

NUT

9538R-06700-00

1
Out of stock

10

WASHER

9299R-06200-00

1

$0.45

In stock

11

NUT, NYLON

9572R-06300-00

1

$3.15

In stock

12

LID HATCH(DARK BLUE MET.)

F0V-U517H-19-P0

1
Out of stock

13

LOCK

F0D-62875-00-00

1

$27.49

In stock

14

. PLUG

90605-502U2-00

1

$2.46

In stock

15

PIN, HINGE

F0D-6517R-00-00

1
Out of stock

16

JOINT, HINGE

F0D-6517T-00-00

1
Out of stock

17

PACKING CASE

F0D-U519D-01-00

1
Out of stock
